Polaris RZR XP 1000 Service Manual

3
3.63
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

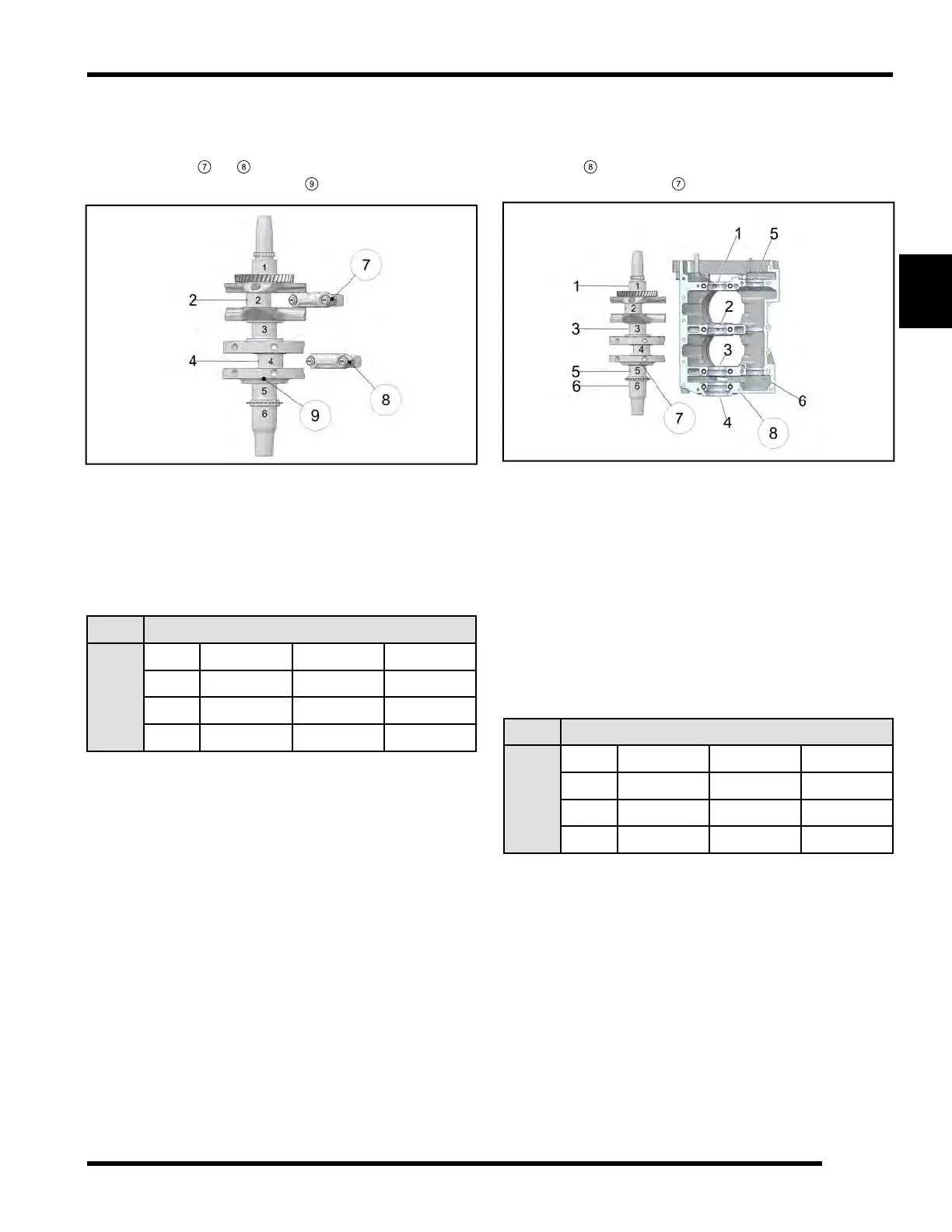

Connecting Rod Bearing Selection
In order to select the proper bearing for the connecting
rods, you must reference the number on each
connecting rod
7
&
8
and match that up with the rod
journal letters on the crankshaft
9
.
In this example, you would use the number 2 as the
connecting rod code. You would use letters G and G as
the crankshaft codes (crank journals 2 and 4). Based off
the bearing selection chart, you would use a Green
bearing for each connecting rod
Bearing Selection Chart — Rod
Crankshaft
Rod
Code B G Y
1
Blue Blue Green
2 Blue Green Yellow
3 Green Yellow Yellow
Crankshaft Main Bearing Selection
In order to select the proper main bearings for the
crankshaft, you must reference the six numbers on the
crankcase
8
and match that up with the main journal
letters on the crankshaft
7
.
In this example, you would use the number 2 as the
crankcase codes (case journals 1, 2, 3, 4). You would
use letters G, Y, G, Y as the crankshaft codes (crank
journals 1, 3, 5 and 6). Based off the bearing selection
chart, you would use:
Green bearing for Main #1
Yellow bearing for Main #2
Green bearing for Main #3
Yellow bearing for Main #4
Bearing Selection Chart — Main Bearings
Crankshaft
Case
Code B G Y
1
Blue Blue Green
2 Blue Green Yellow
3 Green Yellow Yellow
ENGINE / COOLING SYSTEM
