Polaris RZR XP 1000 Service Manual

11.14
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

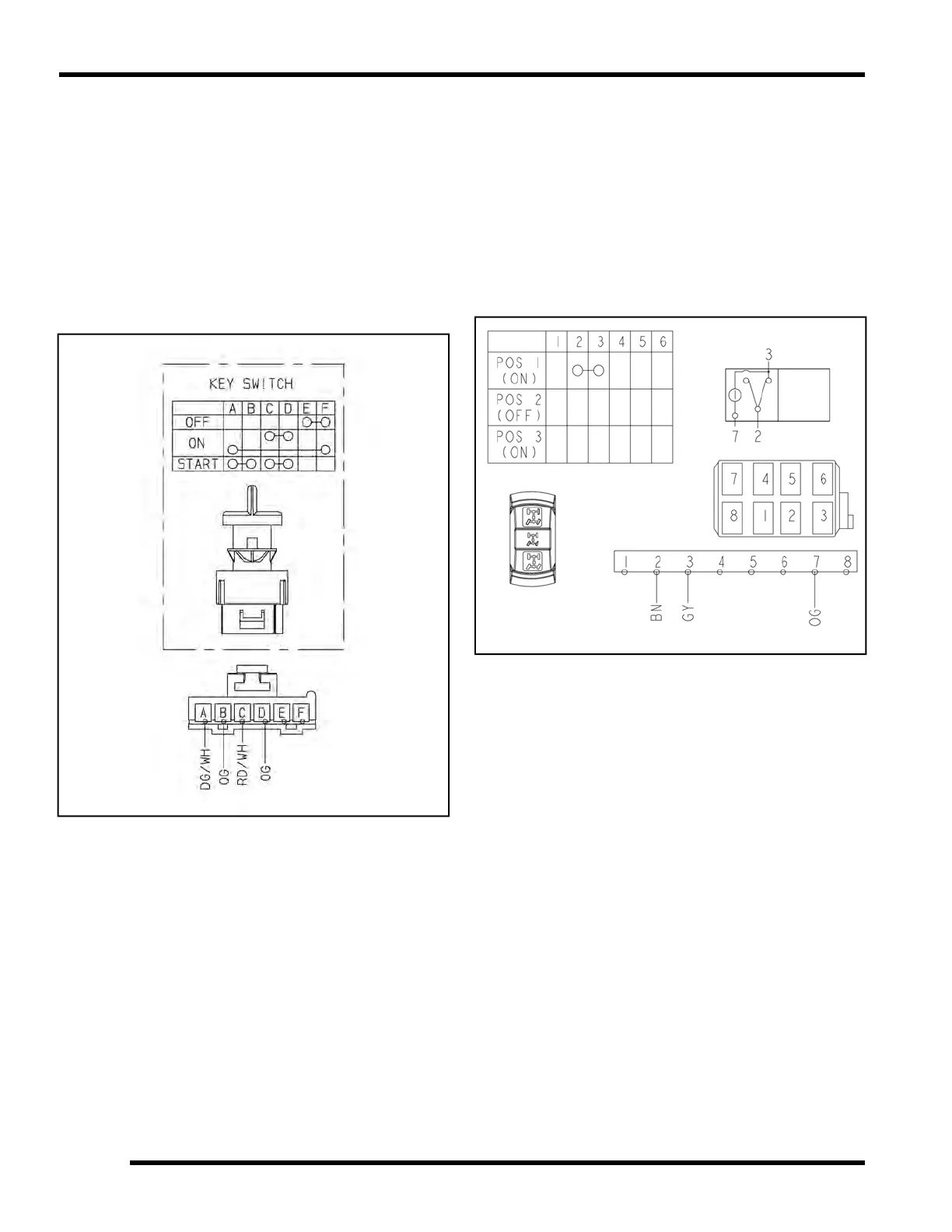

Ignition (Key) Switch
1. Disconnect the key switch harness by depressing
the connector lock and pulling on the connector. Do
not pull on the wiring.
2. Test between the 3 sets of outputs (OFF / ON /
START). If any of the tests fail, replace ignition
switch assembly.
• Turn the ignition key to ON. There should be
continuity between switch pins C and D.
• Turn the ignition key to START. There should be
continuity between switch pins A and B; C and D.
AWD / 2WD Switch (models without Turf)
1. Disconnect the AWD / 2WD switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 2 sets of outputs (AWD / 2WD). If
any of the tests fail, replace the switch assembly.
• Move the switch to AWD (ON). There should be
continuity between switch pins 2 and 3.
• Move the switch to 2WD (NONE / OFF). There
should be no continuity between any pins.
ELECTRICAL
