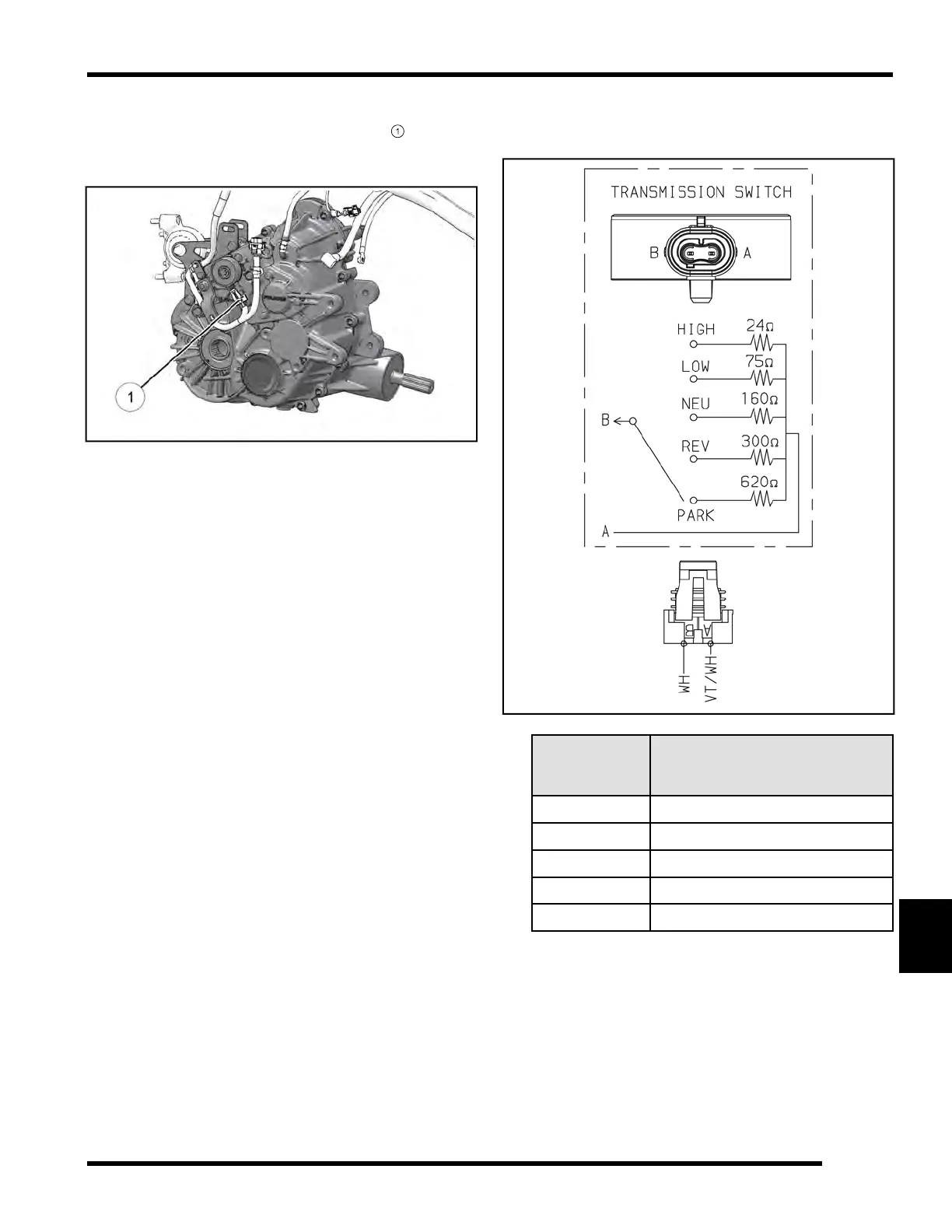

Transmission (Gear Position) Switch
1. The transmission (gear position) switch
1
is located
on the RH side of the transmission and can be
accessed through the RH wheel well area.
2. Disconnect the transmission switch harness by lifting
the connector lock and pulling on the connector. Do
not pull on the wiring.
3. Test the transmission switch continuity readings for
each gear position and compare to the specification
table below.
GEAR
POSITION
RESISTANCE VALUE
WHEN MEASURED AT
SWITCH TERMINALS A AND B
HIGH 24 Ω
LOW 75 Ω
NEU 160 Ω
REV 300 Ω
PARK 620 Ω
ELECTRICAL
