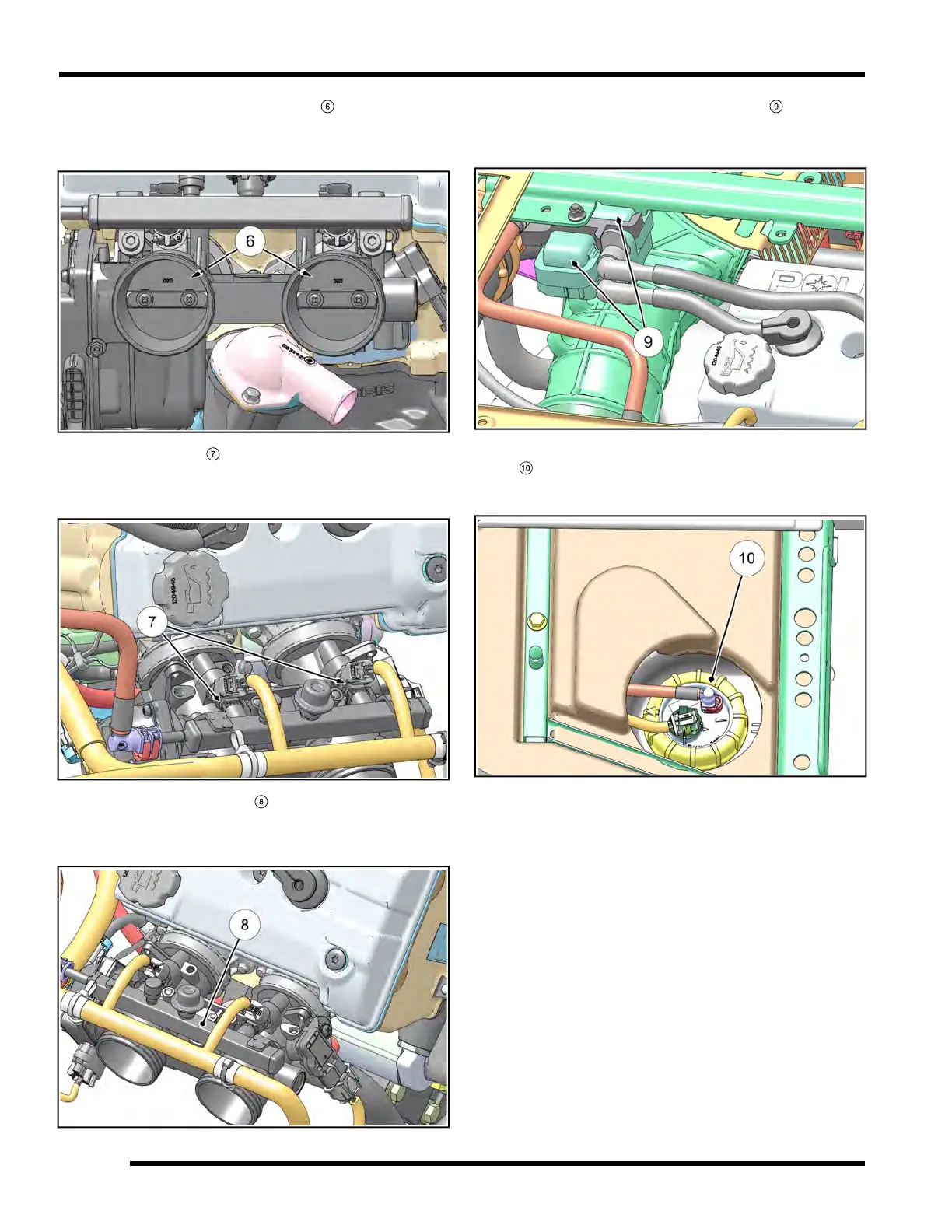

• Dual Throttle Body Assembly
6
Located between the air box assembly and rubber
cylinder head adapters.
• Fuel Injectors
7
Located on the top of the throttle body in the intake
track, retained on top by the fuel rail.
• Fuel Rail / Regulator
8
Located on the throttle body, on top of the fuel
injectors.
• Ignition Coil / High Tension Leads
9
Located behind the engine service panel on the
driver’s side of the vehicle.
• Fuel Pump / Regulator / Fuel Sender Assembly
10
Under the passenger seat.
