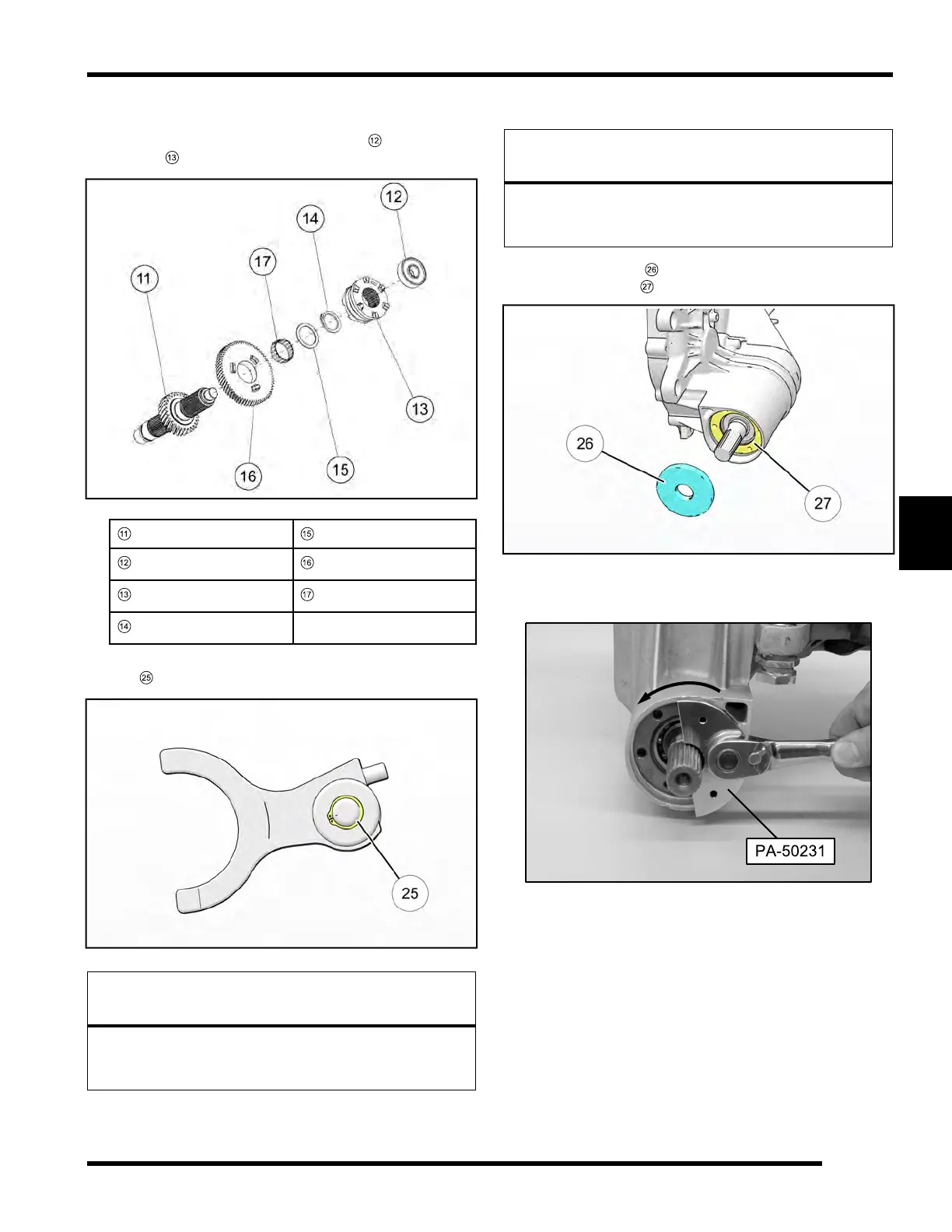

23.If necessary, disassemble the other end of the
reverse shaft. Remove the bearing , engagement dog
, retaining ring, washer, low gear
12
and needle
bearing
13
from the reverse shaft.
11
Reverse Shaft
15
Washer
12
Bearing
16
Low Gear
13
Engagement Dog
17
Needle Bearing
14
Snap Ring
24.To disassemble the shift shaft rail remove the snap
ring
25
from the end of the shift rail on either side.
CAUTION
Use caution when disassembling the shift rail. The
compressed springs on the shift rail may pop off
causing eye or face injury.
Snorkel Shaft Removal / Disassembly
CAUTION
The pinion shaft must be removed prior to removing the
snorkel shaft assembly. Failure to remove pinion shaft,
will result in damage to the snorkel shaft.
25.Extract the seal
26
from the snorkel shaft to access
the snorkel tube
27
for removal.
26.Using the Snorkel Tool (PA-50231), fully loosen the
snorkel tube.
