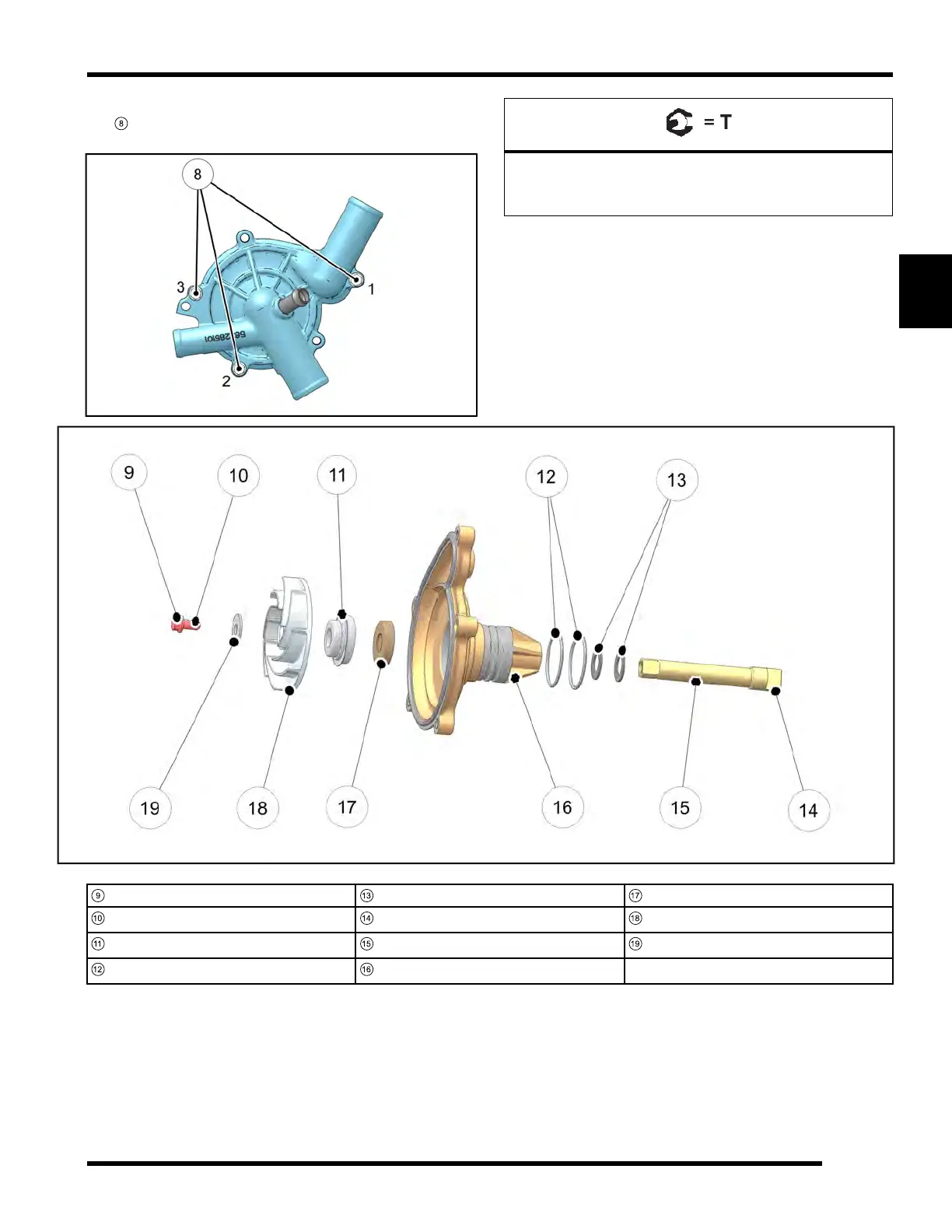

20. Install the water pump cover and three retaining bolts
8
. Torque bolts in sequence to specification.
Water Pump Cover Bolts:
7 ft-lb (10 Nm)
(Apply Loctite® 204™ to bolt threads)
21. Install two new water pump (O-rings) and lubricate
them with fresh engine oil.
22. Install water pump assembly into engine as shown in
the “Water Pump Installation” procedure.
9
Bolt
13
Washers
17
Oil Seal
10
Loctite 204
14
Drive Tab
18
Impeller
11
Mechanical Seal
15
Water Pump Shaft
19
Washer
12
O-Rings
16
Water Pump Housing
