11.4 MIDI Instrument Overview
Tracker Mini has a series of MIDI Instruments that can be assigned to steps
in a pattern. MIDI is dened per step, not per track, so MIDI and Audio
instruments can reside on the same track in the same pattern. A MIDI
instrument essentially denes the MIDI channel on which to transmit data
out and also gives access to the instruments MIDI parameters.
The Instrument parameters will reect the MIDI output options available
when selecting a step with a MIDI instrument congured. The Note is set in
the step and will be sent on the channel dened in the MIDI instrument. The
default velocity can also be set for MIDI out.
The same general process is followed when working with MIDI steps as
with audio steps. More details are covered in a prior section.
▌ CREATING A MIDI NOTE OUTPUT STEP
1. Press [1] to select the Pattern Mode page.
2. Select the target step to edit. Use (Up), (Down) to scroll top to bottom.
Press (Left), (Right) to select a track. Example Row 1 of Track 1. The
step should be highlighted with the green bounding box.
3. Press [Rec] to switch to recording mode. The step bounding box will
turn red and allow editing of the step.
4. Note: Hold [Note] + [+] / [-] to set a note for the step.
Also with the note already selected, use [+] / [-] to change it’s value.
5. Instrument: Hold [Instrument] + [+] / [-] or (Up) (Down) to change to an
instrument from the 51 to 61 list. Each one will represent a MIDI
channel where the step messages will be transmitted. The Instrument
will be indicated with an ‘M’ in the instrument slot for the step.
CC D
11
Velocity
127
CC A
74
CC B
5
CC C
7
Offset
0
CC F
117
CC E
64
MIDI Instrument Parameters 51. MIDI Channel 1
116
117
120 SOff
124
127
118
121 Rst
125
Prg Chg
119
123 NOff
122 Locl
126
Chan AT
52
53
56
60
63
54
57
61
64 Sust
55
59
58
62
65 Port
0 Bank
1 ModWh
4 Foot
8 Balnc
11 Exp
2 Brth
5 Glide
9
12
3
7 ChVol
6 Data
10 Pan
13
0 Bank
1 ModWh
4 Foot
8 Balnc
11 Exp
2 Brth
5 Glide
9
12
3
7 ChVol
6 Data
10 Pan
13
0 Bank
1 ModWh
4 Foot
8 Balnc
11 Exp
2 Brth
5 Glide
9
12
3
7 ChVol
6 Data
10 Pan
13
73
74
77
81
84 Porta
75
78
82
85
76
80
79
83
86
CC Outputs
Congure the 6 CC Outputs A-F,
used from a step FX1 or FX2
The instrument selection has a dedicated
button when working in the pattern.
Instruments 51-66 constitute the preset MIDI Instruments. Each of
these represents a MIDI channel 1-16. A MIDI instrument is tagged
with an ‘M’ in the step conguration.
The default velocity to send out can be applied as well as MIDI Latency compensation in the Offset parameter

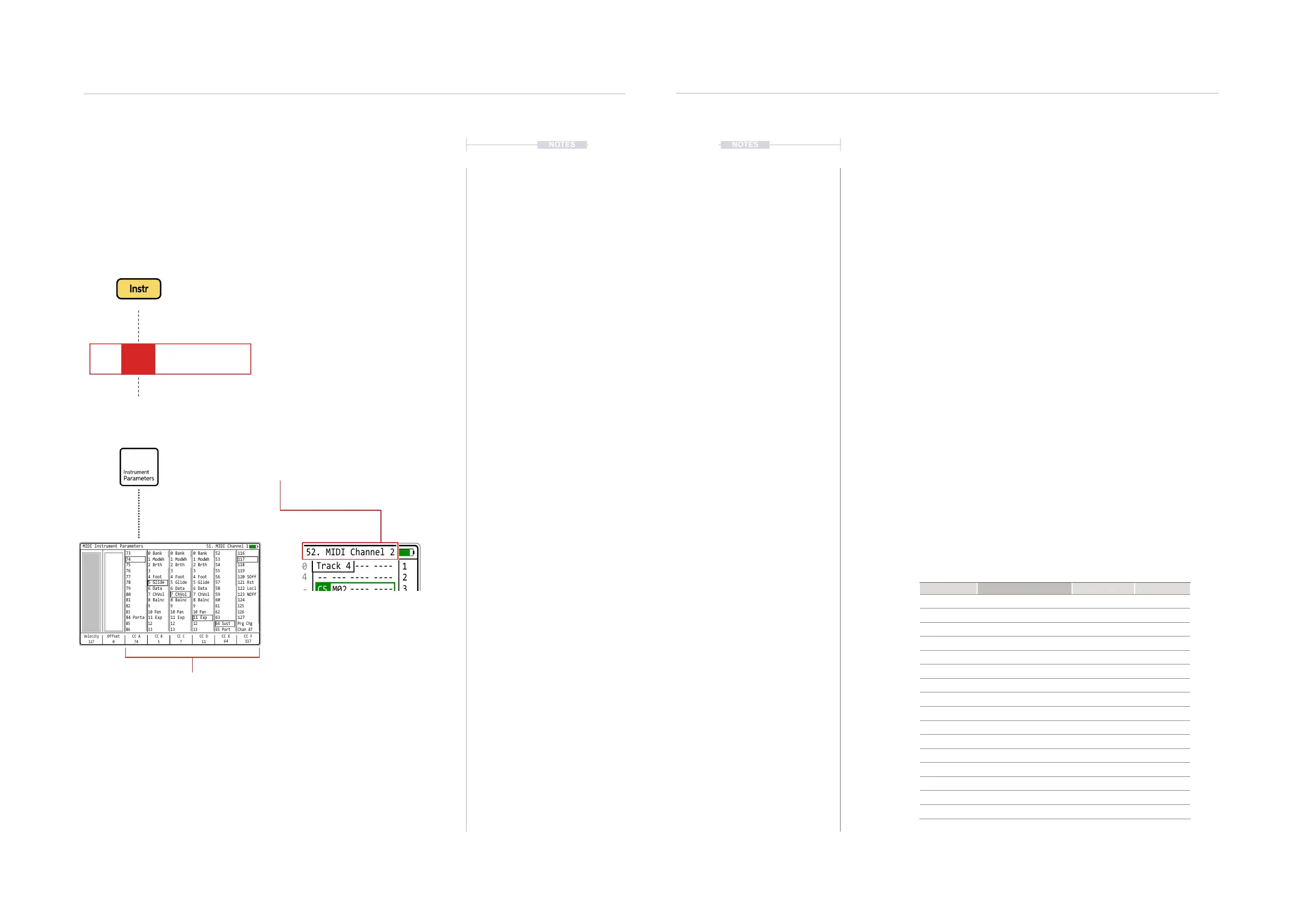

This illustration shows several MIDI instruments set for MIDI Channel 2. The notes values will be sent on the
dened channel to a connected device such as another synth or DAW. MIDI Out would need to be set correctly
in the Cong > MIDI parameters to transmit the note values over MIDI.
The MIDI transmitted will be based on the project tempo. Also remember that tempo FX can be applied to steps
which would also affect the MIDI output timing.
The instrument parameters are accessible directly and are specic
to the currently selected instrument and it’s MIDI Channel.
1
C5 M02
----
----
-- --- ---- ----
-- --- ---- ----
----
-- --- ---- ----
A 4
A 4
P-20
2
3
4
Track 4
52. MIDI Channel 2
Instr
C5 M02 - - - -- - - -
M02
Instrument # Name Step Tag MIDI Channel
51 MIDI Channel 1 M01 1
52 MIDI Channel 2 M02 2
53 MIDI Channel 3 M03 3
54 MIDI Channel 4 M04 4
55 MIDI Channel 5 M05 5
56 MIDI Channel 6 M06 6
57 MIDI Channel 7 M07 7
58 MIDI Channel 8 M08 8
59 MIDI Channel 9 M09 9
60 MIDI Channel 10 M10 10
61 MIDI Channel 11 M11 11
62 MIDI Channel 12 M12 12
63 MIDI Channel 13 M13 13
64 MIDI Channel 14 M14 14
65 MIDI Channel 15 M15 15
66 MIDI Channel 16 M16 16
