8.3 Audio Inputs
Tracker Mini has two audio inputs that provide a source to sampling and
recording from external sources. Internal microphone is on the front plate.
The physical audio inputs are located on the bottom of the device and
provide access for line in either using TRS Stereo or TS Mono jacks by
using the supplied 3.5mm to 2 x 6.3mm adapter.

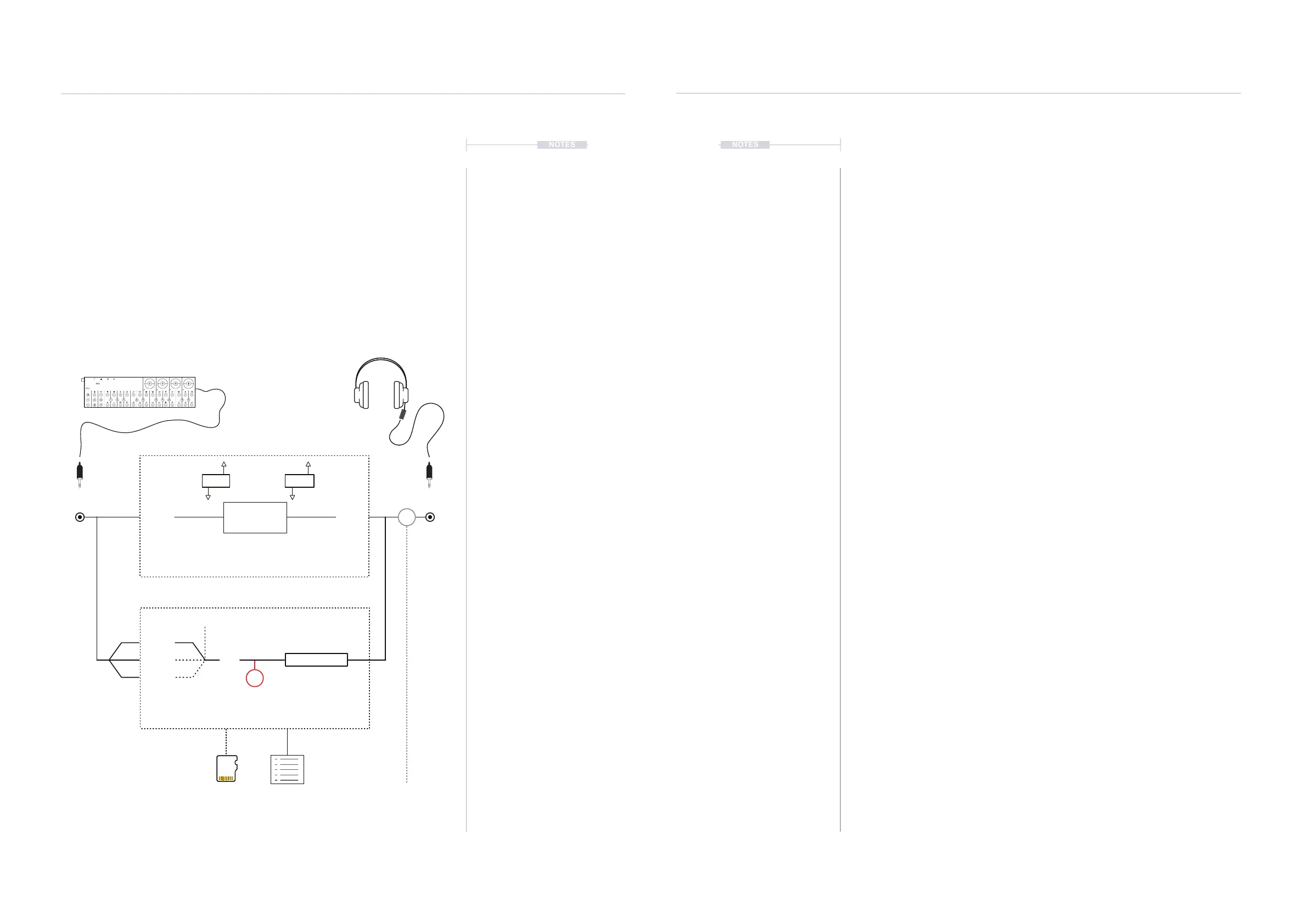

Line Input
The input can be selected between Left, Right or Stereo. While these are
selectable options Tracker Mini records in mono. Tracker Mini can record
audio or play a pattern audio but not both at the same time. Patterns when
playing will output MIDI but not audio if sample recording is in progress.
Left
Line In Out
Internal Mic
Right
Stereo
Stereo Stereo
[Sample Recorder]
All Samples are Recorded in Mono
[Master]
Global Mixer - Page 3 of 3
Line In
Mute On / Off
Send FX
Gain
R
M
Delay Reverb
Monitor On / Off
SD Card Instrument List
Master Output
Page 1 of 3
Line In Pass Through
Recording
Audio saved to SD Card and / or
directly to the instrument list
OP Z
P
The sample recorder page can select sampling input, but the general input
is dened in the ‘Cong’ parameter settings. The Mixer passthrough audio
operates in stereo.
▌ SETTING THE SAMPLER LINE IN STEREO / MONO OPTION
1. Press [Shift] + [4] or use [Menu] to open the conguration settings.
2. Navigate with the 1
st
and 2
nd
Screen buttons to select ‘General’.
3. In the central window pane, Press the 4
th
or 5
th
Screen buttons to
navigate to ‘Line in channel’.
4. Press [Change], 6
th
Screen button to select the options. The pop-up
window will appear.
5. In the middle page pane, Press the 4
th
or 5
th
Screen buttons to navigate
to select ‘Stereo’, ‘Mono Left’ or ‘Mono Right’.
6. Press [Apply], 6
th
Screen Button or [Cancel], 3
rd
Screen button to exit
without changing.
▌ SETTING THE MIXER LINE IN PASS THROUGH PARAMETERS
1. Open the Master pages, Press [4]. Navigate to the Global Mixer, Page 3
of 3. Press [4] to cycle through pages.
2. Line In by default is muted. Press [Unmute] 4
th
Screen button for the
Line In channel to mute or unmute. If unmuted this will state [Mute].
3. Line In can be soloed. Press [Shift] + [Solo] 4
th
Screen button for the
Line In channel to toggle solo on or off.
4. Hold [Mute], 4
th
Screen button + Press [+] / [-] or (Up) or (Down) to
adjust the level. This will adjust the ‘Line In’ setting.
5. The Line in signal can also be sent to the master Delay and Reverb
effect. These channels may also be muted. Press [Mute] / [Unmute] to
toggle the Mute / Unmute State of the respective screen button.
6. To adjust the Delay and Reverb send amount, Hold [Mute] for the
respective effect screen button + Press [+] / [-] or (Up) or (Down).
7. The Mixer bar graphs will show the audio in real time for the level,
dimmed if muted and bright if audible / unmuted. The level and send
amount settings are also shown on the bar and in the label.
