n Each byte is connected with an 8 pole terminal block.
n Each output byte has its own power supply connection. This
feature can be used to turn off a whole byte by means of a
unique external switch.
n The outputs are always referenced against 0 V, located in the
power connector (X30 pin 3)

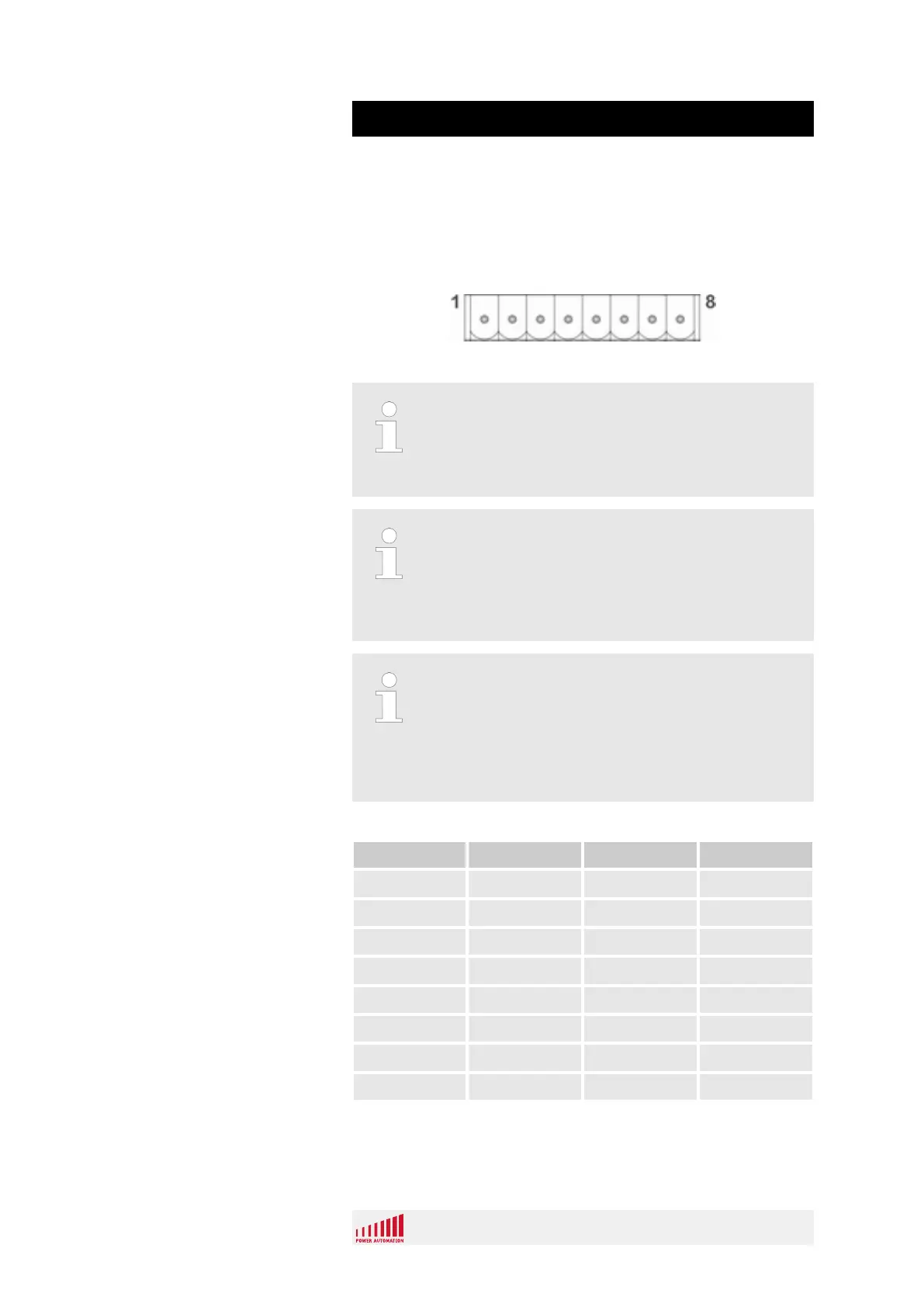

Fig. 33: Input terminal block
The current limitation of each output is 0.7 - 2.5A
per pin in case of short circuits.
– Consider that the power supply cable for one
output byte has to be chosen accordingly.
Each output has a nominal output capability of 0.7
A. Nevertheless each output byte is globally limited
to 4 A.
– Take care of this specification by appropriate
output definition toward the external actuator.
Outputs are monitored for faults. In case of errors,
the according output is switched off.
Since every 4 adjacent outputs have a common
status signal, the onboard monitor always switches
off 4 outputs in such a case (1 - 4, 5 - 8, 9 - 12, 13
- 16).
Byte 1 +24 V output Byte 2 +24 V output
pin 1 1. out bit pin 1 9. out bit
pin 2 2. out bit pin 2 10. out bit
pin 3 3. out bit pin 3 11. out bit
pin 4 4. out bit pin 4 12. out bit
pin 5 5. out bit pin 5 13. out bit
pin 6 6. out bit pin 6 14. out bit
pin 7 7. out bit pin 7 15. out bit
pin 8 8. out bit pin 8 16. out bit
Connection
Pin Assignment
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 58
