power automation PA 8000 User Manual

Property Value Unit
Max. probe input
voltage
27 v
Probe input current
(at 24 V)
7 mA
Probe input impe-
dance
2200 Ω
Probe operating
voltage OFF
5 V DC max.
Probe operating
voltage ON
11 V DC min.
Probe input ON
delay
200 ns
Probe input OFF
delay
300 ns
Probe isolation Opto coupler
Interface type digital input 24 V
Probe wiring
When the probe input is used in an application,
each input of all used axes must be wired in par-
allel.

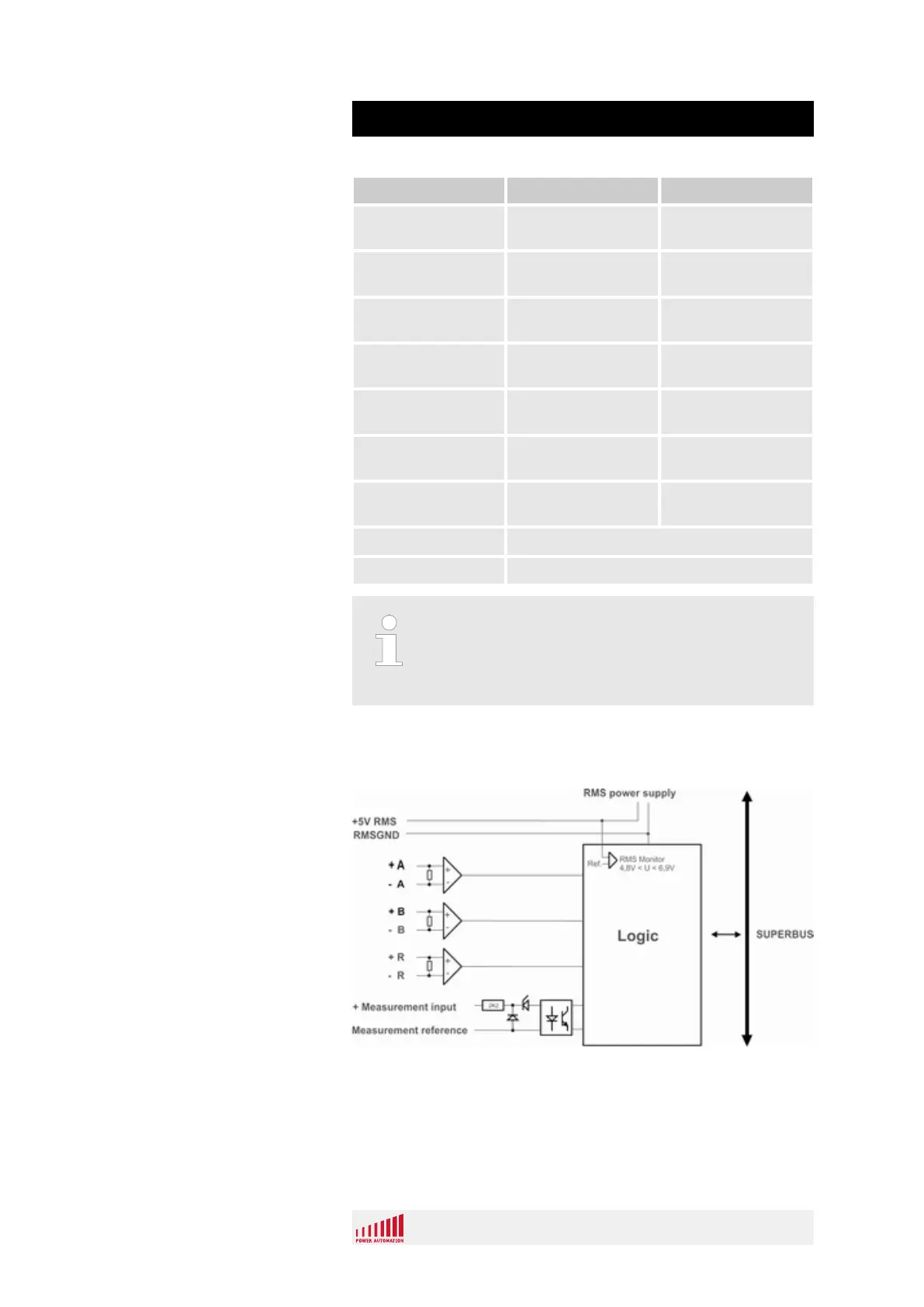

The following figure (Fig. 42) shows how the axis measurement
inputs are realized on each PAMIO 4ENC4A module.
Fig. 42: RMS input equivalent schematic
Probe Input
Input Equivalent Schematic
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 68
