The analog outputs are connected with an 8 pole terminal block

(Fig. 48).

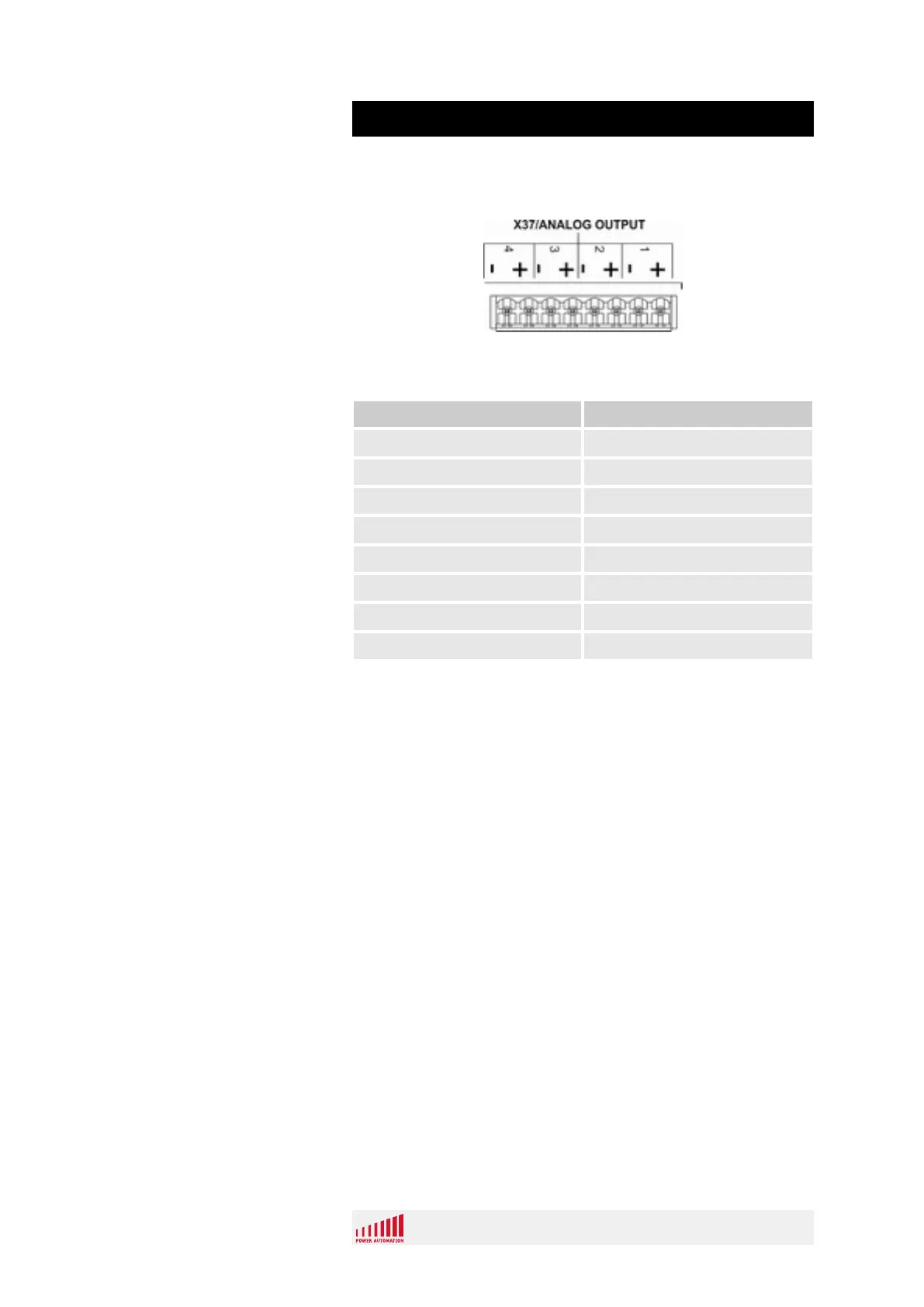

Fig. 48: Axes output terminal block

Pin Description

Pin 1 +/- output channel 1

Pin 2 reference channel 1

Pin 3 +/- output channel 2

Pin 4 reference channel 2

Pin 5 +/- output channel 3

Pin 6 reference channel 3

Pin 7 +/- output channel 4

Pin 8 reference channel 4

Connection

Pin Assignment

PA 8000 PAMIO

PAMIO Components

12.01.2017 | 74
