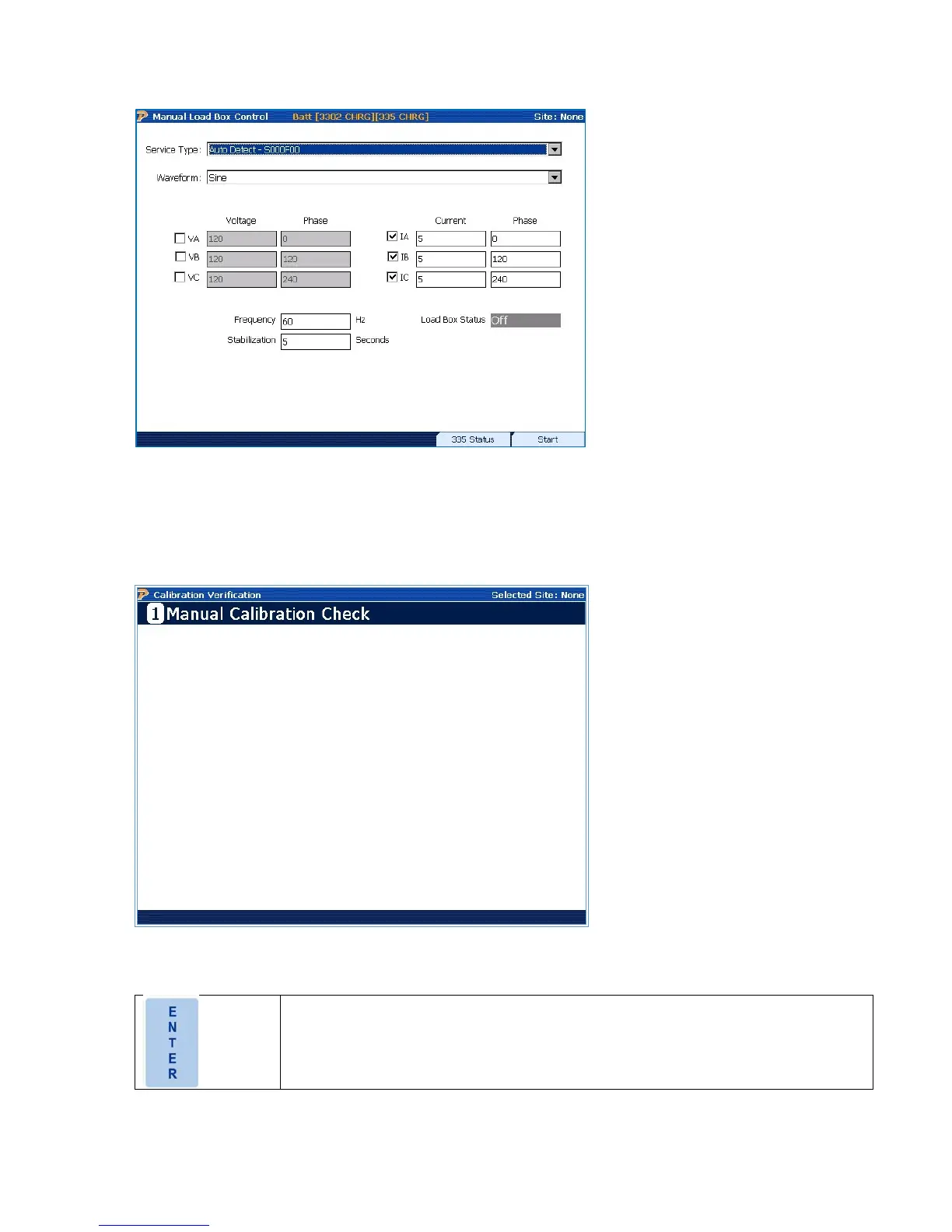

13.2 Manual Load Box Control
With a 335 installed, this gives the user the ability to output current in various configurations (such
as 4W-Wye, 6sZ-coil, etc) up to 5A. The user also has the ability to output a sine wave, plus two
harmonic current waveforms: a phase fired waveform (up to 2.5A) and a waveform with multiple
zero-crossings (up to 2.5A).
13.3 Calibration Verification
Functionality:
Rev 1.5 115
