Displays all current PowerMaster
®
software revisions
Displays all configured options in the user’s unit
Displays all engineering changes made in the history of the user’s unit
Displays all calibrations that have been performed in the history of the
user’s unit
Description:
This gives the user a quick verification of the analyzer’s condition. Different function keys are
displayed to access further detail or perform a probe scan (see Section 13.8.2
).
The “Active Measurements” show the user what currents and voltages are detected by the
attached probes and lead sets.
The “Battery” display shows the user the current battery status (based off the internal battery
voltage reading).
When green, the battery is actively charging
When red, the battery is detected to have an error

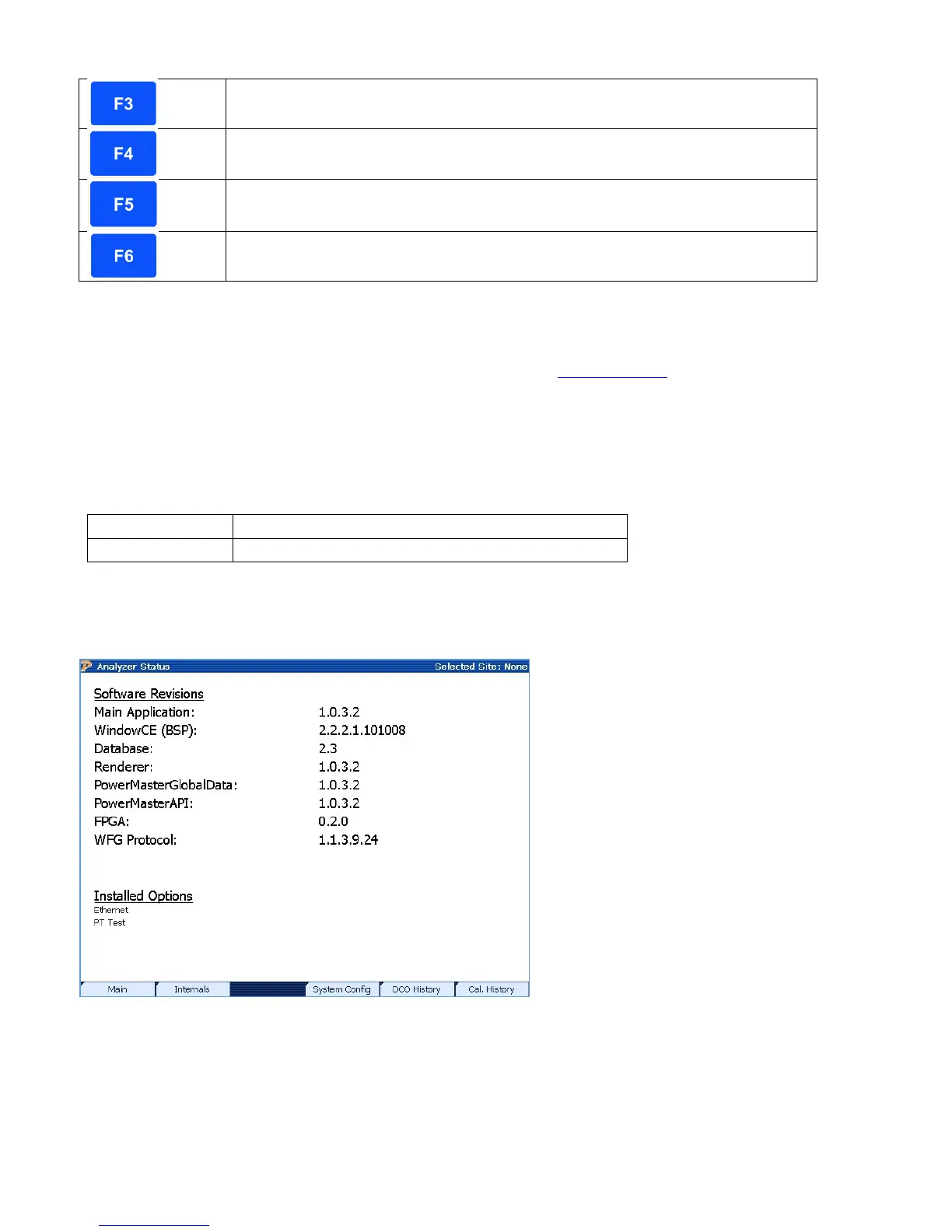

13.8.1 Software Revisions
Description:
This screen is to allow the user to view the version of software that is presently in the
PowerMaster
®
. The installed options can also be seen in this screen.
Rev 1.5 122
To Next Page
