7 Site Selection and Editing
All test performed by the 3 Series are directly related to sites. A Site is described best as a meter
and all corresponding instrumentation transformers, wires, and connections. When creating a
site, the site ID must be specific to that site, cannot be duplicated, and once data is saved, cannot
be deleted. It is for this reason that the usage of meter numbers is discouraged. Typical Site ID’s
that are used are locator ID’s, Location ID’s, or anything else already used internally in a
customer information system.

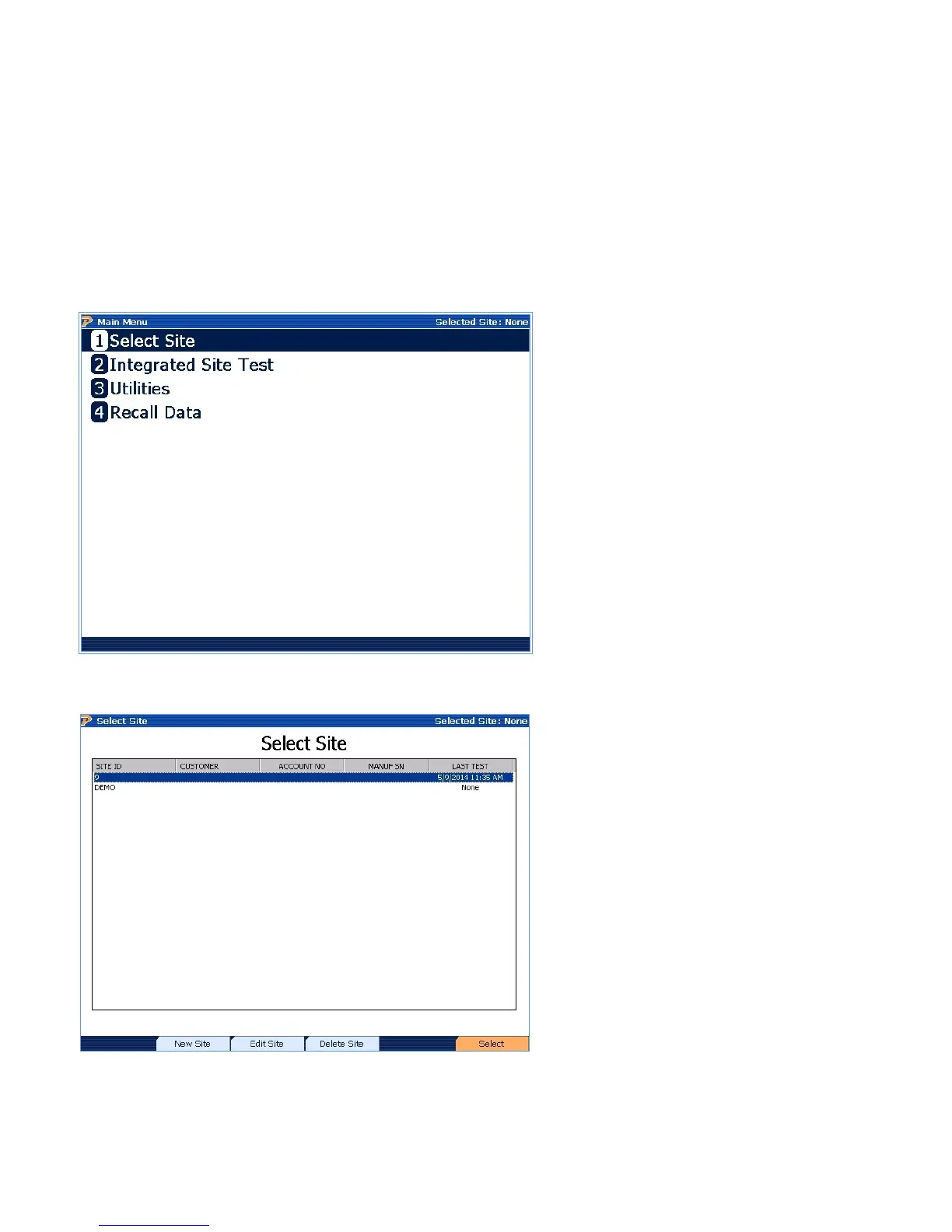

To select, create, or delete (with no data saved) a site, from the main menu either option 1 or 2
will bring up the site menu screen. Selecting option 2 will continue with the test once the site has
been selected/edited/created, while option 1 returns the user to the main menu.
Once either has been selected, the site selection screen will be shown, allowing users to create
their sites, or select sites.
Rev 1.5 36
