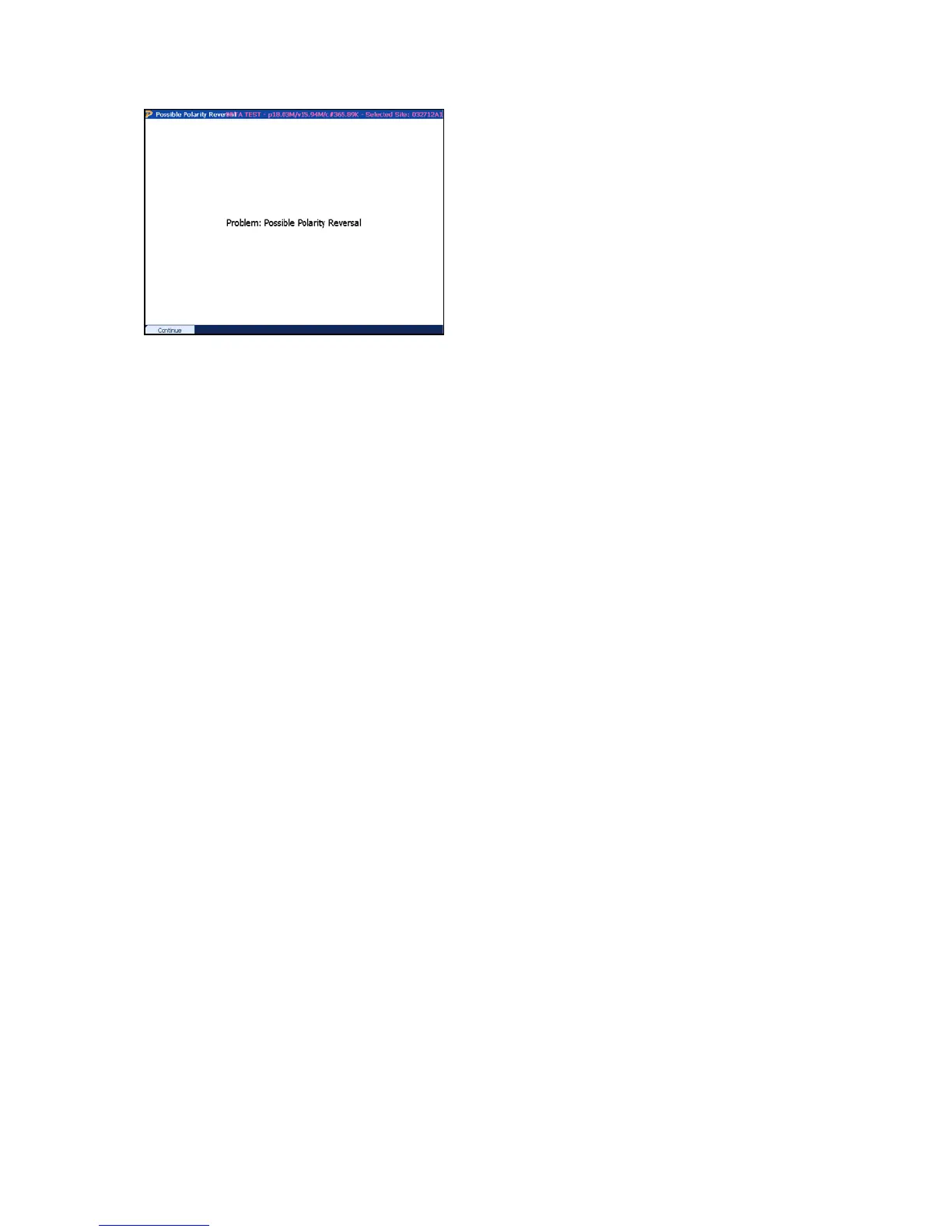

The PowerMaster
®
detects a phase angle error
between 190 and 170 degrees for the phase under test.
Attempt the following:
1. Verify the polarity of the probe is correct (arrow
towards load)
2. Check for a wiring error from the primary of the
CT
3. Contact Technical Support for troubleshooting
the probe and/or analyzer
11.2 CT Burden Added Test
To perform a CT Burden added test, a 303, 305, or 335 accessory must be installed.
To start a burden added test, verify that the option is selected on the integrated site test. Using
the drop down menu for max burden, select the maximum burden that is needed for the circuit.
Values that can be selected are:
1. 0.1Ω
2. 0.3Ω
3. 0.5Ω
4. 1Ω
5. 2Ω
Rev 1.5 93
