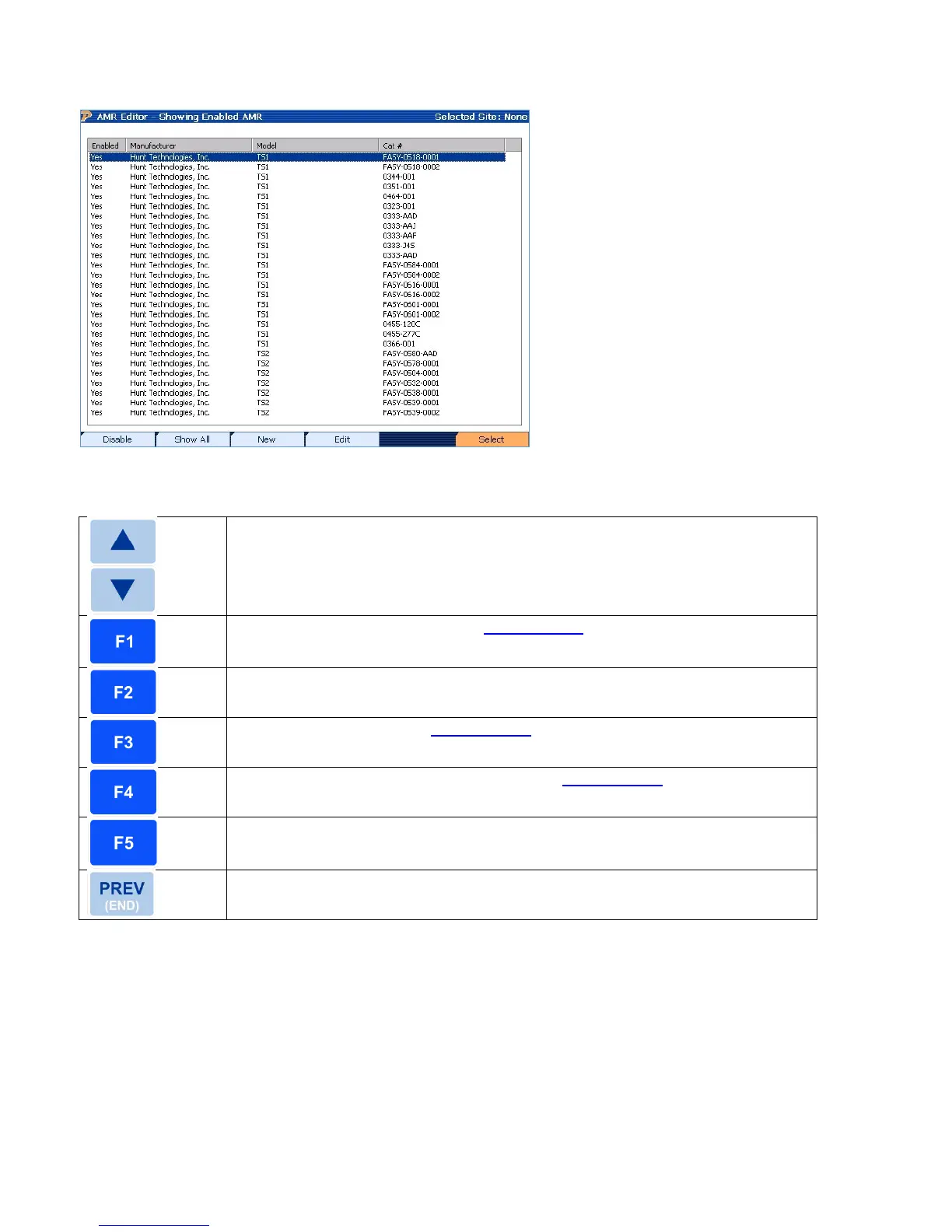

7.8 AMR Editor

Functionality:

Moves cursor up and down for selecting an AMR (Automatic Meter

Reading)

Disables the selected AMR (see Section 7.8.1)

Shows all enabled and disabled AMR’s in database (default = enabled only)

Creates a new AMR (see Section 7.8.1)

Opens the selected AMR to be edited (see Section 7.8.1)

Deletes the selected AMR

Backs up to Site Editor page 2

Rev 1.5 52

Default Chapter3
- Table of Contents3
Contacting Powermetrix7
Warranty8
Safety9
Battery Safety Tips11
- Charging the Battery12
Maintenance of Unit14
Product Manual Release Notes15
1 Introduction16
2 Product Description18
- Keypad18
- Keypad and USB Keyboard Use Table21
- Screen23
- Connector Panel23
- Battery25
- Standard Accessories26
- Optional Accessories26
3 Graphical User Interface31
- Controls31
4 Splash Screen32
5 Menu System33
6 Main Menu (Pre Site Selection)34
- Main Menu (after Site Selection)35
7 Site Selection and Editing36
- How Do I Select a Site37
- How Do I Edit a Site38
- How Do I Delete a Site38
- How Do I Create a New Site38
- Meter Editor46
  - Creating or Editing a Meter47
- PT Editor48
  - Creating or Editing a PT49
- CT Editor50
  - Creating or Editing a CT51
- AMR Editor52
  - Creating or Editing an AMR53
- Site Editor Faqs53
8 Hot Keys55
- Waveforms58
- Vector Diagram60
  - Vector Diagram Reference62
  - Vector Diagram Wiring Display63
- Power Meter64
- Harmonics Analysis66
  - Harmonics Details68
9 Integrated Site Test70
10 Meter Testing72
- Customer Load Setup74
- Customer Load Register Test82
11 Instrument Transformer Testing85
- CT Testing (Customer Load)86
- CT Burden Added Test93
  - CT Testing Results Graphs96
    - CT Testing Results Data96
    - CT Testing Results Data (Burden Only)98
- CT Burden Measurement99
- PT Testing105
- PT Burden Measurement109
  - Burden Measure with Connections at Test Switch109
  - Calculated Burden with Connections at Test Switch110
12 Recall Data112
13 Utilities113
- Connect to Meter Site Manager114
- Manual Load Box Control115
- Calibration Verification115
  - Calibration Verification Setup116
- Quick Edit120
- Remote120
- System121
- Status121
  - Software Revisions122
  - Probe Scan123
- Install a System Upgrade124
- Set System Time126
- Save a Database Backup127
- The 335 Status128
- User Preferences129
14 Accessory 335 Burden Added Load Box139
- Overview139
- Connections139
- Operation143
- Battery Maintenance and Safety149
- Safety150
15 ANSI Specifications* (Model 3302)151
16 Appendix155
