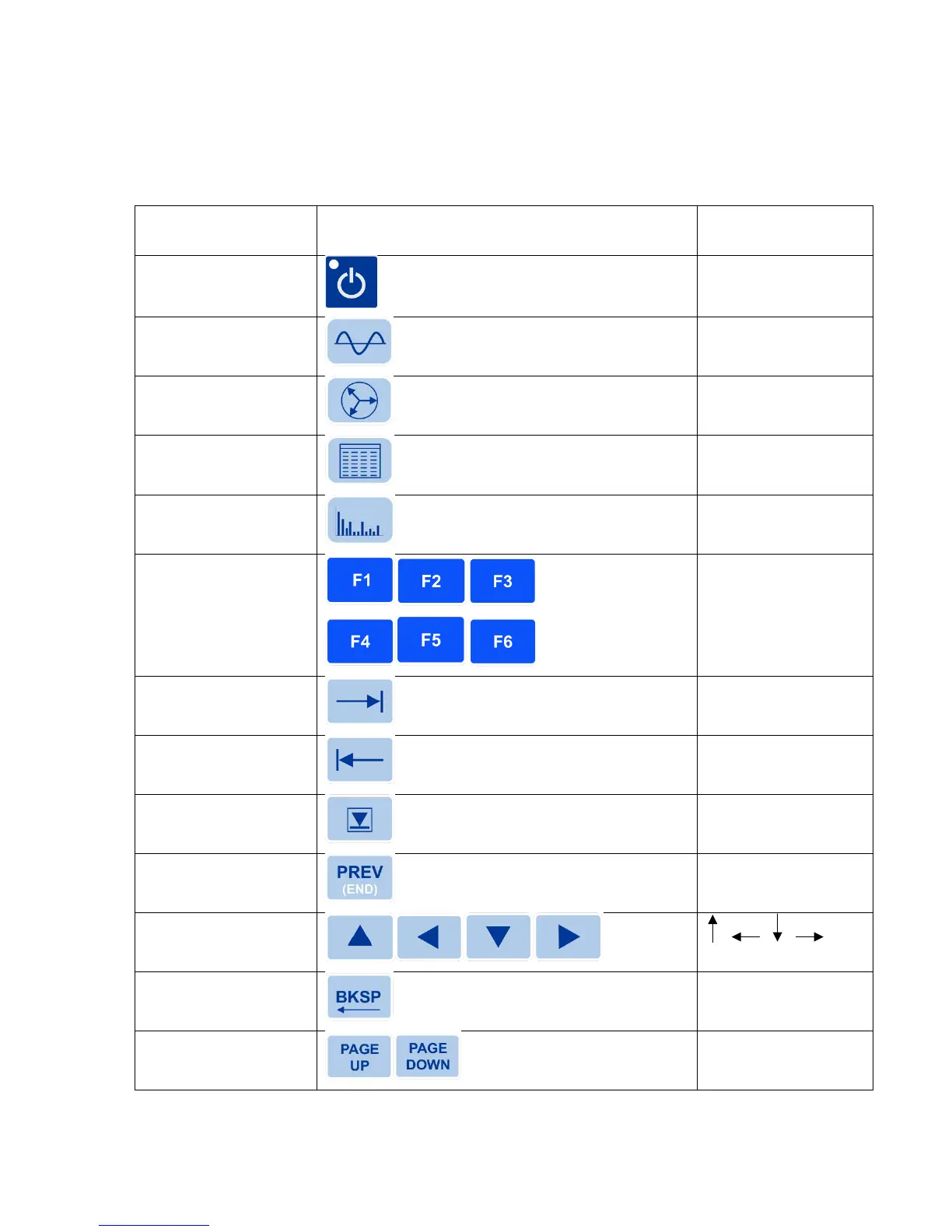

2.2 Keypad and USB Keyboard Use Table
The PowerMaster
®
allows the user to input a USB keyboard & mouse to alternatively operate the
unit. The USB keyboard & mouse is used by connecting to one of the USB ports labeled “USB.”
The following table is an explanation for each corresponding key on the PowerMaster
®
keypad.
Label
PowerMaster
®
Key
USB Keyboard &
Mouse Key
Power
N/A
Waveform hot key
F7
Vector hot key
F8
Power Meter hot key
F9
Harmonics hot key
F10
Function keys
F1 – F6
Tab key
Tab
Back Tab key
Shift, Tab
Drop-Down key
Num Lock, 5
Previous key
End
Directional keys
Backspace key
Backspace
Page Up, Page Down
Page Up, Page
Down
