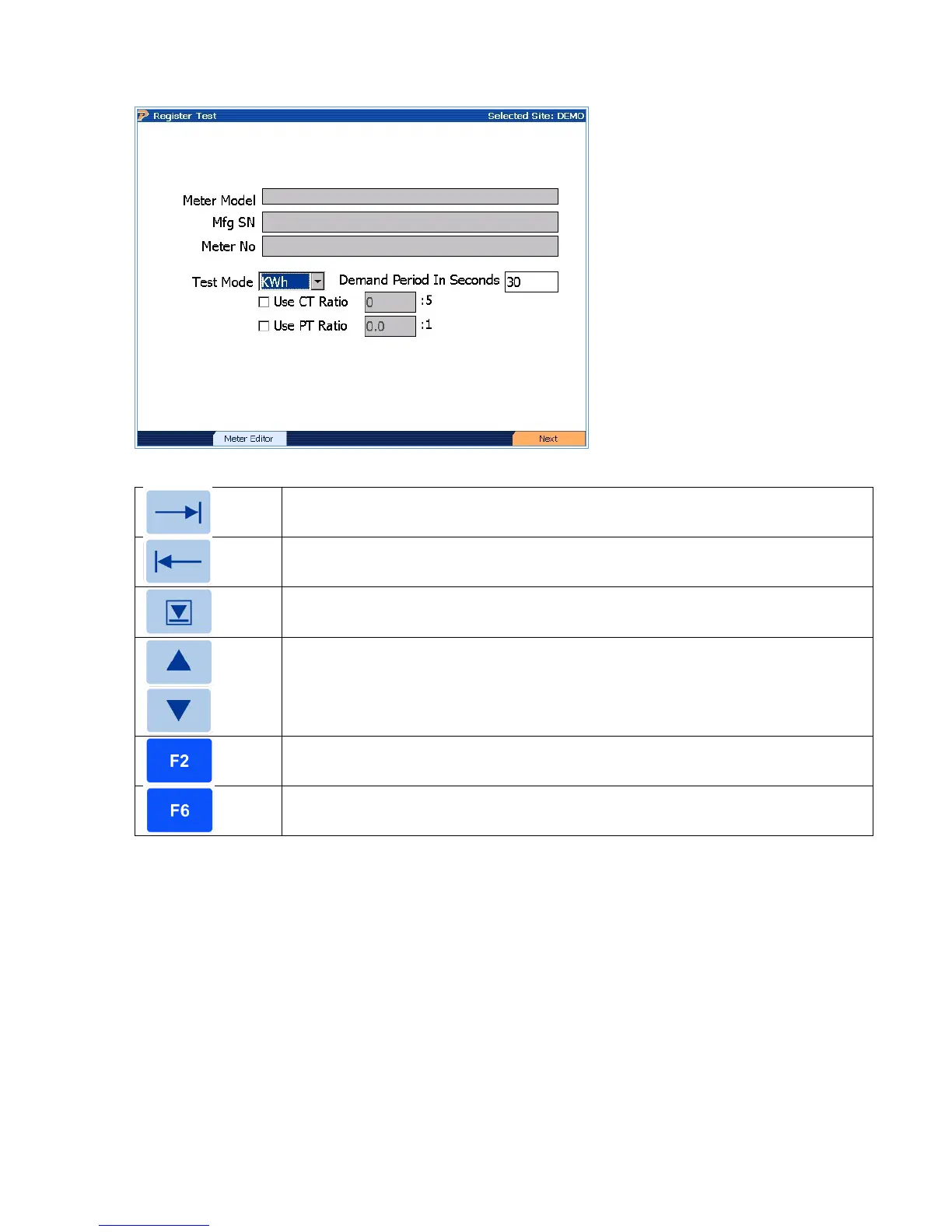

10.2.1 Register Test Setup

Functionality:

Moves to next field

Moves to previous field

Enters drop down box and views test mode selections; checks/unchecks

check boxes

Moves cursor up and down for selecting a test mode in the drop down box

Enters the Meter Editor Screen, See Section 7.5 for more details

Continues

Description

Verify the settings are correct, and change the value of “Demand Period in Seconds” to the

required value. Press F2 to access the meter editor to enter any meter values required.

Rev 1.5 83
