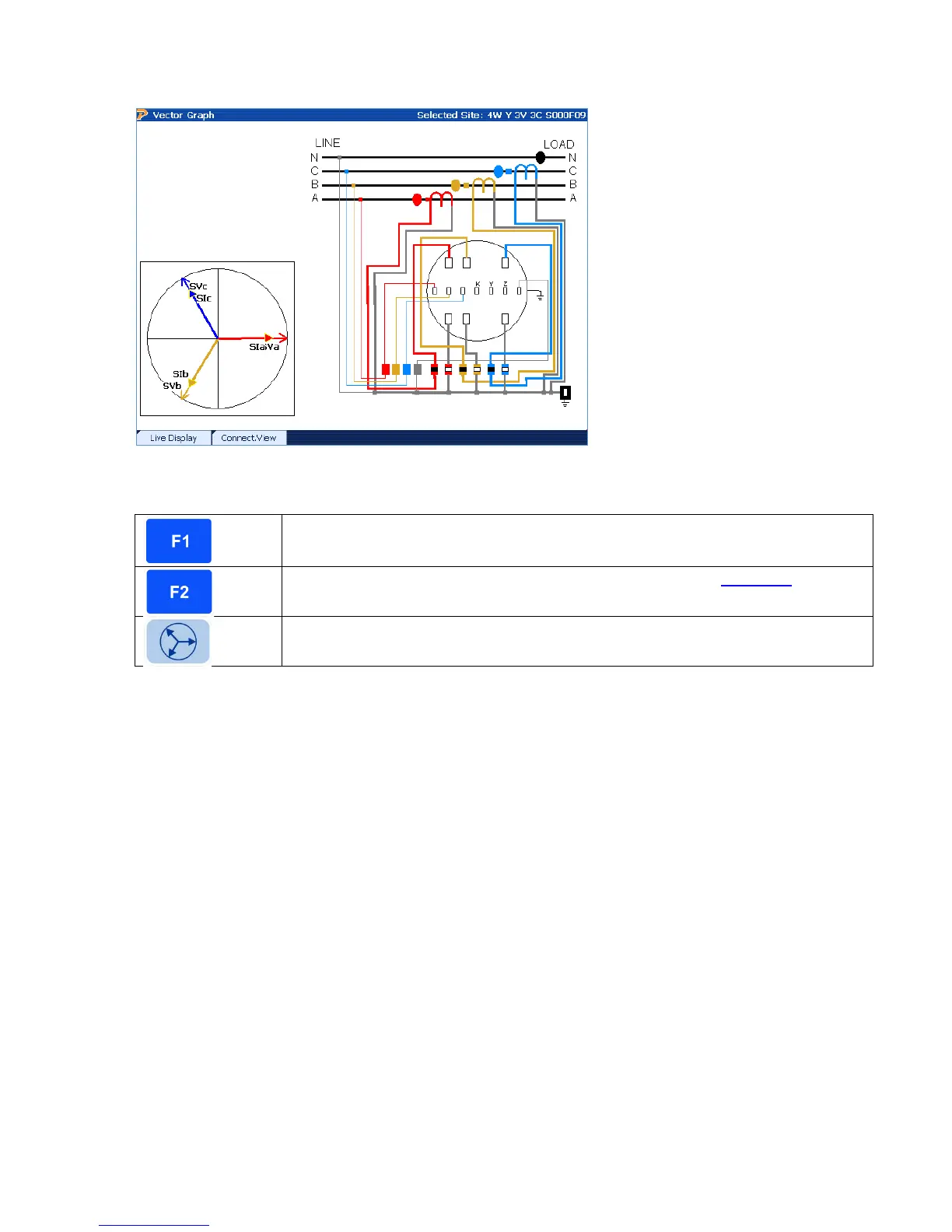

8.2.2 Vector Diagram Wiring Display

Functionality:

Goes back to live vector diagram display

Toggles between Connection View and Meter View (see Section 8 for

details)

Closes vector diagram screen

Description:

This screen allows the user to view the service type connections (along with color-coded

PowerMaster

probe connections) and the associated vector diagram. The vector diagram is

always displayed to the bottom left and is show in a “unity” situation (power factor = 1.00).

Rev 1.5 63
