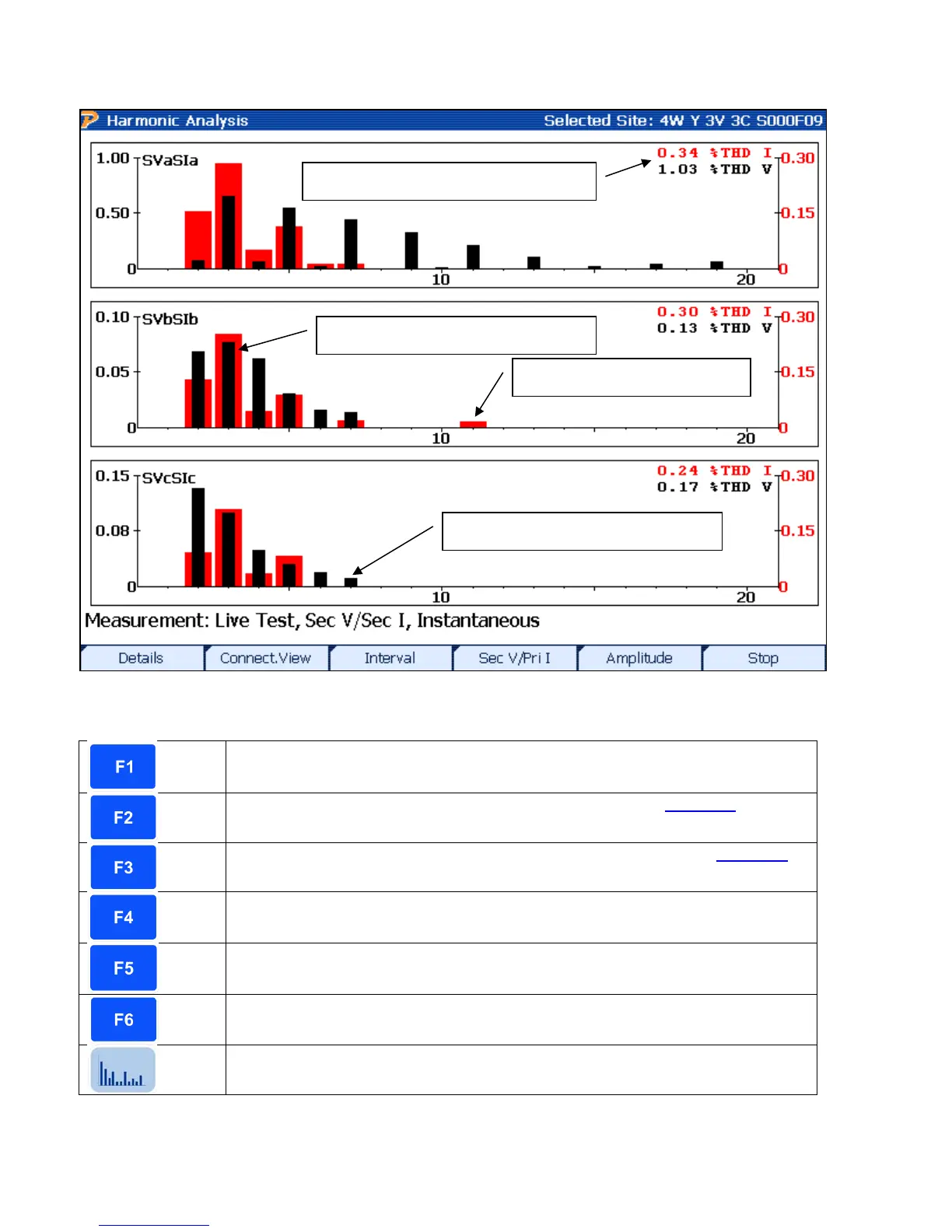

8.4 Harmonics Analysis
Functionality:
Displays the data for each harmonic (up to 50
th
) per phase
Toggles between Connection View and Meter View (see Section 8 for
details)
Toggles between Instantaneous, Interval, and Test Period (see Section 8
for details)
Toggles between Sec V, Sec I, Sec V, Pri I, Pri V, Pri I, Neutrals (if correct
probes are detected)
Toggles between % (of the fundamental) and amplitude (volts and amps)
Stops all active measurements for display, enables F1 to manually save
data
3
rd
Voltage & Current Harmonic
11
th
Current Harmonic Only
7
th
Voltage Harmonic Only
Total Harmonic Distortion (%)
Rev 1.5 66
