14 Accessory 335 Burden Added Load Box
14.1 Overview
The 335 is a portable accessory for the 3 Series that connects directly to the 3 series offering a
variety of additional options to the 3 series. The options are as follows:
1. 303 – Burden added only.
2. 305 - Load box only.
3. 335 – Burden added and load box.
For all 335 specific specifications, please refer to the ANSI Specifications
section of this
document. As all connections are the same regardless of which option is being used, the primary
source of material will cover the 335.
14.2 Connections

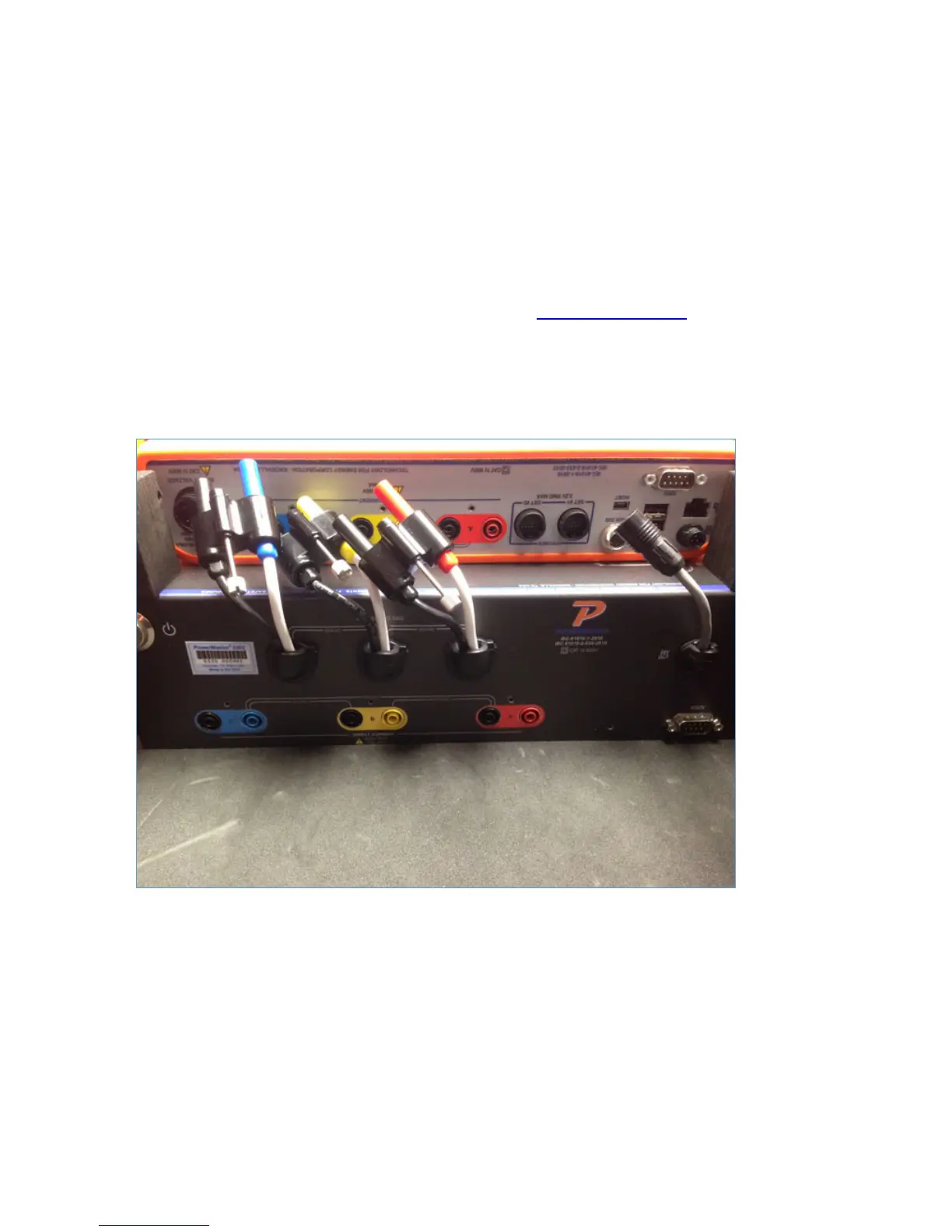

Below is a picture of the 335 installed under a 3 series, disconnected.
Connect the current jumpers as shown below, verify that the colors on the banana jacks match,
and that the safety screw is firmly tightened.
