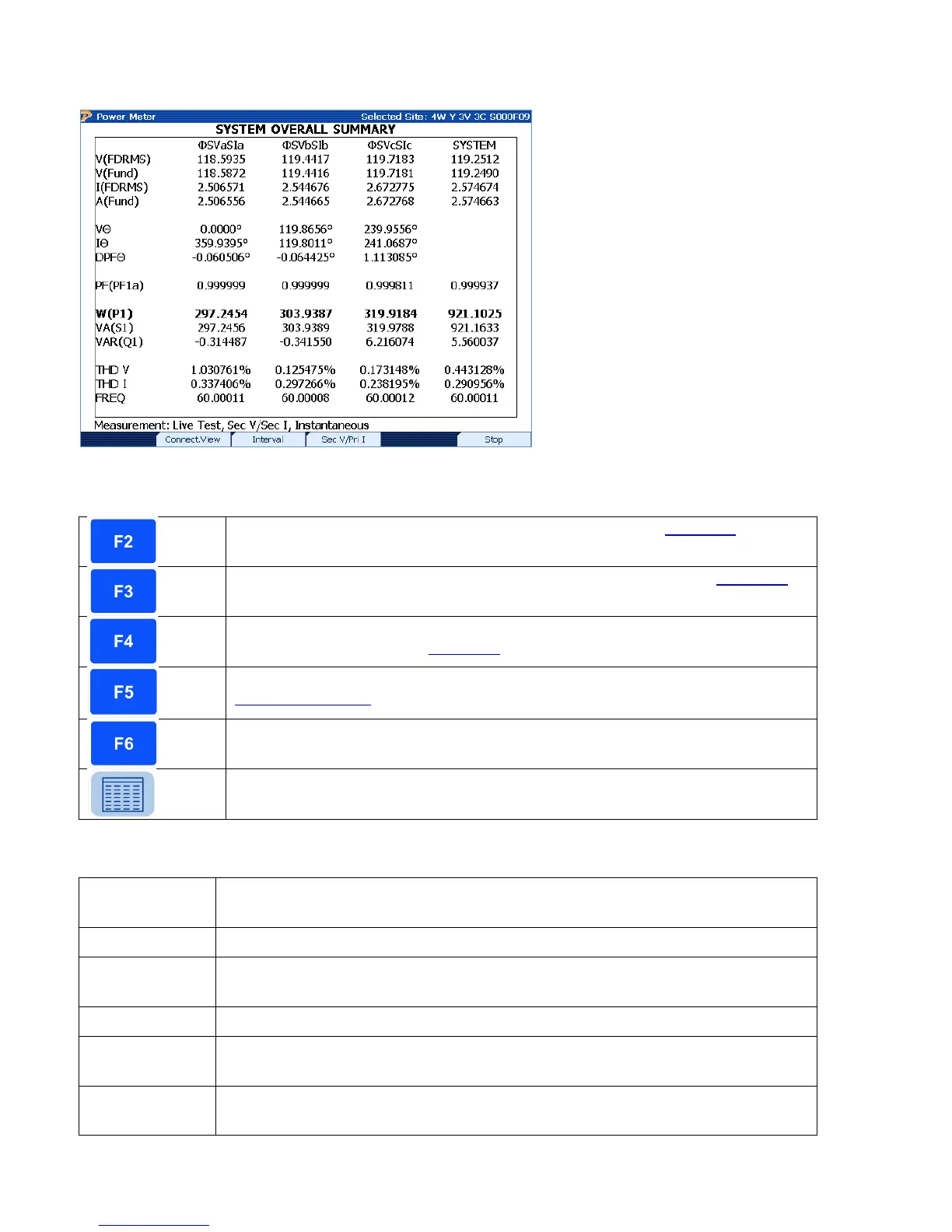

8.3 Power Meter

Functionality:

Toggles between Connection View and Meter View (see Section 8 for

details)

Toggles between Instantaneous, Interval, and Test Period (see Section 8

for details)

Toggles between Sec V, Sec I, Sec V, Pri I, Pri V, Pri I, Neutrals (if correct

probes are detected; see Section 8 for details)

Displays calculated values with CT and PT ratios enabled (defined in the

Site Editor page 2)

Stops all active measurements for display, enables F1 to manually save

data

Closes power meter screen

Description:

V(xx)

Voltage measurement per phase (calculation defined in Measurement

Calculations)

V (Fund)

Fundamental voltage measurements per phase (inside 50 or 60 Hz)

I(xx)

Current measurement per phase (calculation defined in Measurement

Calculations)

A (Fund)

Fundamental current measurement per phase (inside 50 or 60 Hz)

VΘ

Phase angle measurement for voltage (reference phase is service type

dependent)

IΘ

Phase angle measurement for current (reference phase is service type

dependent)

Rev 1.5 64
