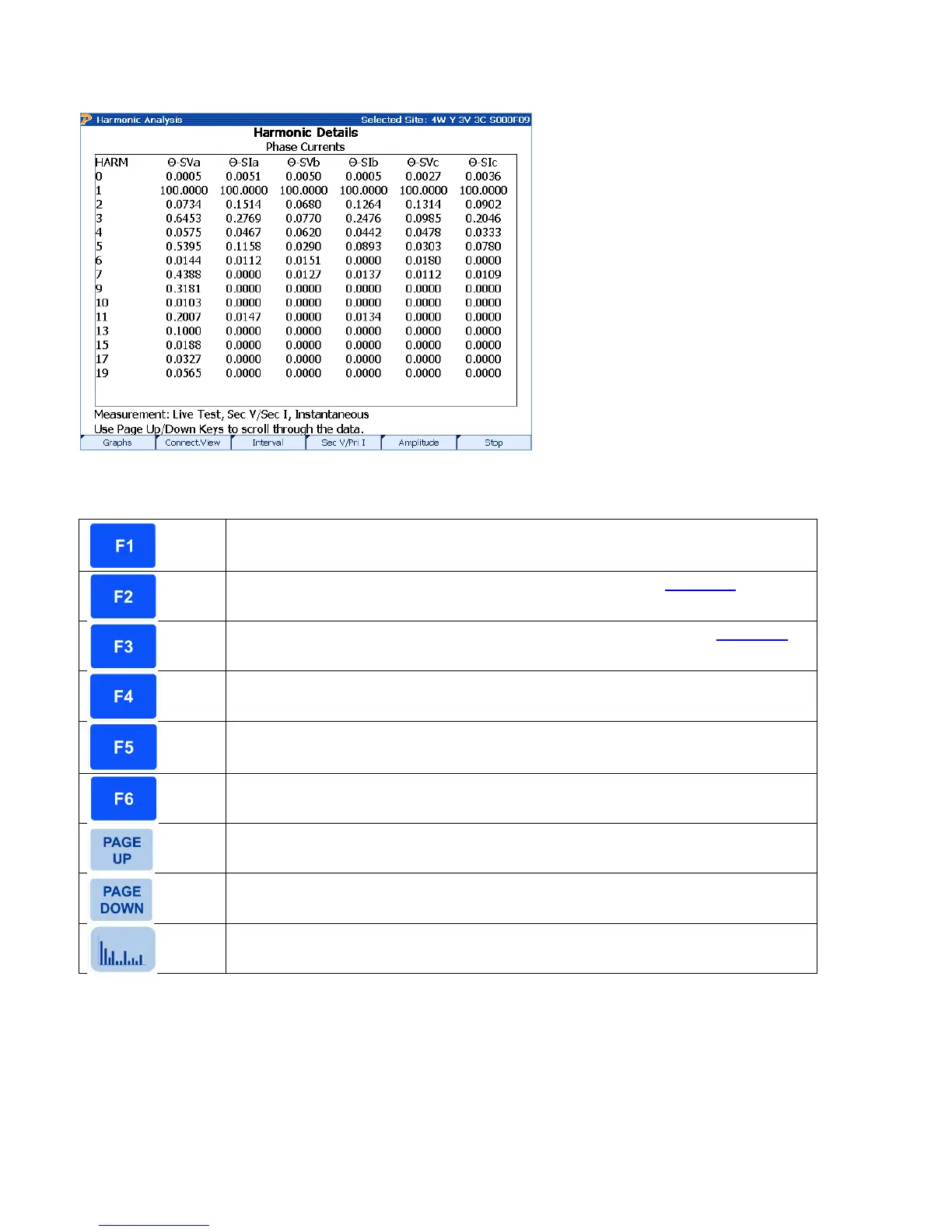

8.4.1 Harmonics Details
Functionality:
Views graphical harmonic data
Toggles between Connection View and Meter View (see Section 8 for
details)
Toggles between Instantaneous, Interval, and Test Period (see Section 8
for details)
Toggles between Sec V, Sec I, Sec V, Pri I, Pri V, Pri I, Neutrals (if correct
probes are detected)
Toggles between % (of the fundamental) and amplitude (volts and amps)
Stops all active measurements for display, enables F1 to manually save
data
Goes up to the previous set of data
Goes down to the next set of data
Description:
This screen gives the user the ability to view each individual harmonic in accordance to the
respective phase current and voltage. By pressing F5, the user can toggle between the percent
of the fundamental and the amplitude of the voltage and current. Pressing the PAGE UP and
PAGE DOWN keys will allow the user to move up and down the table.
Rev 1.5 68
