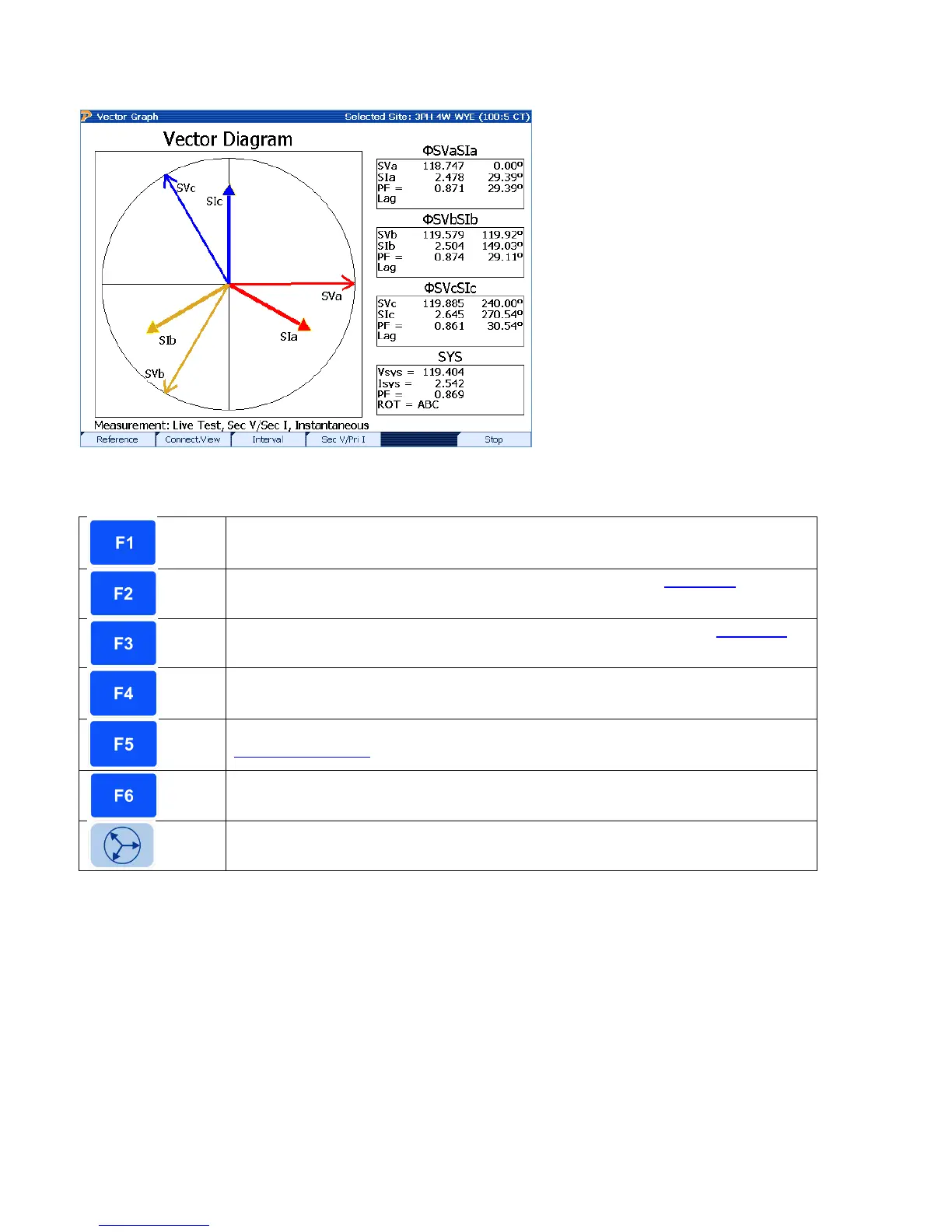

8.2 Vector Diagram
Functionality:
Goes to the reference vector diagram
Toggles between Connection View and Meter View (see Section 8 for
details)
Toggles between Instantaneous, Interval, and Test Period (see Section 8
for details)
Toggles between Sec V, Sec I, Sec V, Pri I, Pri V, Pri I, Neutrals (if correct
probes are detected)
Displays calculated values with CT and PT ratios enabled (defined in the
Site Editor page 2)
Stops all active measurements for display, enables F1 to manually save
data
Closes vector diagram screen
Rev 1.5 60
