8.1 Waveforms
Functionality:
Toggles between waveform pairs and full waveform displays
Toggles between Connection View and Meter View (see Section 8 for
details)
Toggles between Sec V, Sec I, Sec V, Pri I, Pri V, Pri I, Neutrals (if correct
probes are detected; see Section 8 for details)
Stops all active measurements for display
Description:

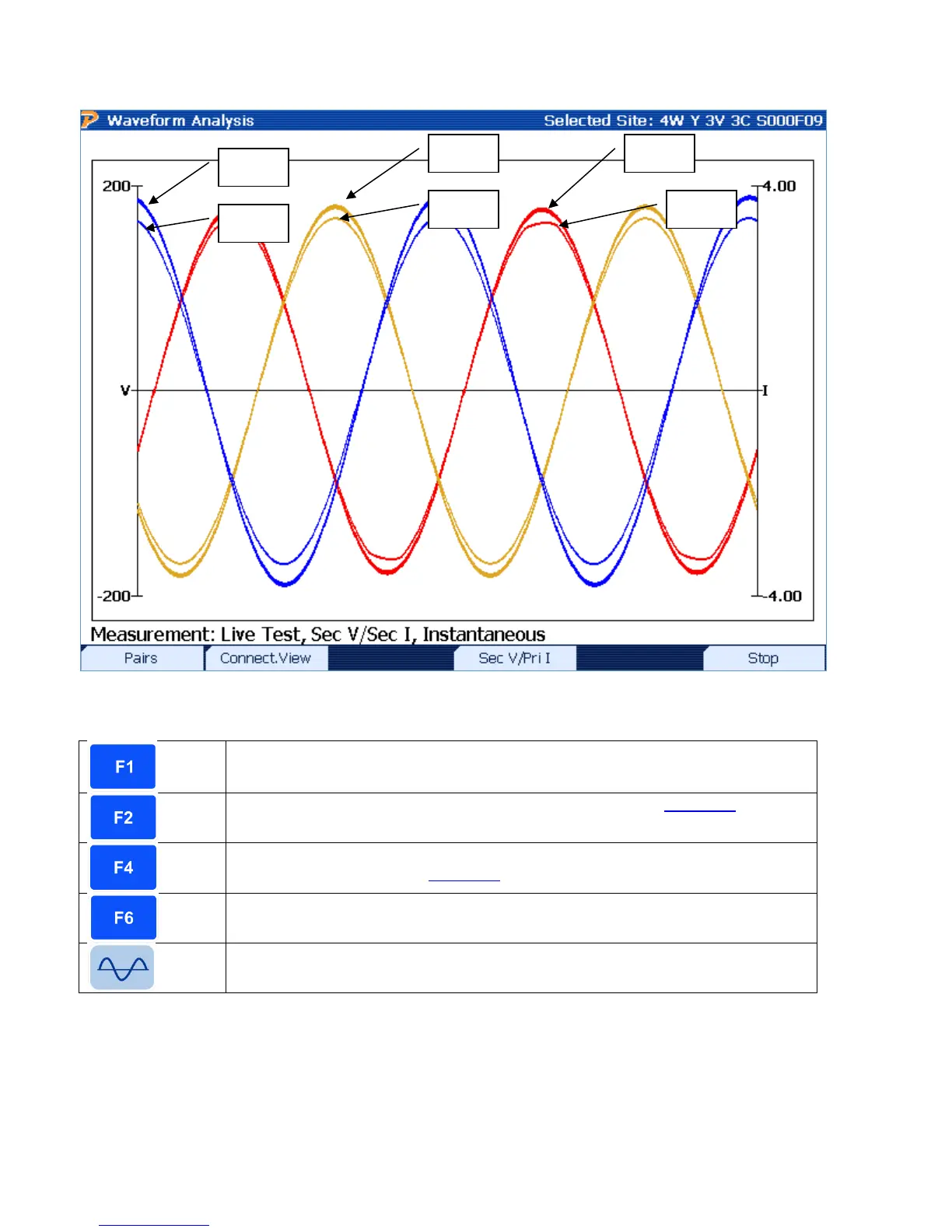

This oscilloscope-type display shows the user the amplitude and phase relationships in time
between the voltage and current. All phases are color-coded (A = red, B = yellow, C =blue). The
line weight for each phase is used to differentiate between the voltages and currents. The
voltage lines are graphically displayed with a thinner weight than the currents (see graph labels
above).
Rev 1.5 58
