14.3 Operation
14.3.1 Building the Site
Once the unit is on, create a site as outlined in Section 7 of this document. To perform a load box

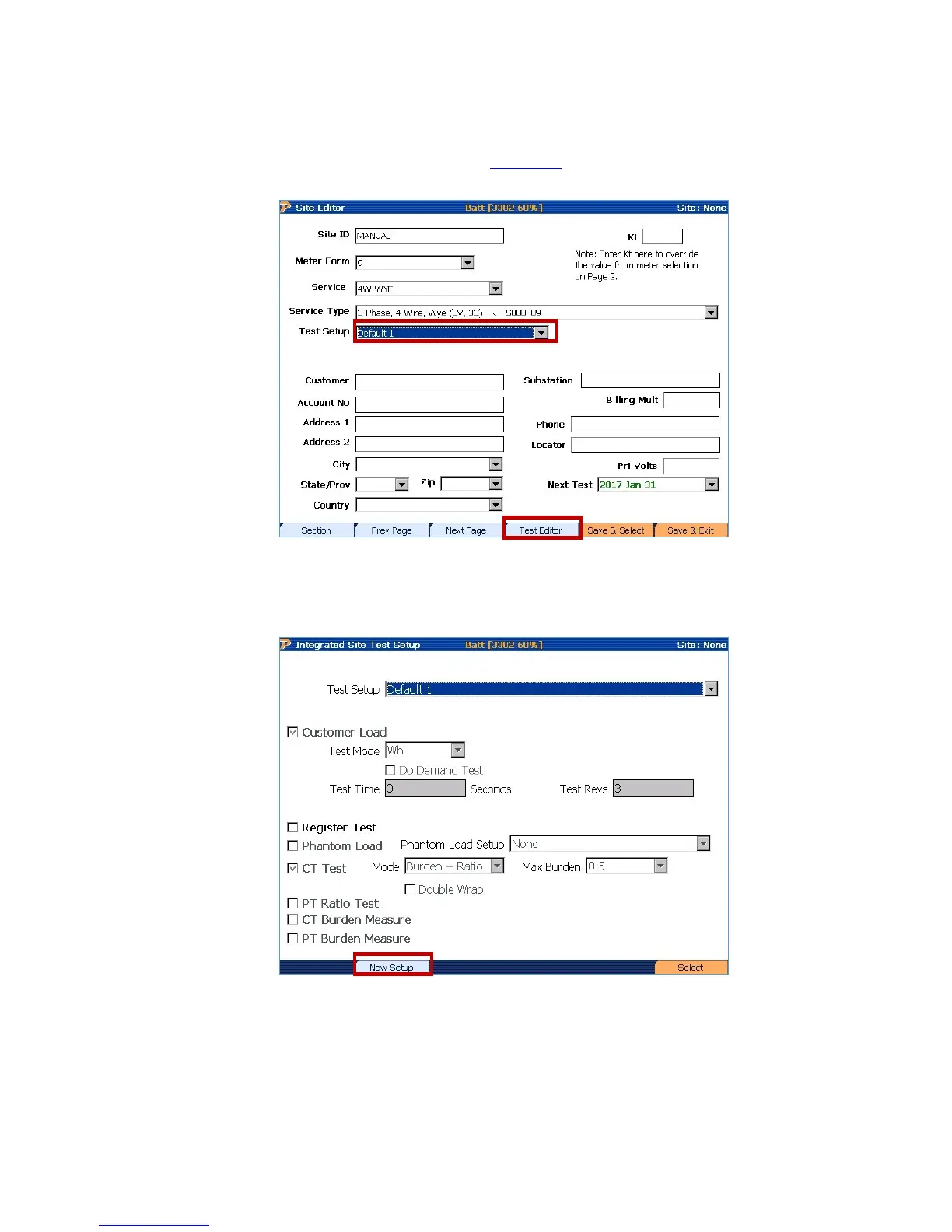

test, during site creation, highlight test setup and press F4-Test Editor.
Press F2 to enter Test Setup.
Create a name for the test that identifies what the test will do. Select all options for your
integrated site. In this picture the integrated site will perform a customer load WH test, a
Phantom load 2.5A ANSI test, and a CT Burden and Ratio Test. When finished, press F6 (Save)
to save the test file.
Rev 1.5 143
