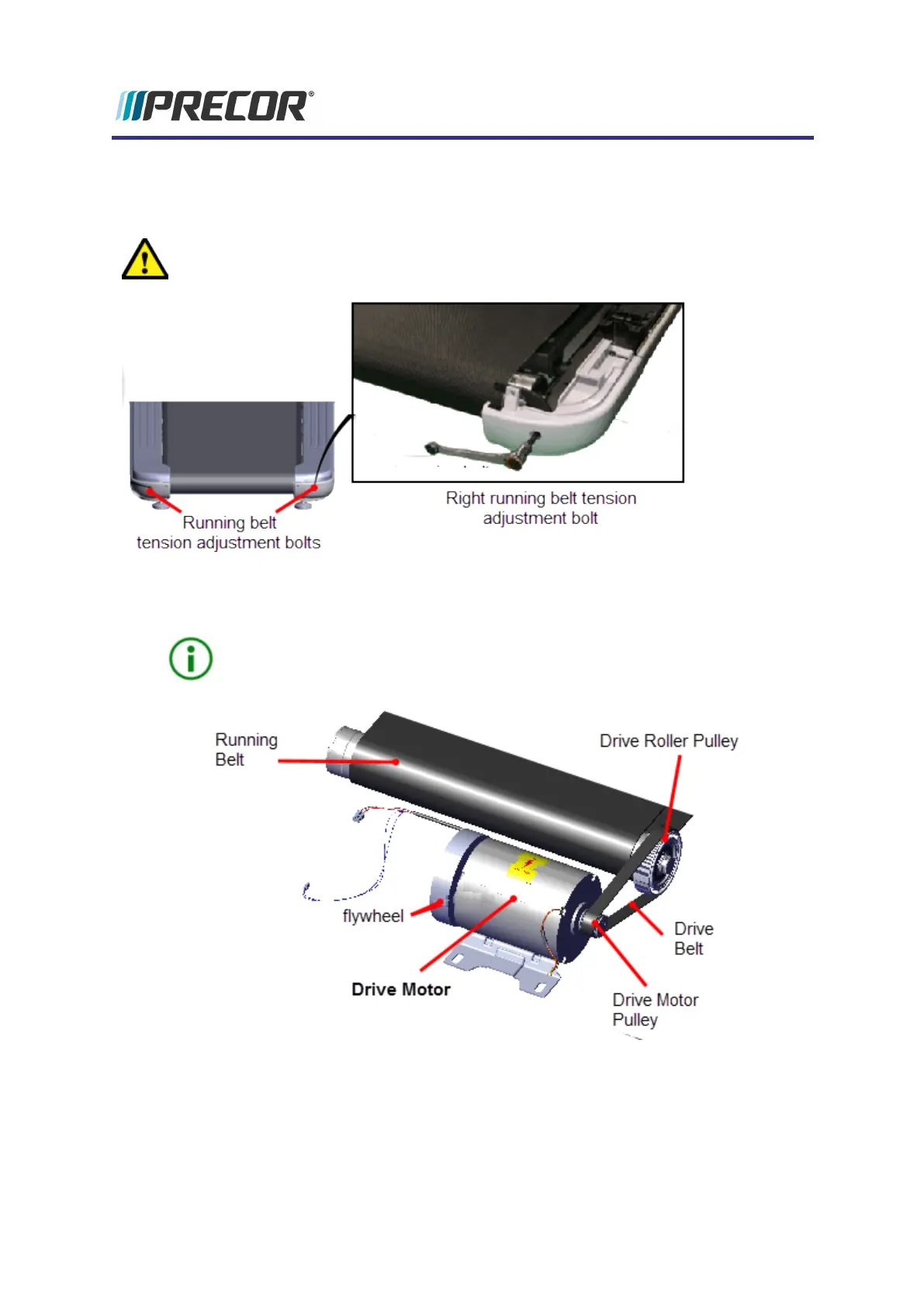

increments to evenly remove left and right tension. Only use hand tools and not power
tools which can easily over or under tension the belt causing damage to the belt and/or
take-up roller tension mechanism.
CAUTION:Only use hand tools to adjust tension. Power tools can easily over and/or
under tension causing damage to the belt and/or tension hardware mechanism.
5. Walk the Drive Belt off the Drive Roller pulley and then the Drive Motor pulley. Tem-
porarily place the Drive Belt on the inside of the Drive Roller pulley.
TIP: Use (turn) the Drive Motor flywheel to make it easier to turn the motor pul-
ley and help walk the belt onto or off the Drive Motor and Drive Roller pulleys.
6. Remove the left side Dust Guard #3 Phillips screw fstener. Retain fastener hardware
for installation.
Experience Series 700 Line Treadmills
95
5 Replacement Procedures
Drive Belt Replacement
