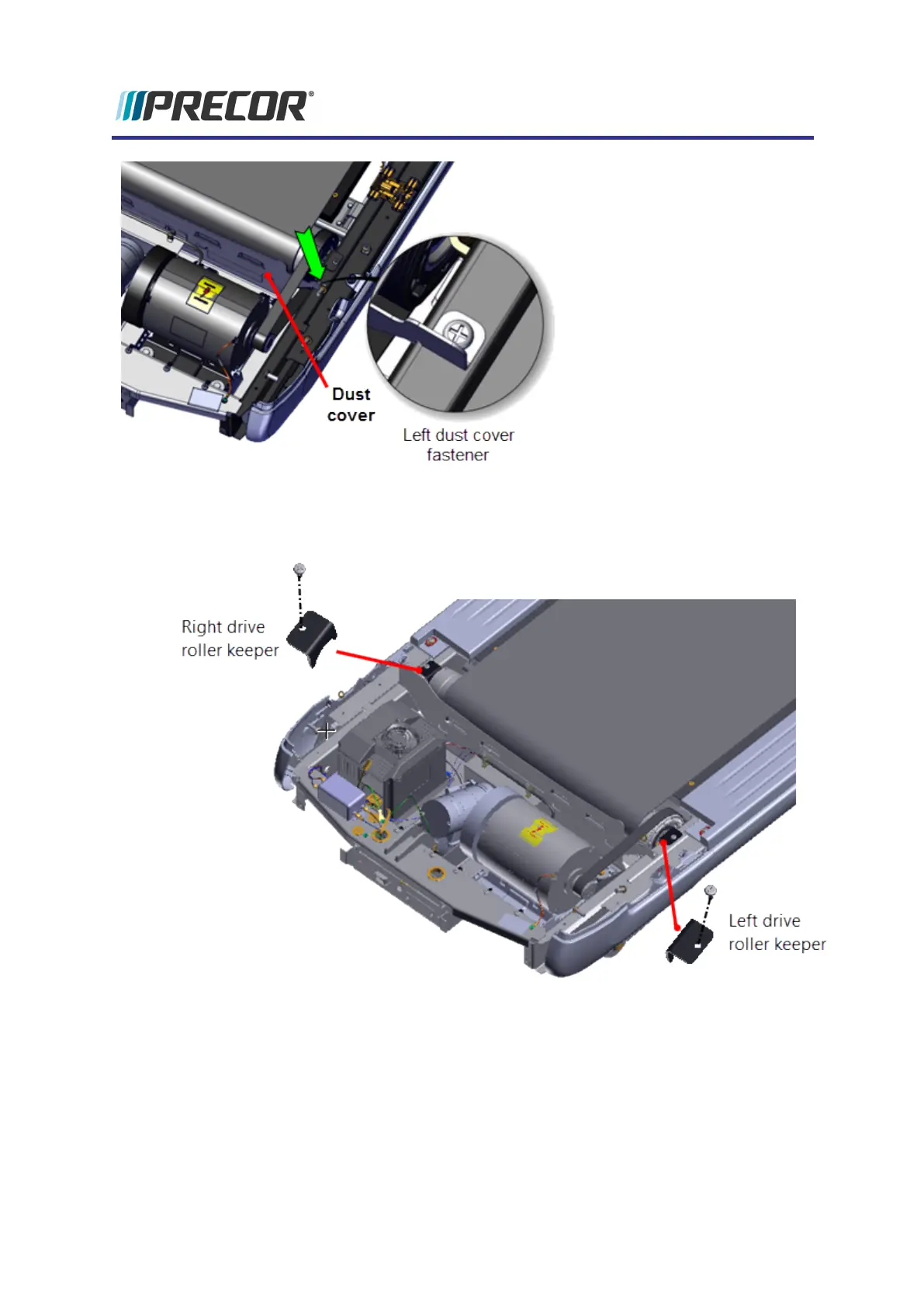

7. Remove the left and right Drive Roller Keepers (one #3 Phillips srew per keeper).
Retain fastener hardware for installation.
8. Lift the Drive Roller enough to remove the Drive Belt off the pulley. Lift the left side of the
Dust Guard enough to slide the belt from the Dust Guard and remove from the treadmill.
Experience Series 700 Line Treadmills
96
5 Replacement Procedures
Drive Belt Replacement
