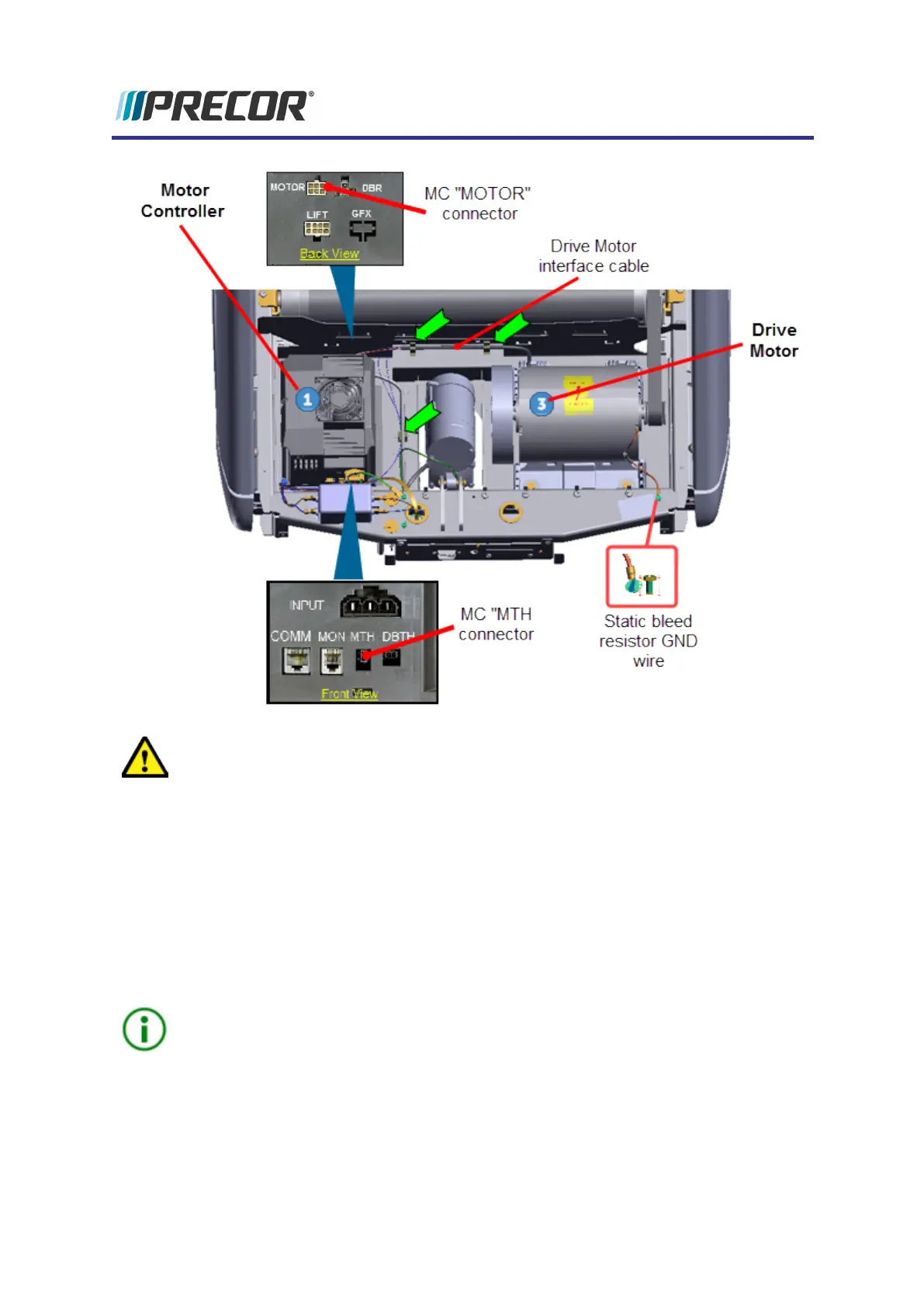

CAUTION:Take your time and be careful when reconnecting the MC cable con-
nectors. Many of the connector contacts are small and can be easily damaged if
incorrectly inserted into the MC connector.
4. Reinstall the MC by sliding the left side base flange under the two left preinstalled
loosened fasteners. Then install the two right side fasteners and fully tighten all four 1/2"
hex fasteners, see "Motor Controller (MC) Replacement" on page84.
5. Route cables and secure using the three frame cable clamps. Recheck all cable MC con-
nections and make sure that the cables have freedom of movement and clear of any
frame or component edges that could pinch or damage the cable wires.
6. Reinstall the drive belt. Place the Drive Belt onto the Roller pulley and walk the belt onto
the Drive Motor pulley.
TIP: Use (turn) the Drive Motor flywheel to make it easier to turn the motor pulley and
help walk the belt onto or off the Drive Motor and Drive Roller pulleys.
7. Connect the power cord and switch the power ON.
8. Verify the Drive Belt alignment and tension to specification. see "Drive Belt Tension and
Alignment Adjustment" on page36.
9. Reinstall the hood cover, see "Hood Cover Replacement" on page56.
Experience Series 700 Line Treadmills
105
5 Replacement Procedures
Drive Motor Replacement
