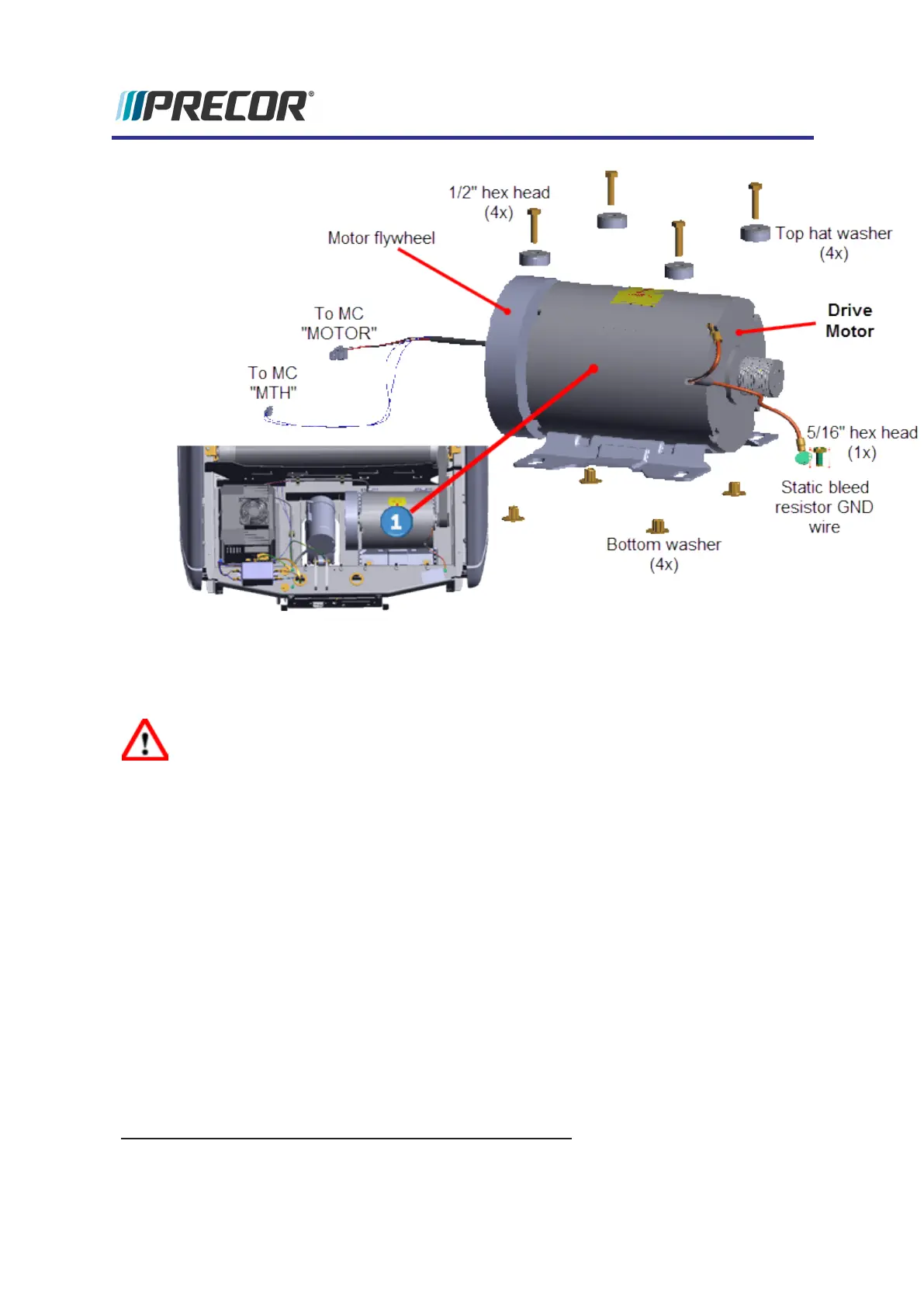

2. Reconnect the motor static bleed resistor ground wire and secure using the 5/16 " hex
head fastener. Fully tighten the fastener to ensure good electrical contact with the frame
weldment.
WARNING:îStatic electric shock hazard. Make sure the motor static bleed resistor
ground wire is secruly connected to the frame. When the ground wire is not con-
nected, touching the motor housing could cause static charge electrical shock and
personal injury.
3. Reconnect the Motor Controller "MTH" and "MOTOR" cable connectors , see "Motor
Controller (MC) Replacement" on pageî84. Make sure the cable connectors have the
correct orientation and alignment before inserting into the MC I/O
1
connector.
1
Input and Output Interface.
Experience Series 700 Line Treadmills
104
5 Replacement Procedures
Drive Motor Replacement
