7. Remove the four 1/2" hex head bolts, plastic top hat washers, and bottom washers
fastener hardware. Remove the drive motor. Retain fastener hardware for installation.
Installation Instructions

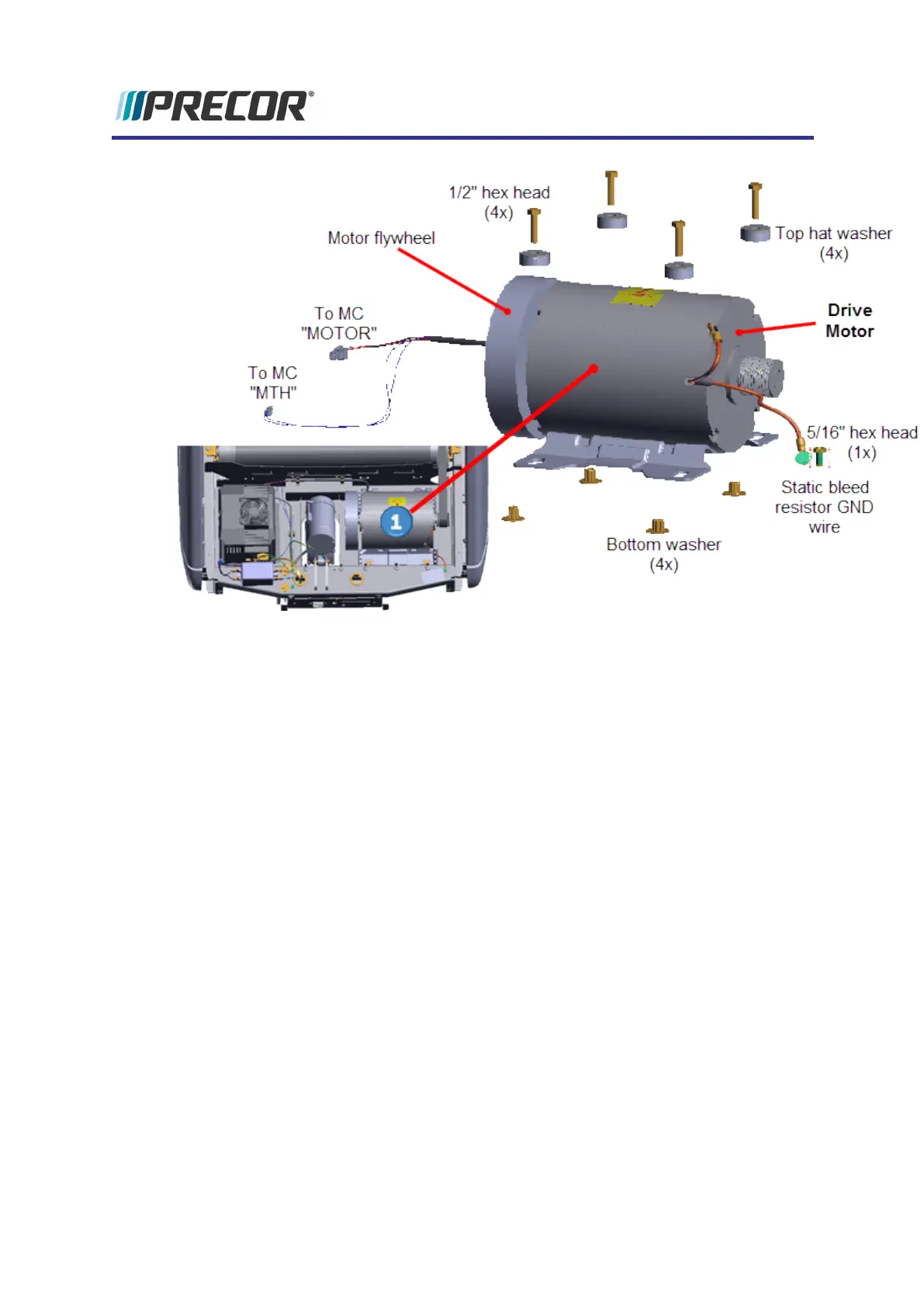

1. Install the replacement Drive Motor into the motor isolation tray and secure using the
four 1/2" hex fasteners, plastic top hat washers, and bottom washers fastener hard-
ware.
a. If you made a motor base install reference mark prior to removal, adjust the Drive
Motor base position to the motor base install reference mark and fully tighten the
four 1/2" hex head fasteners
b. If you did not make a motor base install reference mark prior to removal, position
the motor base to the rear tab stops (minimum belt tension position) and fully
tighten the four 1/2" hex head fasteners.
Experience Series 700 Line Treadmills
103
5 Replacement Procedures
Drive Motor Replacement
