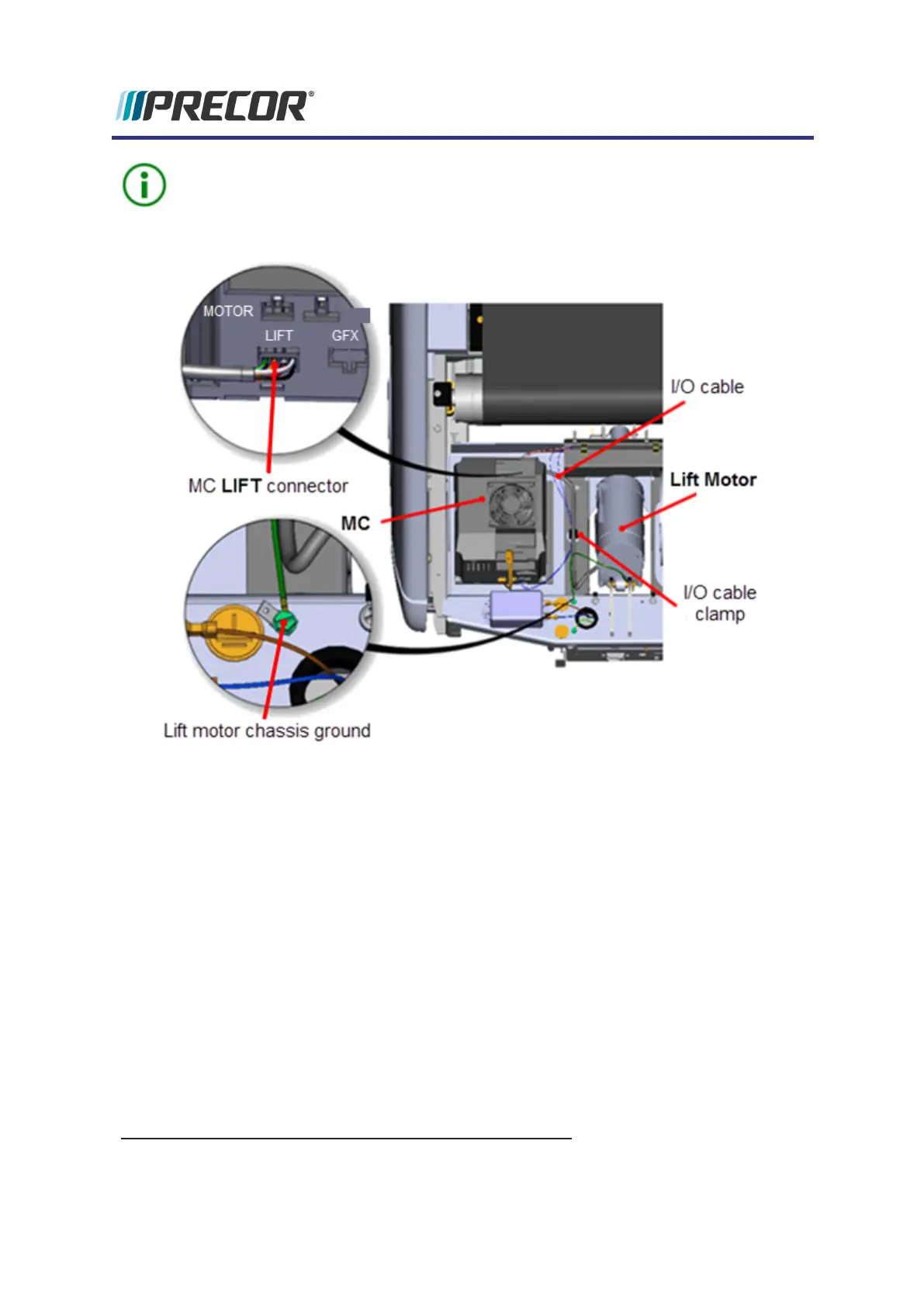

TIP: Remove the MC fasteners so that the MC module can be raised to allow easy
access to disconnect and connect the I/O
1
connectors.
8. Remove the lift motor ground wire (GRN or GRN/YEL) from the frame chassis ground
screw fastener.
9. Remove the extension tube hitch pin and clevis pin fastener hardware from the lift plat-
form mounting bracket. Hold the lift platform while removing the clevis pin and carefully
rest on the floor.
1
Input and Output Interface.
Experience Series 700 Line Treadmills
124
5 Replacement Procedures
Lift Motor Replacement
