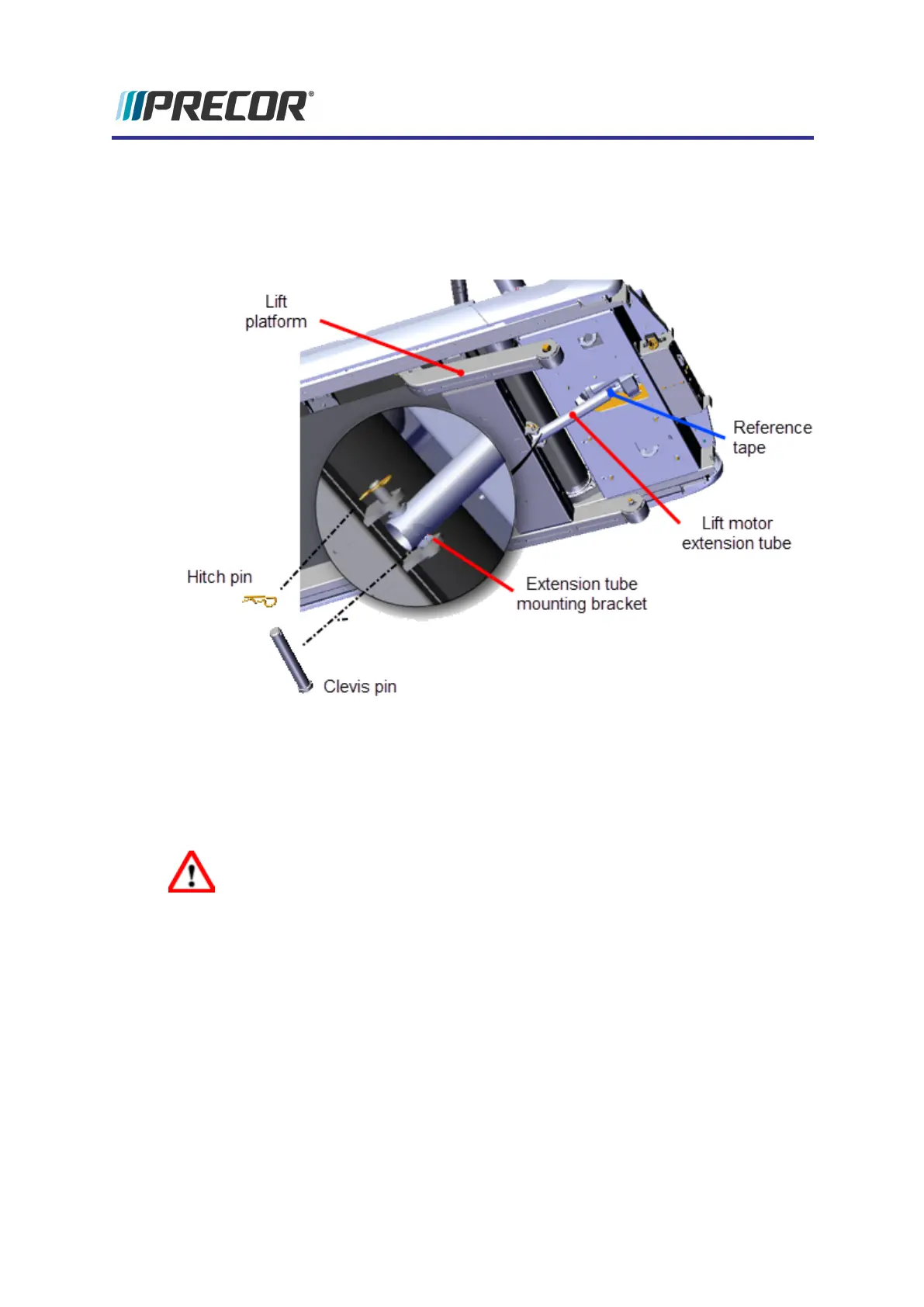

2. Place the extension tube into the lift platform mounting bracket and secure using the
hitch pin and clevis pin. It may be necessary to slightly rotate the extension tube to align
the clevis pin mounting holes. If the extension tube has been rotated during or after it
was removed, recalibrate the lift motor prior to installation, see "Lift Motor Calibration"
on page45.
Remove supports and lower the treadmill
1. Connect the power cord and switch the power ON. Be aware that switching the power
ON will cause the incline platform to move and return to the level "0" position. If you are
using the side access method, see "Side lift platform assembly access" on page49 to
upright the treadmill.
WARNING:Keep hands and appendages clear of the incline platform
assembly before switching power ON. Switching power ON will cause the
incline platform to move to the level "0" Home position.
2. Access the service menu (51765761) and select the INCLINE TEST. Increase the
incline level enough to lift the treadmill frame off the supports.
3. Remove the supports and clear any other items that might either block the treadmill
from lowering or may be damaged as it lowers.
4. Lower the incline to level "0".
Operation Verification
5. Verify the treadmill incline operation from minimum to maximum levels.Make sure that
there are no active Incline function related error codes.
Experience Series 700 Line Treadmills
135
5 Replacement Procedures
Lift Platform Replacement
