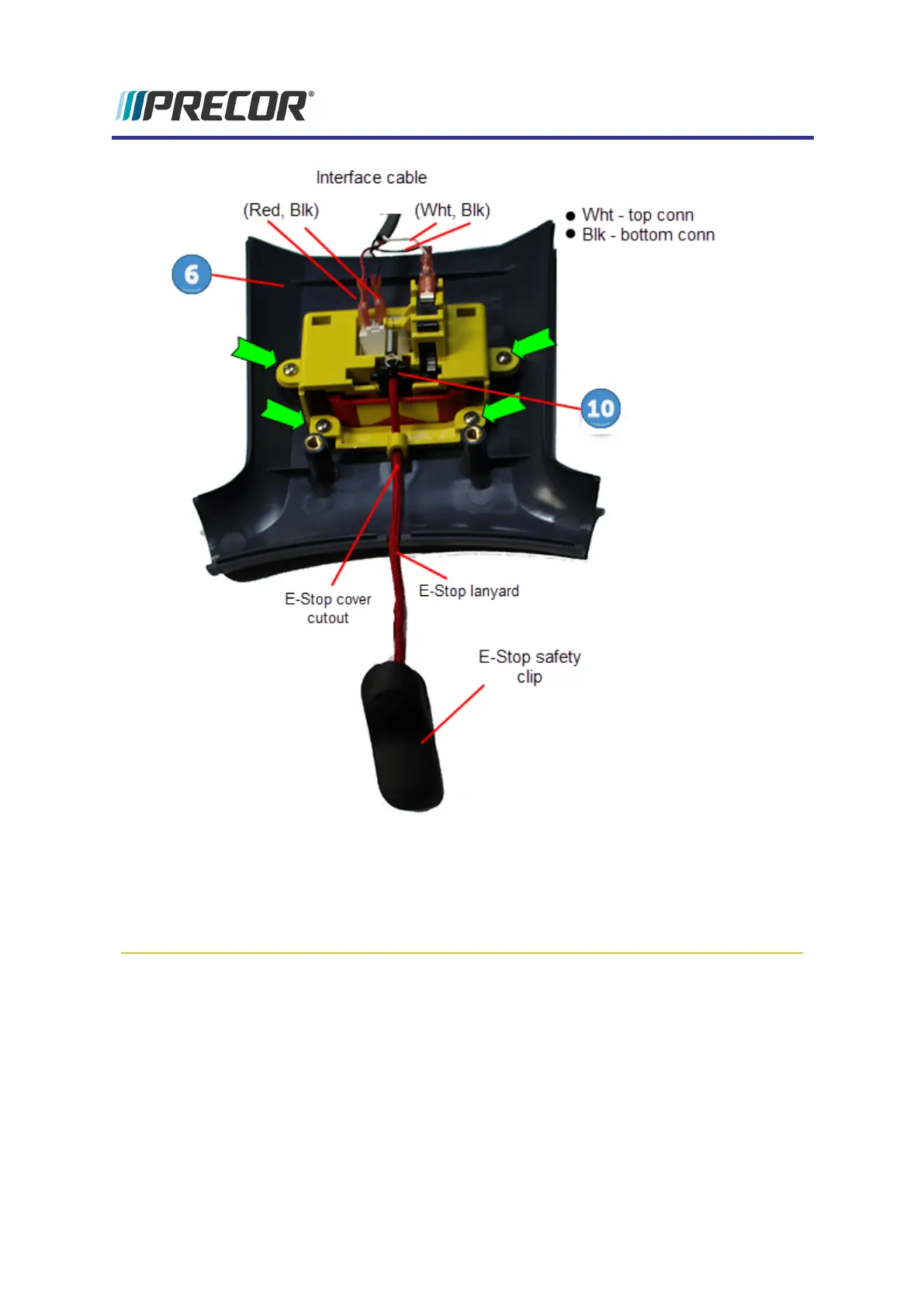

3. Position the dash top cover onto the dash bottom cover and secure using the two #3
Phillips fasteners. Make sure the interface cable is routed correctly and not pinched.
Make sure that the stop safety clip lanyard is correctly positioned in the cover cut out, is
not pinched, and freely moves when pulled and retracted.
Experience Series 700 Line Treadmills
71
5 Replacement Procedures
Covers and Panels Replacement
