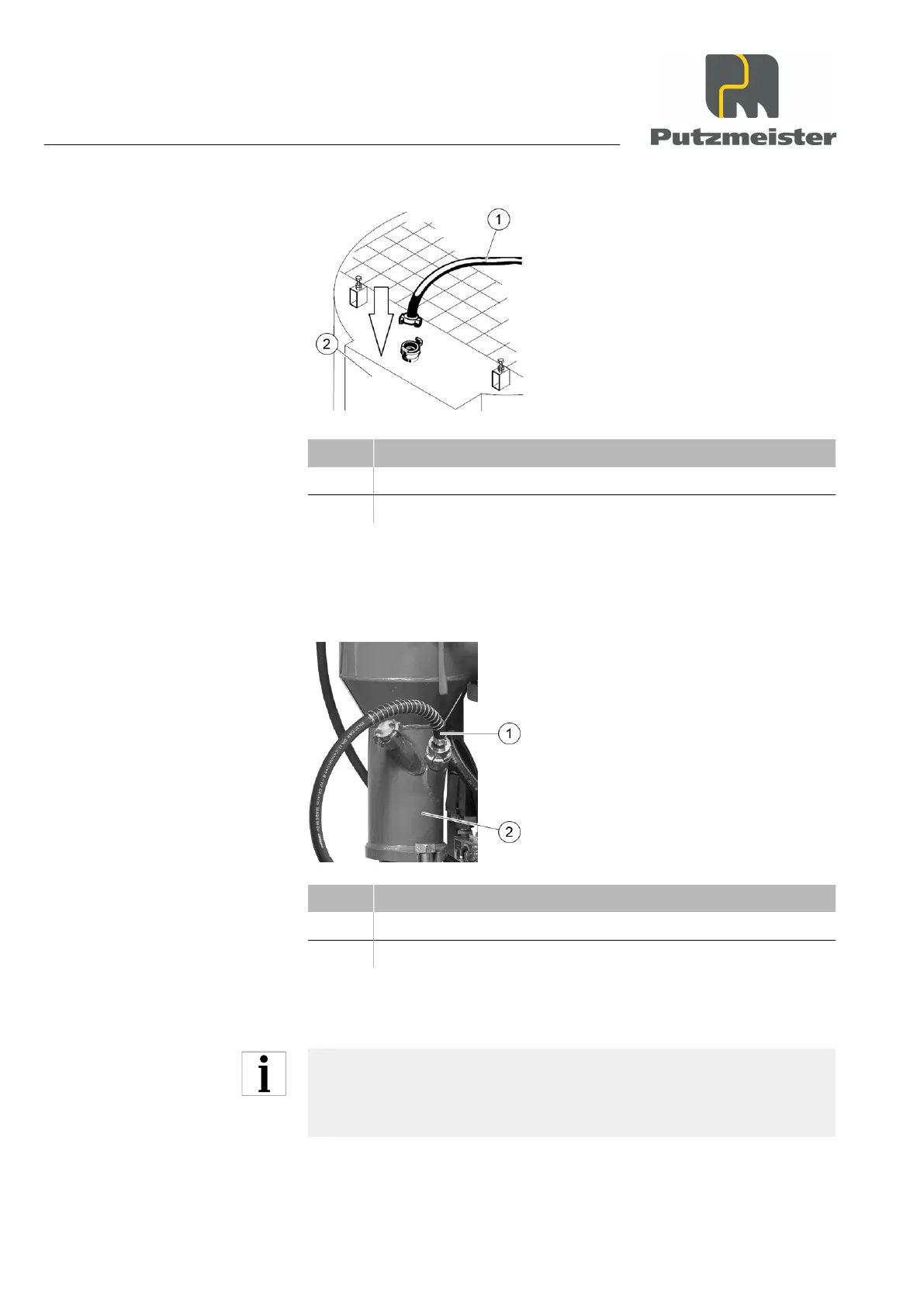

Item Designation
1 Venting hose
2 Reservoir
10. Connect the venting hose for the mixing pump to the reservoir.
11. Position the compressor in the base frame and connect the cable
to the control cabinet.
Item Designation
1 Water hose
2 Mixing pipe
12. Connect the water hose to the lower mixing pipe connection.
The water hose must be connected to the lower mixing pipe con‐
nection to ensure that the mixing pump functions properly. The up‐
per connection is only intended for special functions.
Transport, setting up and connection
4 — 14
