780C Multi-Interface Interoperability Tester – User Guide Page 103
2. Touch select Format Analyzer from the Source Tests.

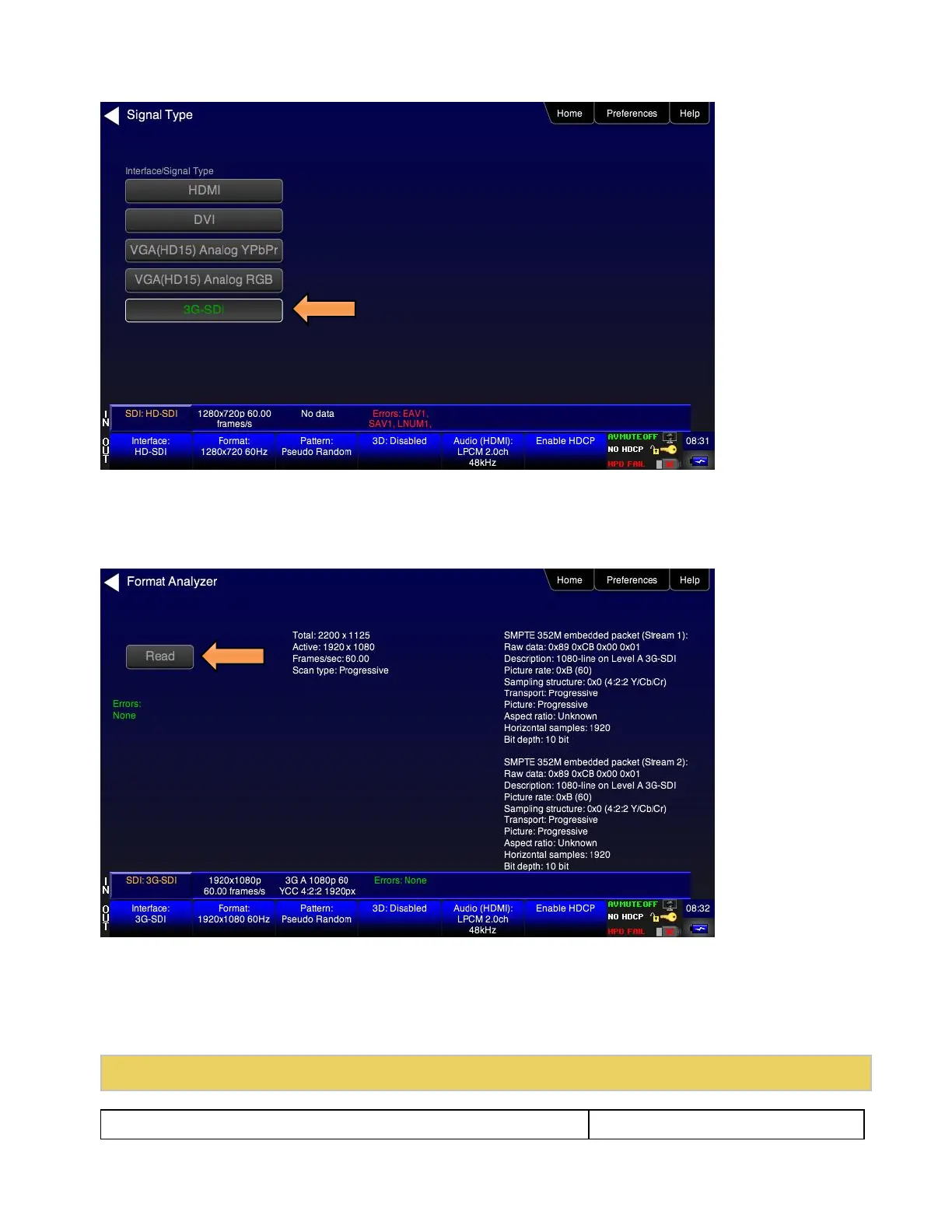

3. Touch select the Read activation button (shown on the screen below) to initiate the test. The results are
shown in the screen shots below. The first screen shows a typical pass results, the second screen shows a
failure condition and the third screen shows a case where the incoming format was unknown.
If one of the timing parameters does not match the value of the parameters in the associated standard
timing, an indication of the error will be shown.
Table 6-2 below describes each field in the Format Analyzer on-screen report for SDI. The basic timing
information is shown on the left of the resulting screen and the metadata data from the far end chip is
displayed on the right.
Table 6-2: Format Analyzer - SDI
