Table 6-2: Format Analyzer - SDI
Timing Parameters (left side)
Description
Total
Total horizontal and vertical resolution including blanking.
Active
Total active horizontal and vertical resolution excluding blanking.
Frames/sec
The frame rate of the HDMI/DVI input source.
Scan Type
Indicates whether the HDMI/DVI input source is progressive or interlaced.
Video Parameters
(right side)
Description
SMPTE embedded Stream 1
Description
Total active lines. E.g. 720.
Picture Rate
Frames per second: E.g. 60
Sampling Structure
Video Type and Sampling: YCbCr 4:2:2
Scan: Progressive or Interlaced
Bit Depth
Color depth plus overhead: 10 bits
SMPTE embedded packet Stream 2
Alignment level
6.2 Viewing Source Data Island Packets on HDMI and HDBaseT
This subsection describes how to view the HDMI/HDBaseT data island packets from an HDMI source device or
HDBaseT output of a repeater or distribution device.
6.2.1 Configurations for Viewing the Data Island Packets from an HDMI or HDBaseT Source Device

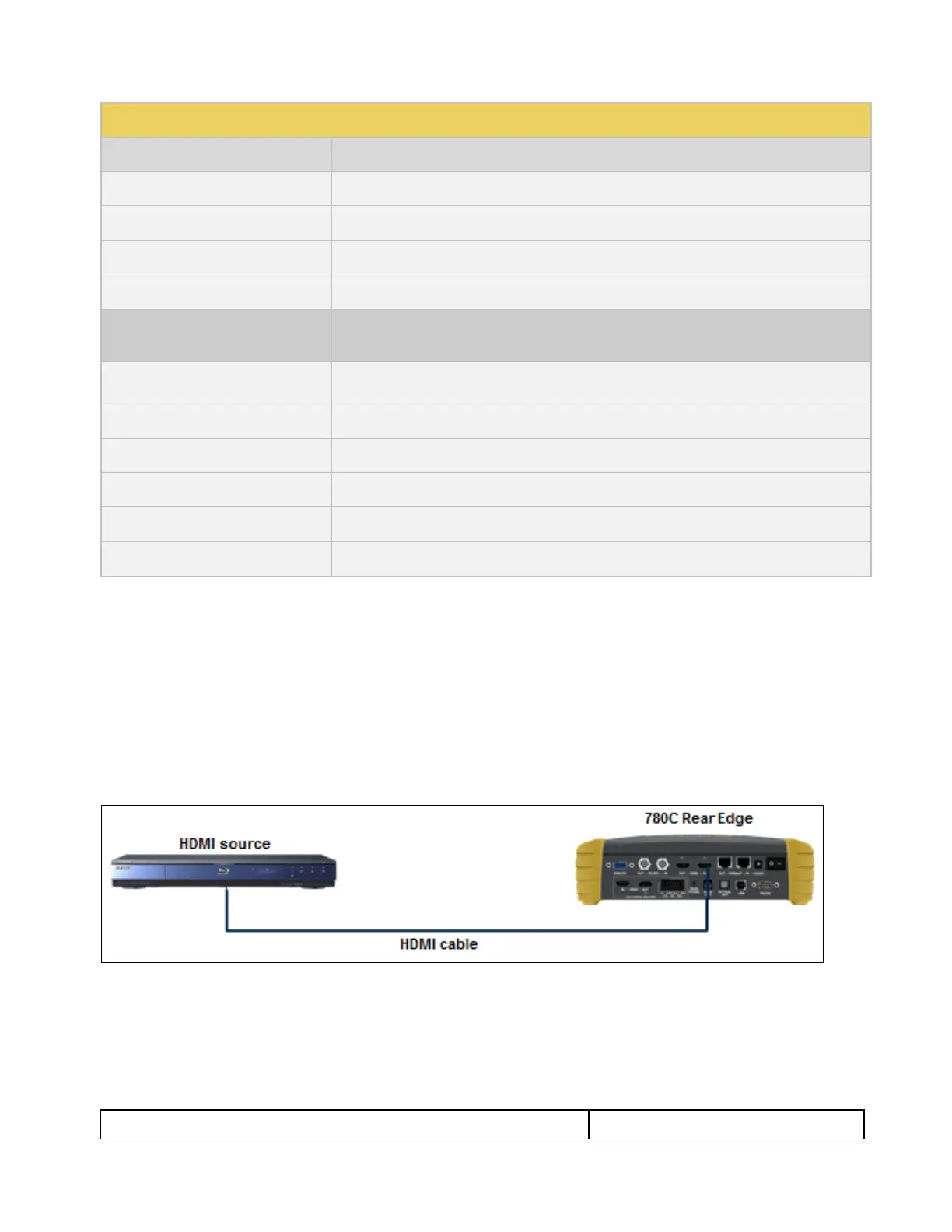

The 780C’s HDMI/HDBaseT input ports acts as “reference” HDMI sink devices. Therefore they enable you to
emulate a known good HDMI sink device to conduct a test on a source device. You can view the data island
packets with the source device connected directly to the 780C. This test configuration is shown below for HDMI
and HDBaseT (second illustration).
