Quantum Data 780C - Using Custom Test Image Packs

780C Multi-Interface Interoperability Tester – User Guide Page 41
September 29, 2014
Revision A1
Table 4-3: Test Patterns
Pattern Name
Variant
Options
Range of Values
assign it the same name.
Horizontal Movement
 Stop
 Slow
 Medium
 Fast
4.4 Using Custom Test Image Packs
The 780C provides licensed image packs for certain sets of test images. You need to have a license key to use
these custom test image packs. You can arrange to get access to them by contacting Quantum Data customer
support at: http://www.quantumdata.com/support.
Note: The custom test image packs are bitmap images. Bitmap images are RGB and will not display properly
on the 3G-SDI output.

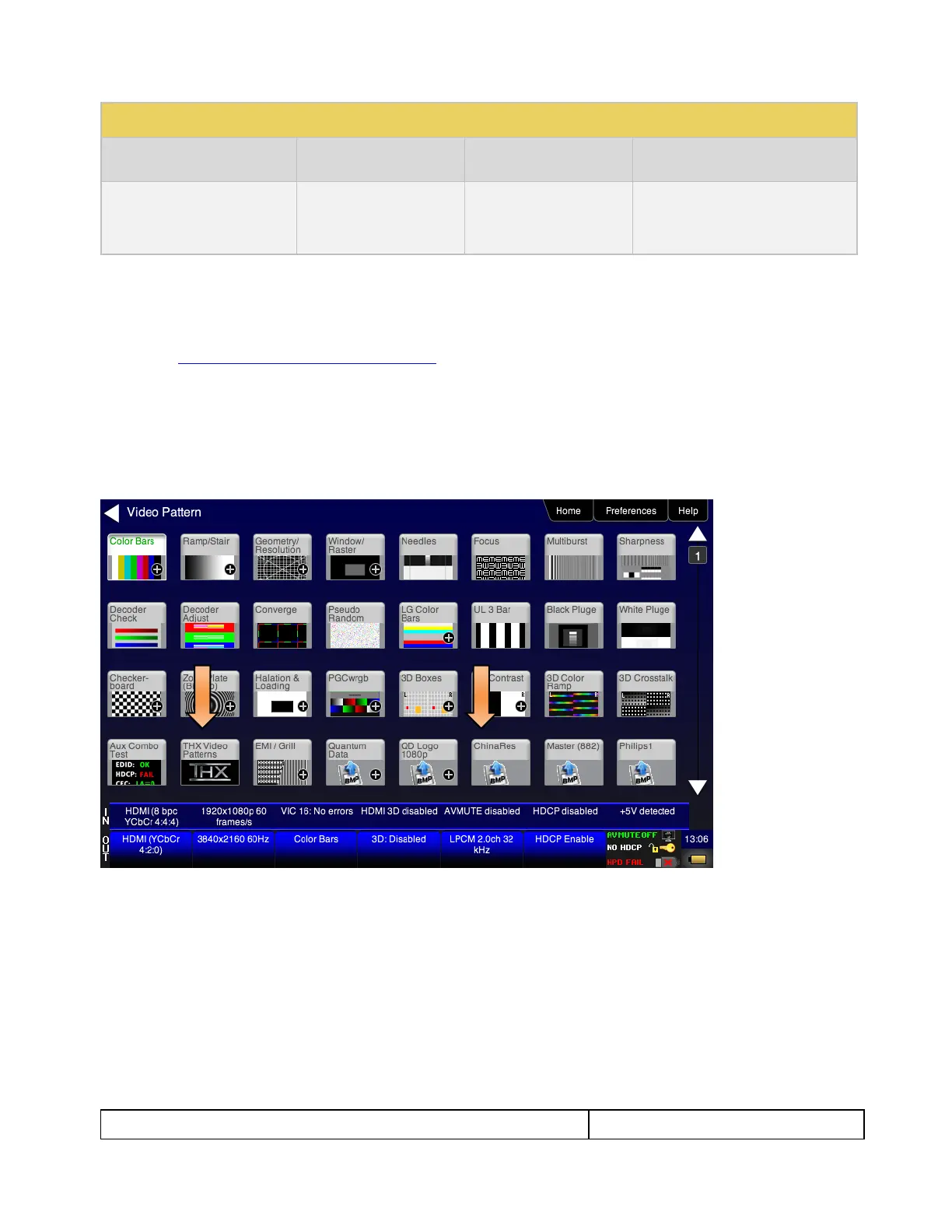

When you purchase an image pack it appears as an icon at the end of the list of Test Patterns. A sample
screen is shown below (Philips1, ChinaRes, Master). You simply select one of the test patterns (e.g. ChinaRes
in the screen example below). They will take a few seconds to load. They will load at the resolution of the
format that you have selected.
Refer to the tables below for a description and depiction of the Image Packs currently offered.
