780C Multi-Interface Interoperability Tester – User Guide Page 71

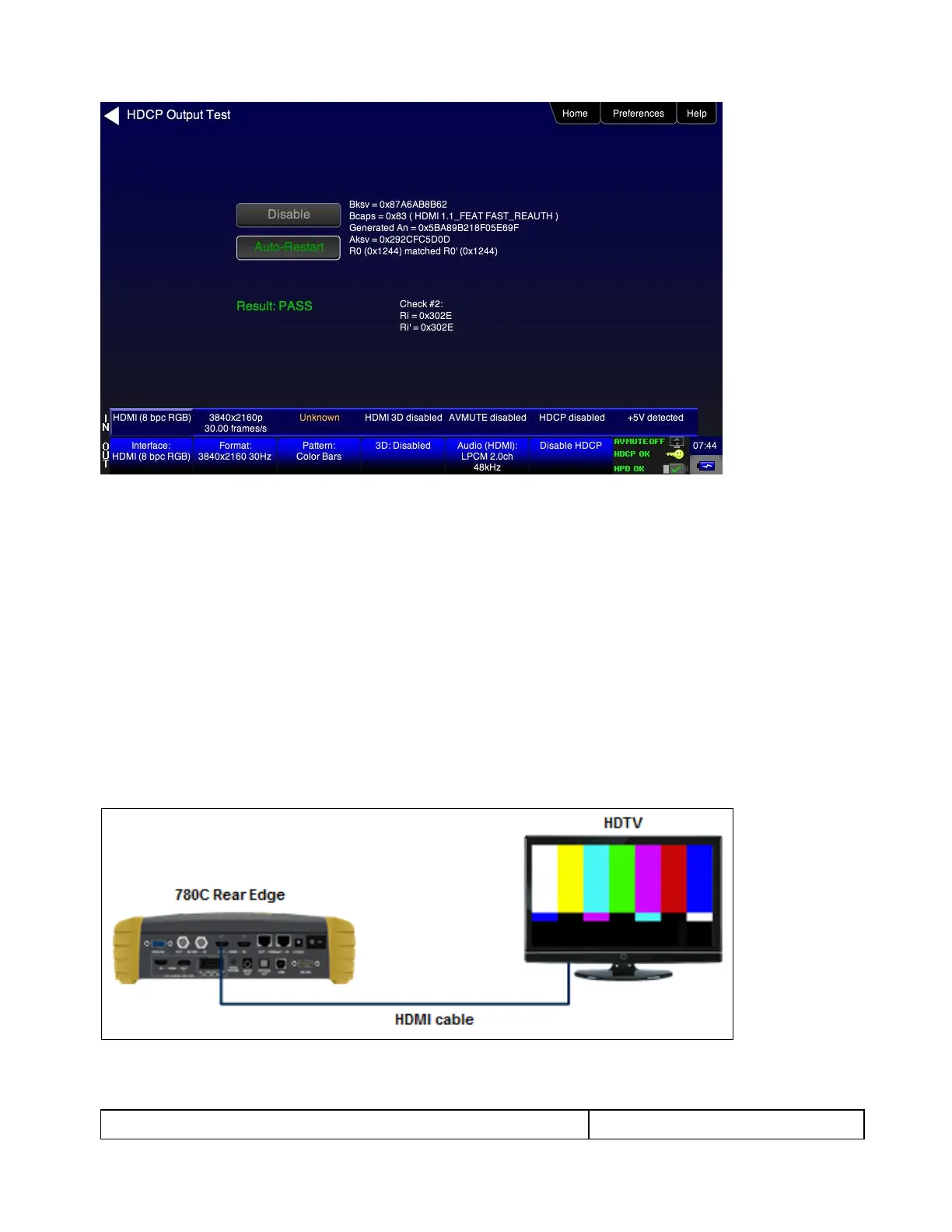

5. Touch select Auto-Restart to restart HDCP authentication.
Alternatively you can run this test from the command line as follows:
HDCP?
0 // indicates pass (1 indicates a failure)
5.2 Verifying the EDID on an HDMI, HDTV, HDBaseT Projector or HDMI
Repeater Device
This section provides procedures for verifying and viewing the EDID of an HDMI/HDBaseT HDTV, projector or
an HDMI repeater device such as an A/V receiver. You can also compare two EDIDs.
5.2.1 Configurations for Verifying and Viewing the EDID on an HDMI Sink Device
The following illustrations depict the typical test setups. You can either connect directly to an HDTV or to a
repeater device connected to an HDTV.
