780C Multi-Interface Interoperability Tester – User Guide Page 87
September 29, 2014
Revision A1
6.1.2 Connection Configurations for Testing HDBaseT Outputs on Repeater and Distribution Devices
The 780C’s HDMI input port acts as a “reference” HDBaseT sink device. Therefore it enables you to emulate a
known good HDBaseT sink device to conduct a basic confidence test of an HDBaseT output of an HDBaseT
distribution or repeater device. This test ensures that you are receiving a valid HDBaseT video signal by
displaying the timing of the incoming signal and informing you whether it is HDCP encrypted or not. You can
run this test in three configurations:
 Source device connected to the 780C HDBaseT IN connector through a repeater device.
 780C HDBaseT OUT and HDBaseT IN ports acting as both as a known good source and a known good
sink connect to both the input and output of the repeater device.

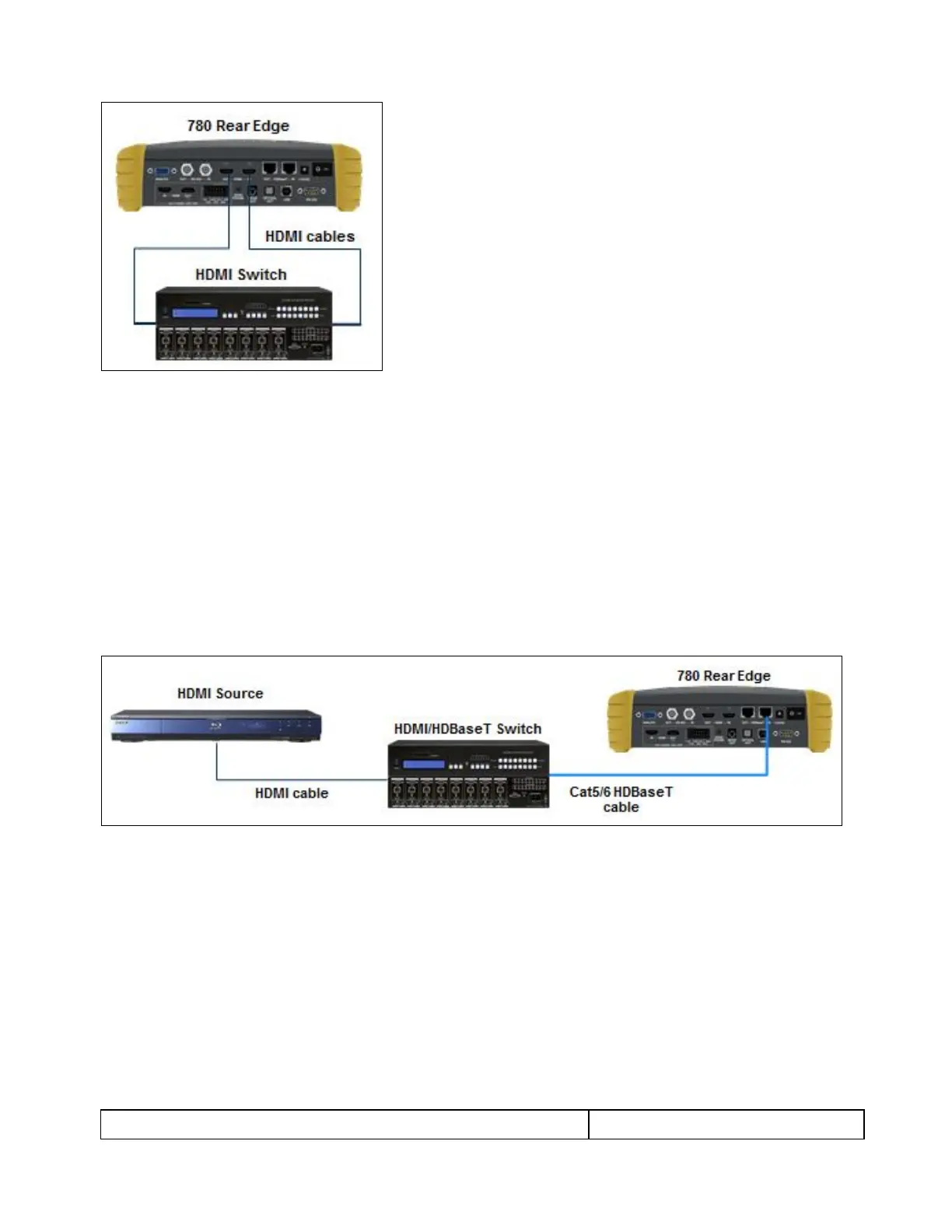

In all cases the 780C is emulating a sink to test an upstream source. These test configurations are shown
below.
