Quantum Data 780C User Manual

780C Multi-Interface Interoperability Tester – User Guide Page 173
September 29, 2014
Revision A1
9.1.2 Procedures for Running an HDMI/HDBaseT Cable or Network (“Repeater”) Test
This subsection provides procedures for performing an HDMI cable test or a test of an HDMI network
comprised of repeaters, splitters, extenders, switches, etc.

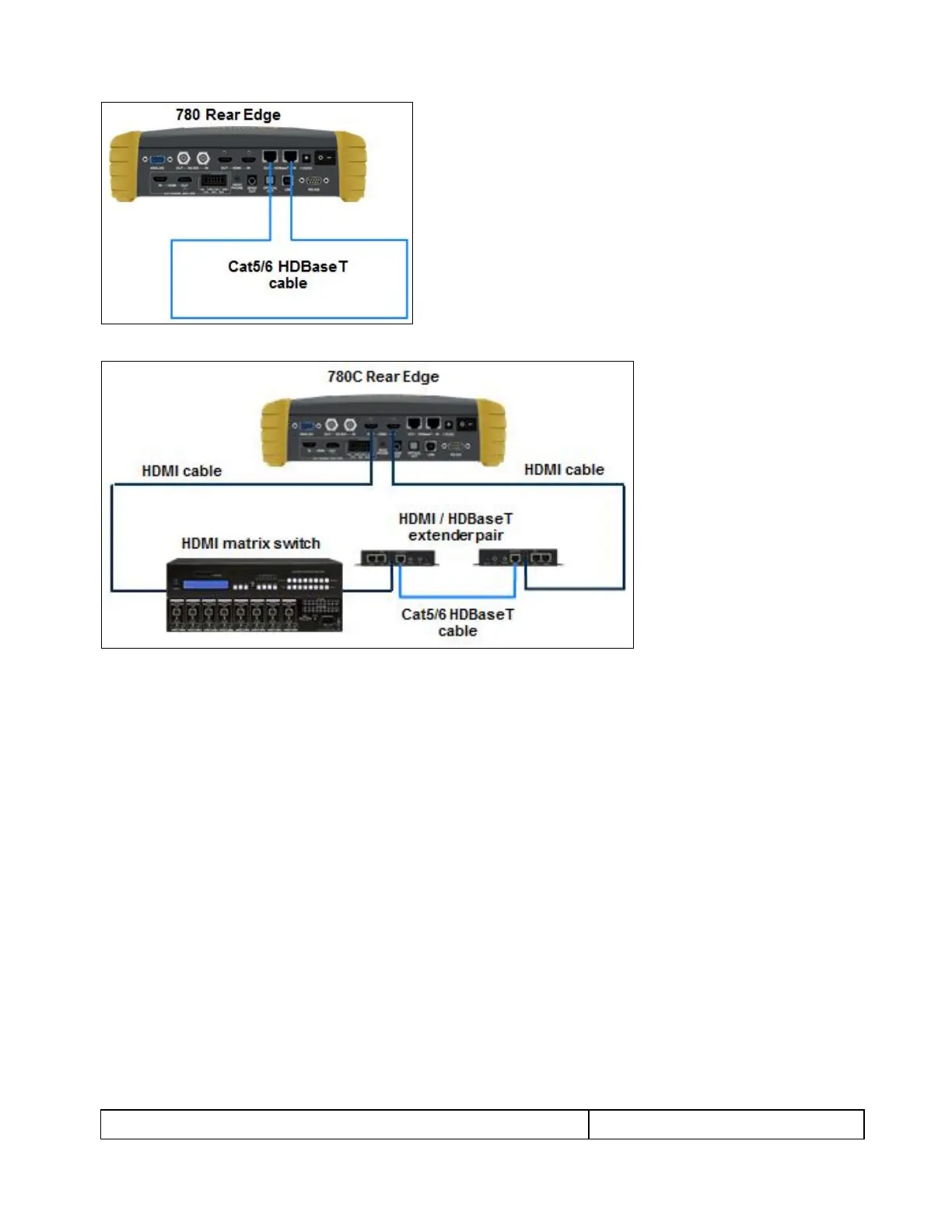

1. For testing an HDMI cable, connect one end of the HDMI cable to the 780C HDMI OUT connect and the
other end to the 780C HDMI IN connector.
For testing an HDBaseT cable, connect one end of the HDBaseT CAT cable to the 780C HDBaseT OUT
connect and the other end to the 780C HDBaseT IN connector.
For testing an HDMI repeater device such as a repeater, video or audio processor, extender, switch, etc,
connect the 780C HDMI OUT connector to the repeater device input and connect the 780C HDMI IN
connector to the repeater device output.
2. Touch select Cable/Repeater Test from the Home menu shown below.
