780C Multi-Interface Interoperability Tester User Guide Page 105
September 29, 2014
Revision A1
6.2.2 Procedures for Viewing the HDMI/HDBaseT Data Island Packets from a Source Device
Use the following procedures to view the data islands packets from an HDMI source device or output of an
HDBaseT distribution device.

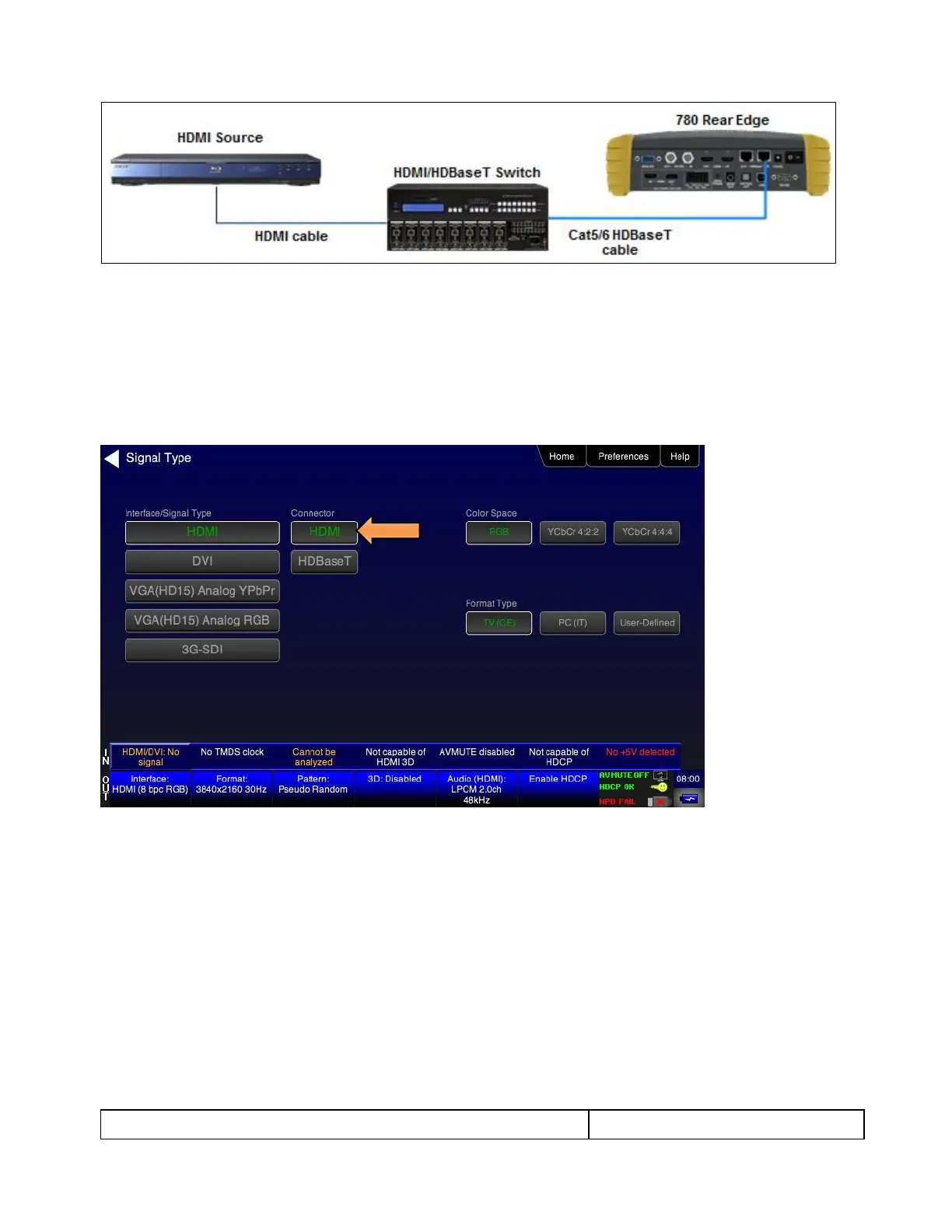

1. Connect the HDMI/HDBaseT system devices to the 780C as shown in the diagram above. The HDMI
source device output is connected the 780C HDMI IN or HDBaseT IN connector.
2. Enable the HDMI or HDBaseT as the active digital interface input.
3. Touch select Packet Viewer from the Home menu shown below.
