780C Multi-Interface Interoperability Tester User Guide Page 68
September 29, 2014
Revision A1
5 Using the 780C Test Instrument to Test HDMI and HDBaseT Protocols
on Sink Devices
This section provides procedures for testing HDMI or HDBaseT sink devices such as HDTVs, projectors and
inputs on repeater devices.
5.1 Testing HDCP on an HDMI, HDBaseT HDTV, Projector or Repeater
Device
This section provides procedures for testing HDCP on an HDMI or HDBaseT equipped HDTVs, projectors or
inputs on repeaters or distribution devices. The HDCP authentication test initiates and HDCP authentication
with the sink device (with or without a repeater) and displays the AKSV and BKSV values, the An value, the Ro
values and the Ri values. A pass/fail indication is provided as well.
5.1.1 Configurations for Testing HDCP on an HDMI Sink Device
You can run this test in two configurations.
780C HDMI OUT port connected directly to an HDTV input
780C HDMI OUT port connected to a repeater device which is then connected to a downstream HDTV.

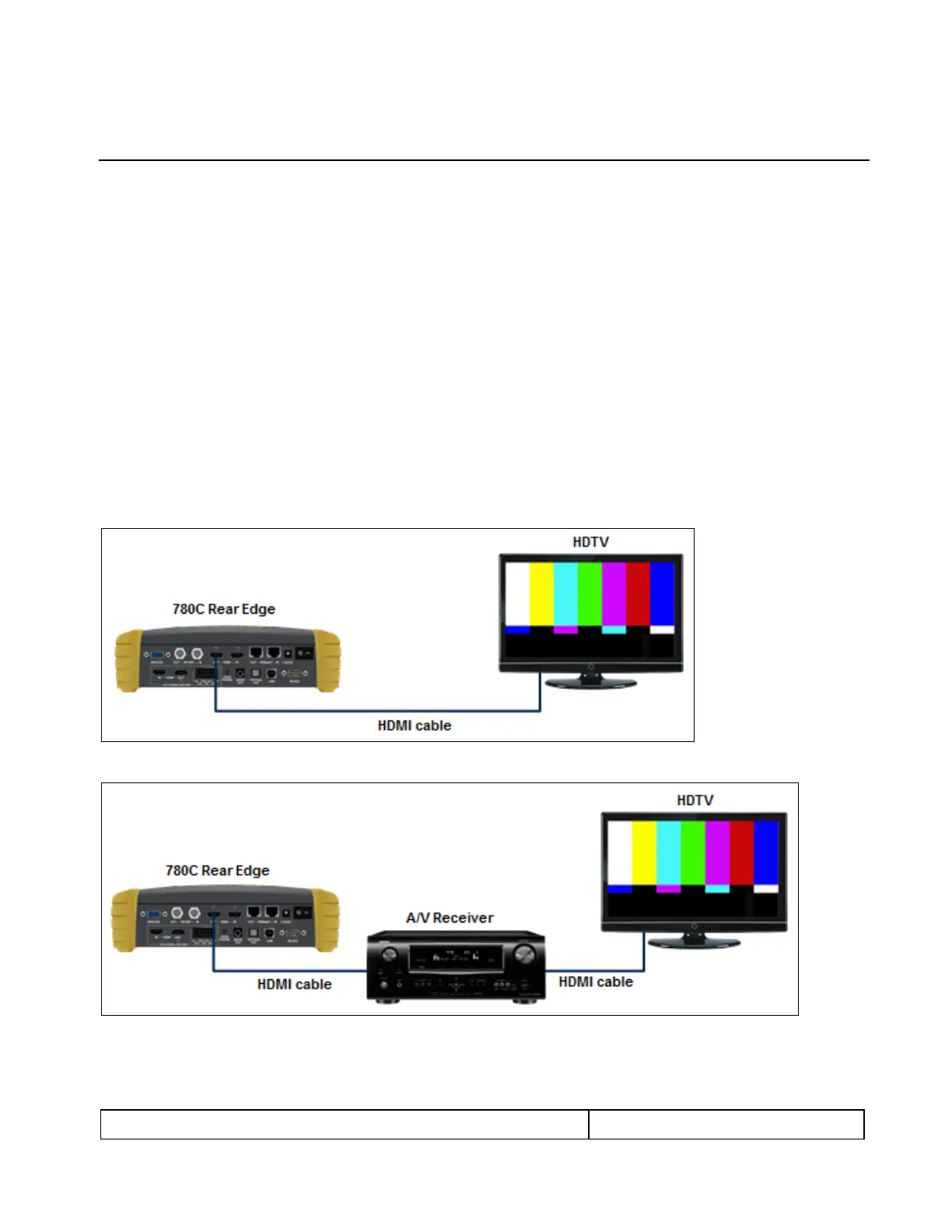

These configurations are shown below:
5.1.2 Configurations for Testing HDCP on an HDBaseT Sink Device
You can run this test in two configurations.
