780C Multi-Interface Interoperability Tester – User Guide Page 144
7.3.3 Procedures for Testing Repeaters (Repeater Test) with the Installer Utility
Use the following procedures to test the video from an HDMI/HDBaseT repeater device with the Installer Utility.

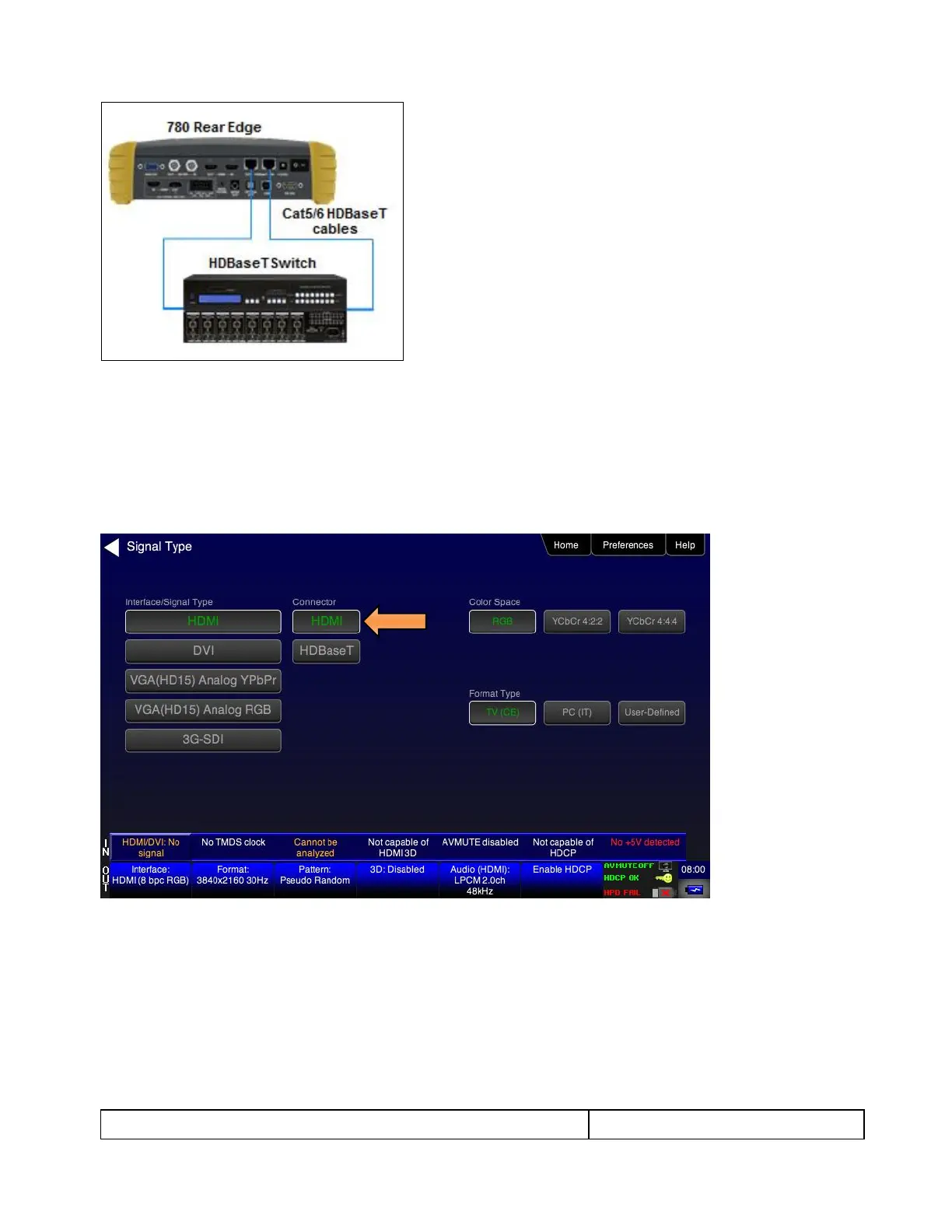

1. Make the physical connections between the 780C HDMI/HDBaseT IN and OUT ports and the sink device
under test using the configuration instructions above or by following the instructions on the screen.
2. Enable the HDMI or HDBaseT as the active digital interface input as shown below.
3. Touch select Repeater Test from Installer Tests from the Home menu shown below.
