780C Multi-Interface Interoperability Tester – User Guide Page 6

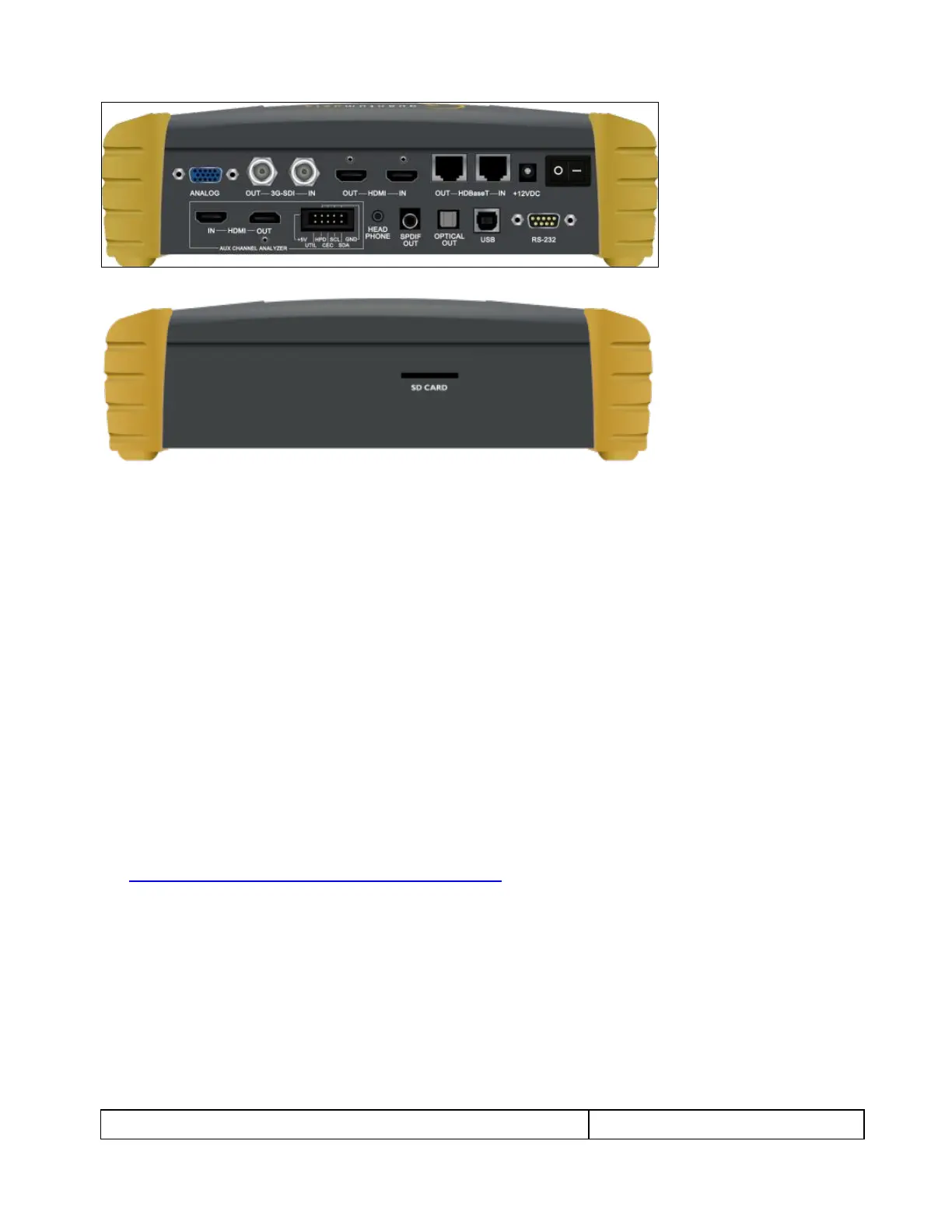

Note: 780C Image above shows the front edge with the SD Card slot which is used for storing and loading
bitmaps, reports and for recovery in the event of a failed upgrade.
1.4 Overview of 780C features
The 780C Multi-Interface Interoperability Tester provides a rich set of features. The following is a list of
available options and the key features and benefits of each:
1.4.1 Standard features
The following features are standard with the 780C:
Pattern testing for HDTVs - Enables you to conduct pattern testing for an HDTV through the digital video
and analog component outputs. Provides dozens of patterns with variation options on most.
Custom bitmaps and pattern scrolling – The 780C enables you to import bitmaps for use in pattern testing.
You can initiate a scroll of these bitmaps with user control over the rate and extent of horizontal movement.
Create custom formats using the standalone Format Editor.
3D bitmap pattern testing – The 780C enables you to import 3D bitmaps for use in pattern testing. You can
create your own bitmaps from any stereoscopic images you have using the Quantum Data Bitmap
Conversion Tool available from the Quantum Data website:
http://www.quantumdata.com/apps/3D/BMP_conv.asp. There are some sample 3D bitmaps on this
webpage as well.
Video confidence test of an HDMI, HDBaseT or 3G-SDI source device – The 780C enables you to view the
incoming video on the 780C’s LCD screen. 780C enables the incoming image to be routed out the digital
video output connector if unused. 780C also enables scrolling to view an entire unscaled 4K image
received on the HDMI and HDBaseT input ports.
Audio confidence test of an HDMI, HDBaseT or 3G-SDI source device – The 780C enables you to listen to
the incoming LPCM audio through the 780C’s headphone jack on the front edge or through an embedded
speaker. There will be no sound when compressed audio is received on the incoming HDMI stream.
Audio Return Channel confidence test of an HDMI 1.4 A/V receiver – The 780C can emulate an ARC Tx
device on its HDMI IN port. Note: The 780C does not support enabling ARC on the AV receiver, therefore
you will have to enable ARC through some other means.
