780C Multi-Interface Interoperability Tester – User Guide Page 112
6.4.2 Configurations for Testing Audio on the Output of an HDBaseT Distribution Device
With the 780C you can run a test on the HDMI audio from a source device. This test shows you the decoded
audio IEC header information, the audio infoframes and the audio sample packet header information
transmitted from the connected source device which could be a DVD, set top box or the output of an A/V
Receiver. You can run this test in three configurations:
Source device connected to the 780C through an HDBaseT distribution device.
780C HDBaseT OUT and HDBaseT IN ports acting as both as a known good source and a known good
sink connect to both the input and output of the repeater device.

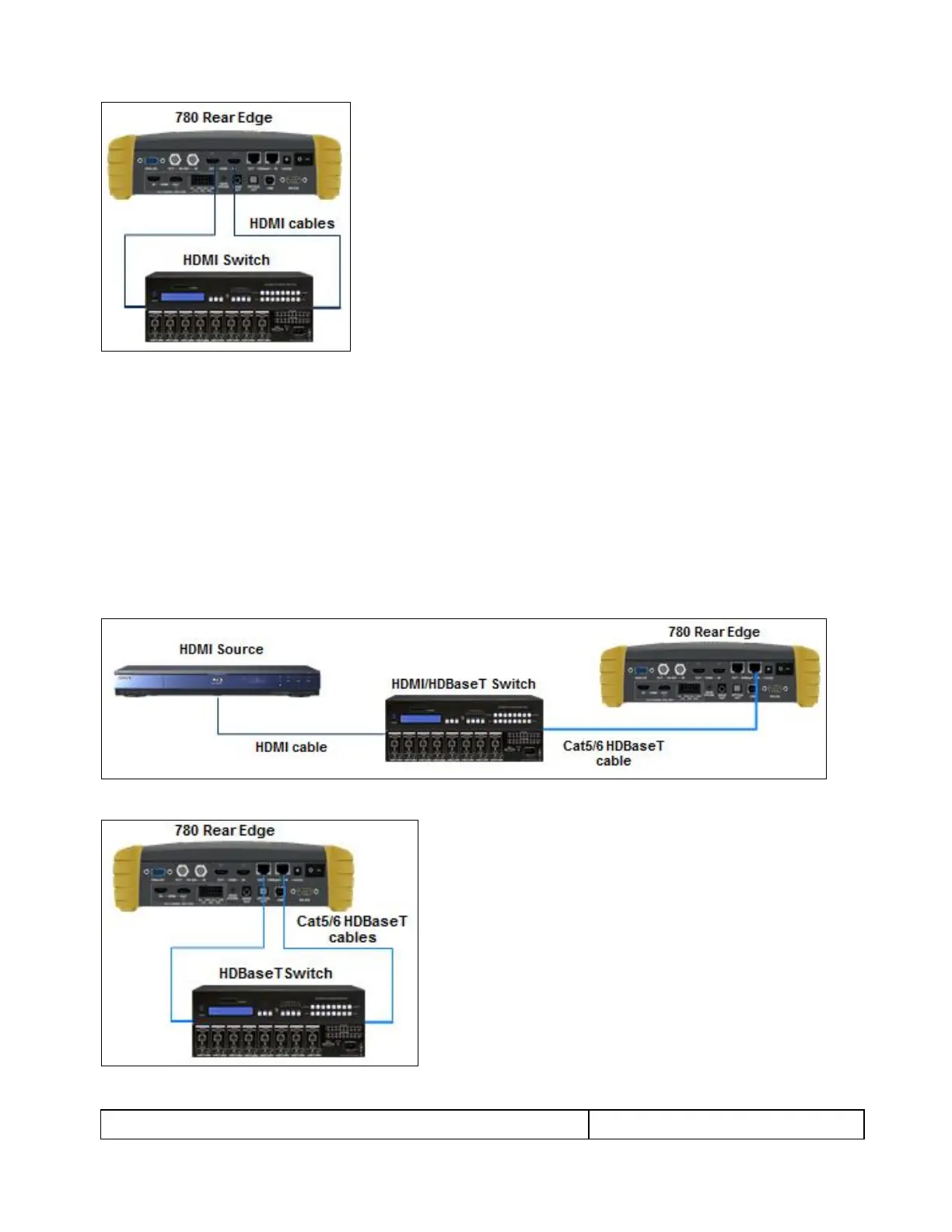

In all cases the 780C is emulating a sink to test an upstream source. In the third configuration, the 780C is
emulating both an HDBaseT source and sink. These test configurations are shown below.
