780C Multi-Interface Interoperability Tester User Guide Page 29
September 29, 2014
Revision A1

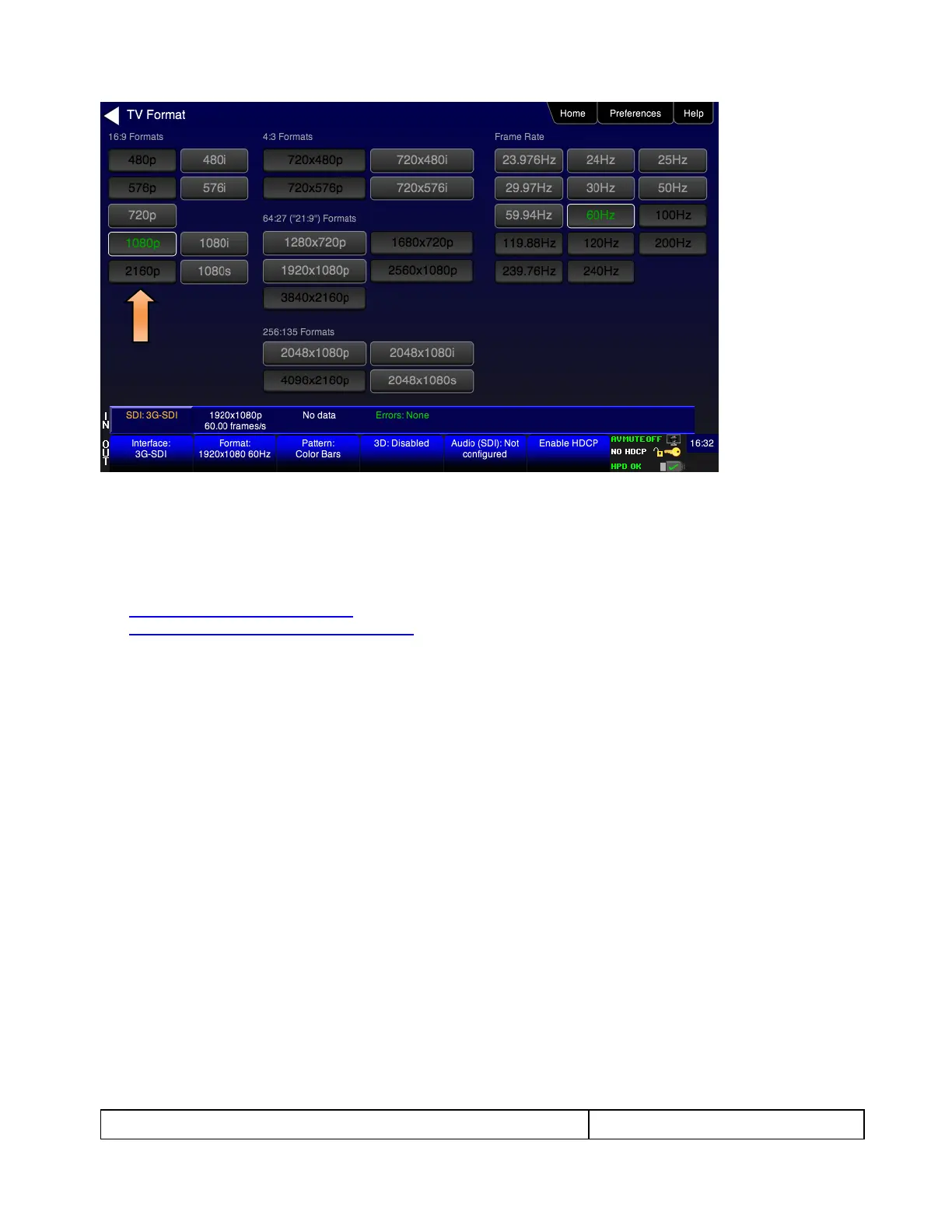

2. Touch select the desired format and Frame Rate (example 2160p at 30Hz above).
4.3 Rendering Test Patterns on an HDTV
This subsection describes how to render test patterns on an HDTV. You will first have to complete the previous
procedures:
Making the physical connections
Selecting the Signal Type and Resolution
4.3.1 Procedures for Outputting Test Patterns
The procedures below cover cases where there is a direct connection between the 780C and the HDTV and
also where the 780C is connected to an HDTV through a repeater device.
1. From the Home screen on the 780C display, touch select the Video Pattern status and activation button
on the Status Bar as shown below.
