780C Multi-Interface Interoperability Tester User Guide Page 18
September 29, 2014
Revision A1
HDCP Status
Indicates whether the incoming video on the HDMI
In port is encrypted with HDCP.
AVMute
HDCP Status
+5V Status
Indicates the status of the following for HDMI or
HDBaseT:
AVMute active/inactive status
HDCP active/inactive status
+5V present/not present status
3.4 Calibrating the LCD
It is recommended that you calibrate the LCD display prior to using the 780C Test Instrument. Use the following
procedures to perform the calibration.
1. From the Home menu, navigate to the Help menu by pressing the Help activation button on the upper

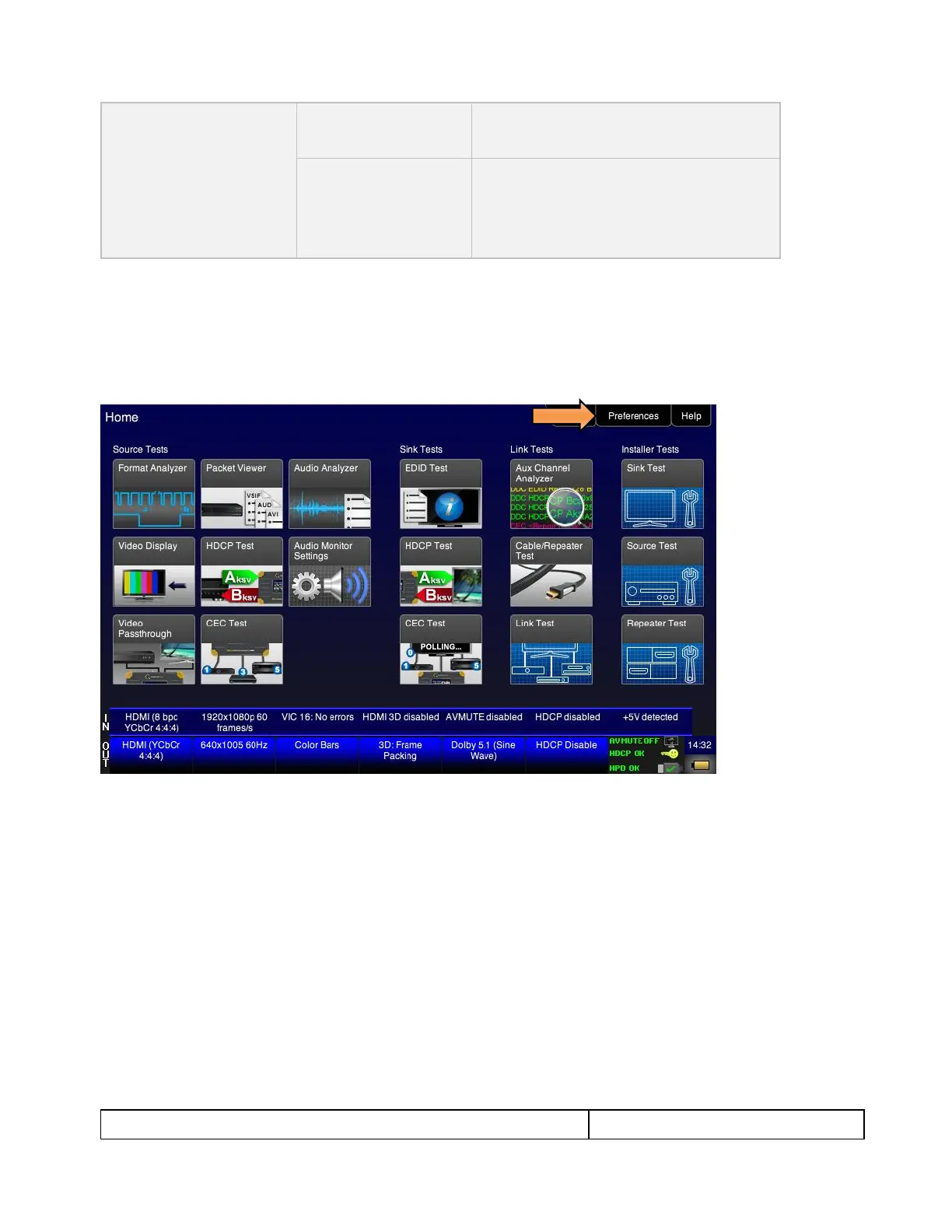

status bar. The Home menu is shown below.
The Help menu appears as shown below:
