Quantum Data 780C User Manual

780C Multi-Interface Interoperability Tester – User Guide Page 143
September 29, 2014
Revision A1
7.3 Diagnosing HDMI/HDBaseT Interoperability Problems with a Repeater
This subsection describes how to diagnose HDMI/HDBaseT interoperability problems related to an
HDMI/HDBaseT repeater device (Repeater Test).
7.3.1 Connection Configurations for Testing HDMI Repeater Devices

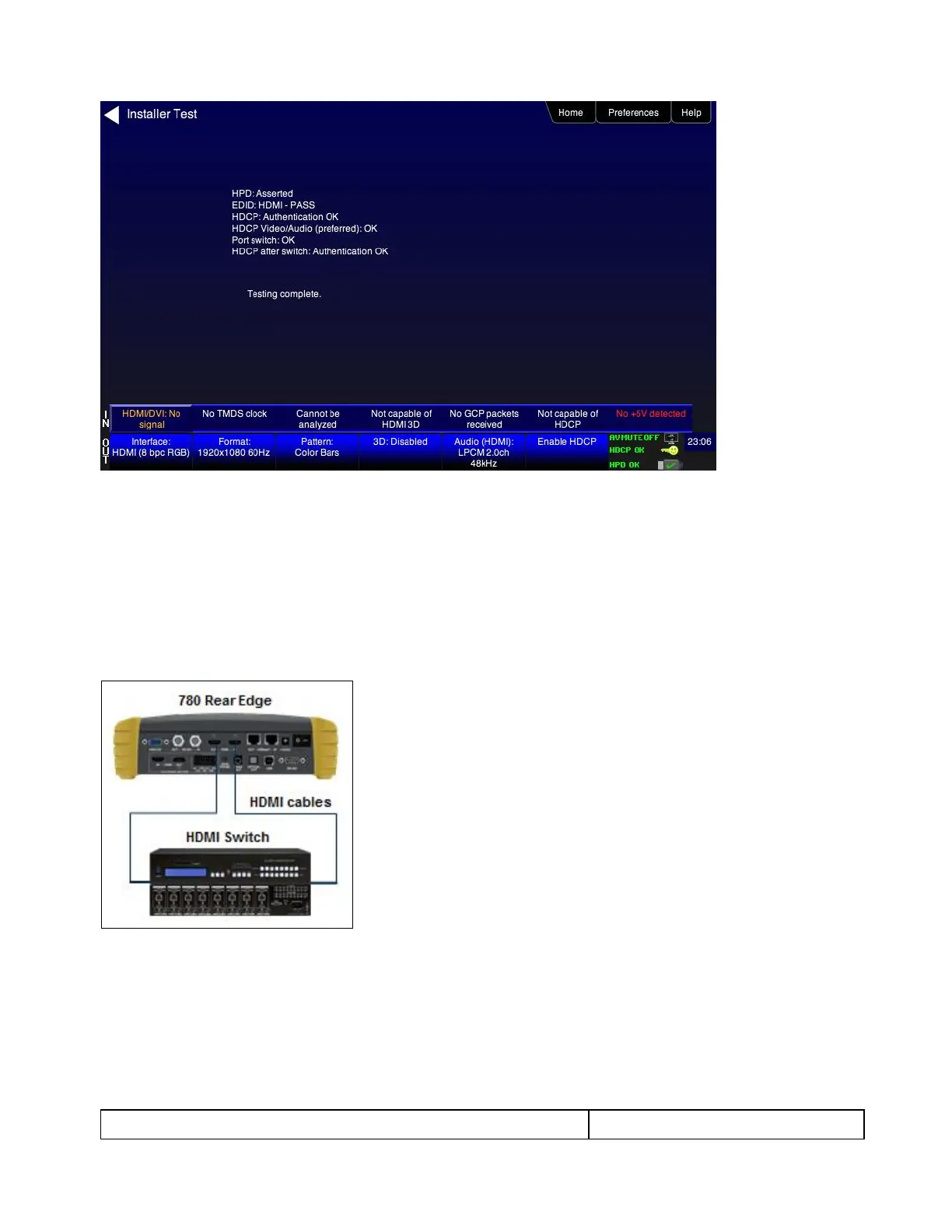

The 780C’s HDMI input port acts as a “reference” HDMI source and sink device simultaneously. Therefore it
enables you to emulate both a known good HDMI source and sink device to conduct diagnostics on a repeater
device. The following illustration shows the typical configuration.
7.3.2 Connection Configurations for Testing HDBaseT Repeater Devices
The 780C’s HDBaseT input port acts as a “reference” HDBaseT source and sink device simultaneously.
Therefore it enables you to emulate both a known good HDBaseT source and sink device to conduct
diagnostics on a repeater device. The following illustration shows the typical configuration.
