780C Multi-Interface Interoperability Tester – User Guide Page 22

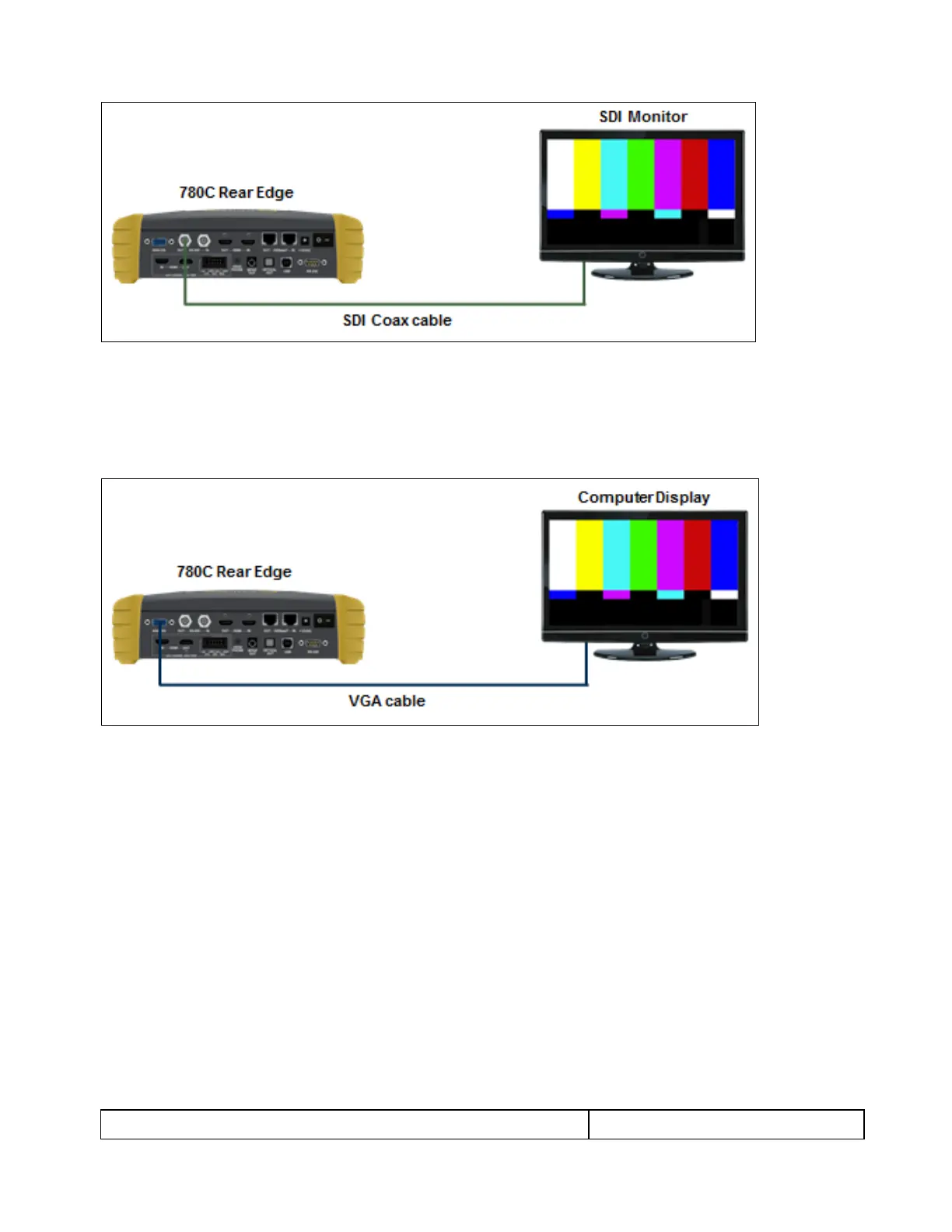

4.1.4 Connecting the 780C to the Display Device - Analog
Use the following procedures to make the physical connections from the 780C to the display device under test.
1. Make the cable connection between the appropriate the 780C video VGA output connector and the input
connector of the HDTV or computer monitor using the cables supplied.
4.2 Selecting a Signal Type and Resolution
After making the physical connections between the 780C and the display device under test you will need to
select the signal type, Resolution and Frame Rate for the sink device under test.
4.2.1 Procedures for Selecting a Signal Type
The procedures below describe how to select the active signal type.
1. Power up the 780C using the rocker switch on the back panel.
2. Touch select the Signal Type activation button on the OUT Status Bar (see screen example below).
